Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 1‐2
RADWIN5000Overview Introduction
1.3RADWIN5000Overview
1.3.1Sector
TheRADWIN5000systemconsistsofa“sector”thatincludesabasestation,andatleastone
subscriberunit.Thesubscriberunitsareinstalledandworkoppositethebasestations.

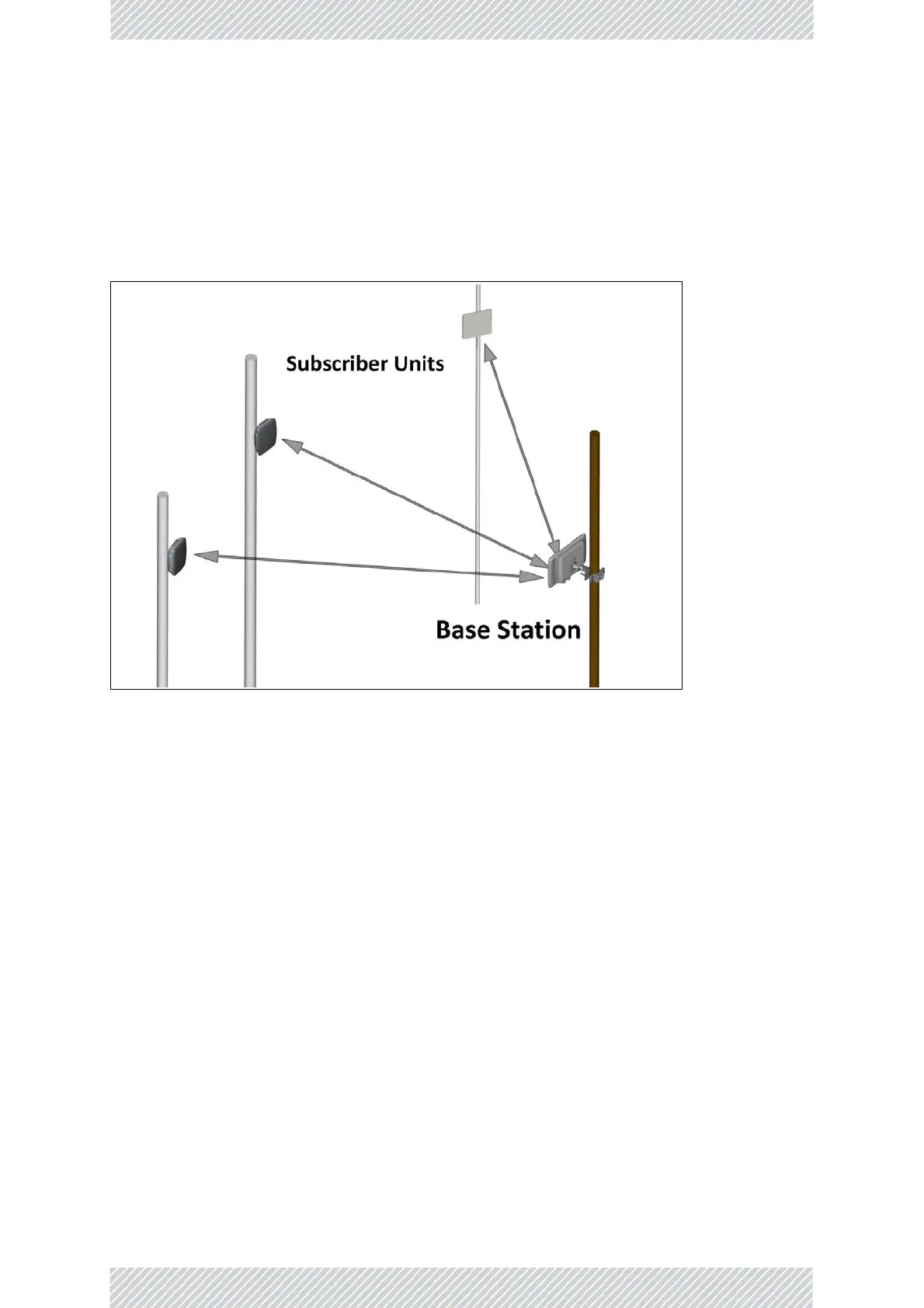

Figure1‐1:ARADWIN5000Sector
1.3.2BaseStation
Therearetwotypesofbasestations,bothofwhichareHighCapacityBa seStations(HBS):
1.3.3SubscriberUnit
TherearetwotypesofRADWIN5000subscriberunits:
HighCapacitySubscri berUnit(HSU)
AnHSUcanhaveoneofthefollowingresourceallocations:
• CIR‐CommittedInformationRa te:receivesaguaranteedpercentageof
resources
• BE‐BestEffort:receivesresourcesaccordingtoavailability
Inaddition,anHSUcanhaveoneofthefollowingformfactors:
•LargeFormFactor(LFF)‐Withanintegrate dorexternalantenna
• Beamforming(JET)‐Withanintegratedantenna
•LargeFormFactor(LFF)‐ItsexternalappearanceissimilartoaLargeFormFactor
HBS,andcanhaveanintegratedorexternalantenna.
