Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 1‐3
MethodofWork Introduction
SUPRO/AIR
• SUPRO‐CanoperateusingtheCIRorBEresourcetype
1.3.4MethodofWork
Boththebasestationsandthesubscriberunitscommunicaterespectively,withtheservice
providerandusersthroughPoEdevices.Thecommunicationprotocolforboththeservice
providerandtheusersisEthernet.
1.3.5SectorManagementTools

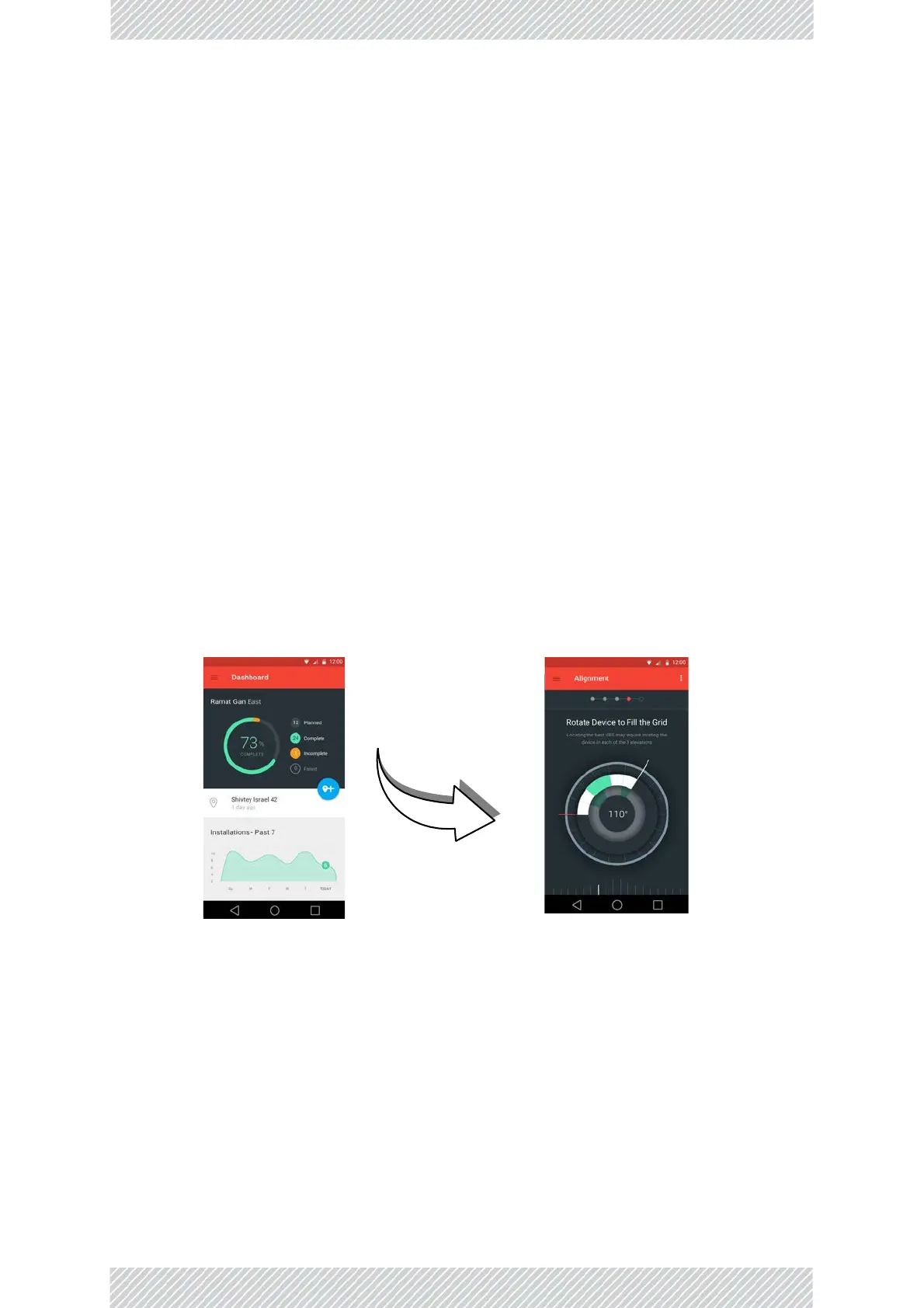

WINTouch
WINTouchisamobileapplicationthatguidesyouininstallingandaligningSUPRO/AIR
devices,aswellasbasestationsthatworkwiththem.
RADWINWebInterface
TheWebInterfaceenablesyoutocarryoutbasicunitand/orsectormanagementfunctions
usingaWebbrowser.Itisaneasywaytorapidlyconfigureandsetupalink.
Itmaybeusedto‐
• Setorchangebasicradiounitparametersinthefield
• Establishasectoronaminimalbasis
• Checklinkparametersandmakebasicchanges
• ViewthelinkInventory
• InspecttheRecentEventslogs
•SmallFormFactor(SFF)‐Asitsnameimplies,thisunitissmallerthananLFFunit,
butcanalsohaveanintegratedorexternalantenna.
• SUAIR‐OperatesusingtheBEresourcetypeonly.
• Usesasmallerform‐factorthanthatoftheHBSorHSU.
• Canuseanintegratedantenna,theTurboGainantennaoraseparate,non‐inte‐
grated,externalantenna.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
