RADWIN5000ConfigurationGuide Release4.9.17 7‐9
PerformanceMonitoring MonitoringandDiagnostics
Theleftbuttonmaybeusedtosavethereporttoafi le.
7.6PerformanceMonitoring
RADWIN5000HPMPPerformanceMonitoringconstantlymonitorstrafficovertheradiolink
andcollectsstatisticsdatafortheairinterfaceandEthernetports.Itdoessocontinuously,
evenwhentheRADWINManagerisnotconnected.

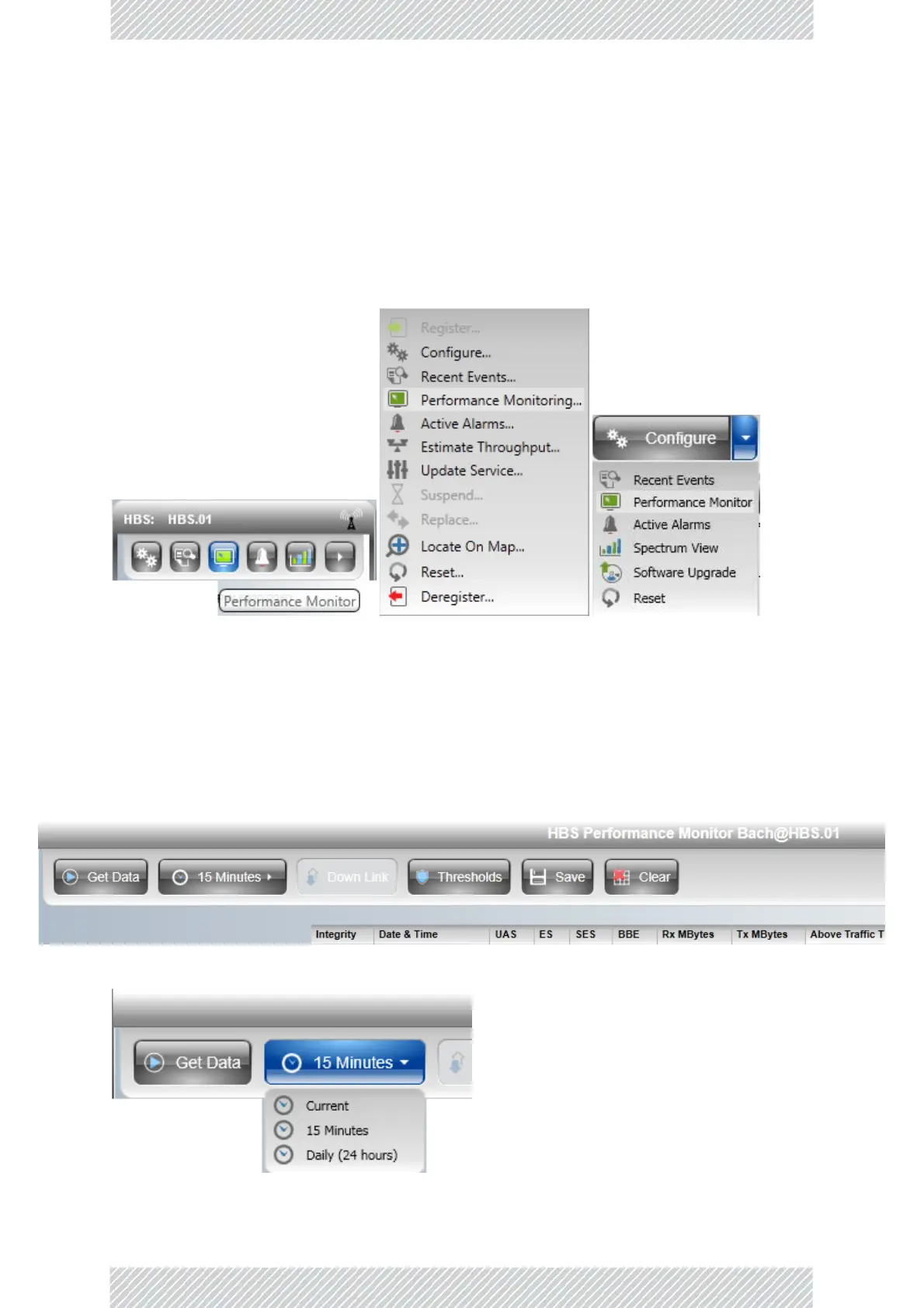

Figure7‐6:PerformanceMonitoring:L.toR.‐HBS,HSUfromHBS,HSU
Theon‐screenandgeneratedreportshavethesamegeneralformats,butthereare
differencesinwhatisreported.
7.6.1HBS
TheHBSPerformanceMonitoringwindowoffersthefollowingbuttonmenu:
Choosethedataperiodrequiredwiththe15Minutesbutton.
•Currentgivesyouthelatestentry.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
