RADWIN5000ConfigurationGuide Release4.9.17 10‐7
EnablingVoIPfromanHSU QualityofService
10.5.2EnablingVoIPfromanHSU
Youcanenable(ordisable)VoIPpereachHSU.
1. RightclickanHSUintheHBSmanagerHSUwindow(HSUmustberegistered),and
chooseConfigure.

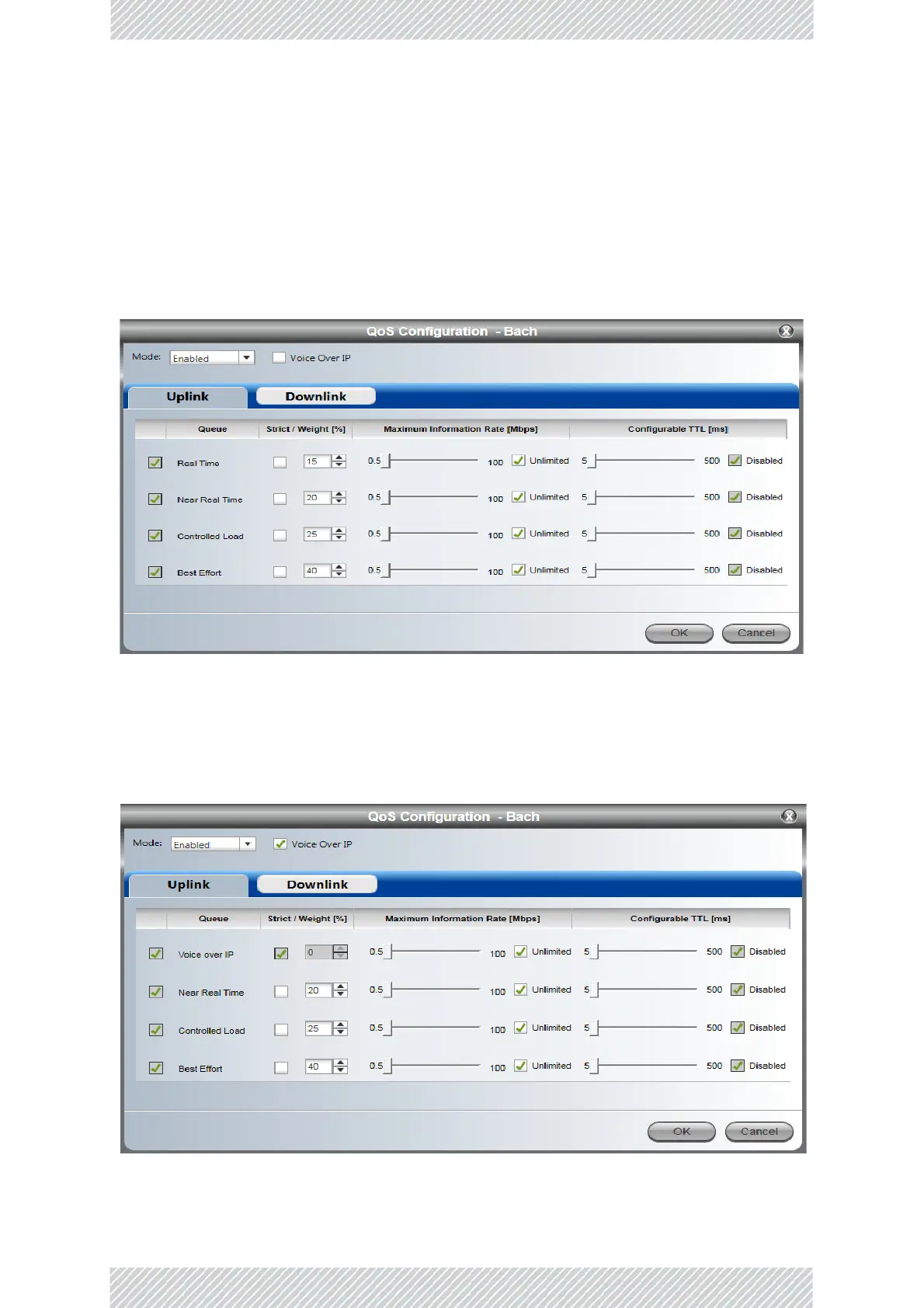

2. OpentheEthernettabandclickQoSConfiguration.Thefollowingwindowis
displayed:
5. ClickVoiceOverIP(un‐clickitifyouwanttodisableVoIPforthisunit).TheReal
TimequeuewillchangetoVoiceoverIPanditscheckboxwillbecomegrayed.This
meansthatVoIPtrafficistreatedinasimilarfashiontoRealTimetraffic.VoIP
workswhetheryouareusingVLANorDiffServ,butyoumustbeconsistentwith
thisQoSmodethroughoutthedatastream.
6. ClickOK.VoIPwillbecomeenabledforboththeUplinkandDownlinkdirections.
