Ethernet ManagingtheSector
Noticeafterthechange,redbarsappear.TheseshowthemaximumMIRyoujustset,forboth
theDownLinkandUpLinkdirections.Theverticalredlinesintheafterfigureindicatethe
upperlimitonthebluethroughputbars.
HadyousettheMIRtobemorethanthemaximum(inthiscase24.1and24.5)or
“unlimited”,theredbarsandredverticallineswouldnothaveappeared.
VLANConfiguration
ForTrafficVLANconfiguration,seeChapter9.
QoSConfiguration
QoSconfigurationisdescribedinChapter10.
Beforechange Afterchange

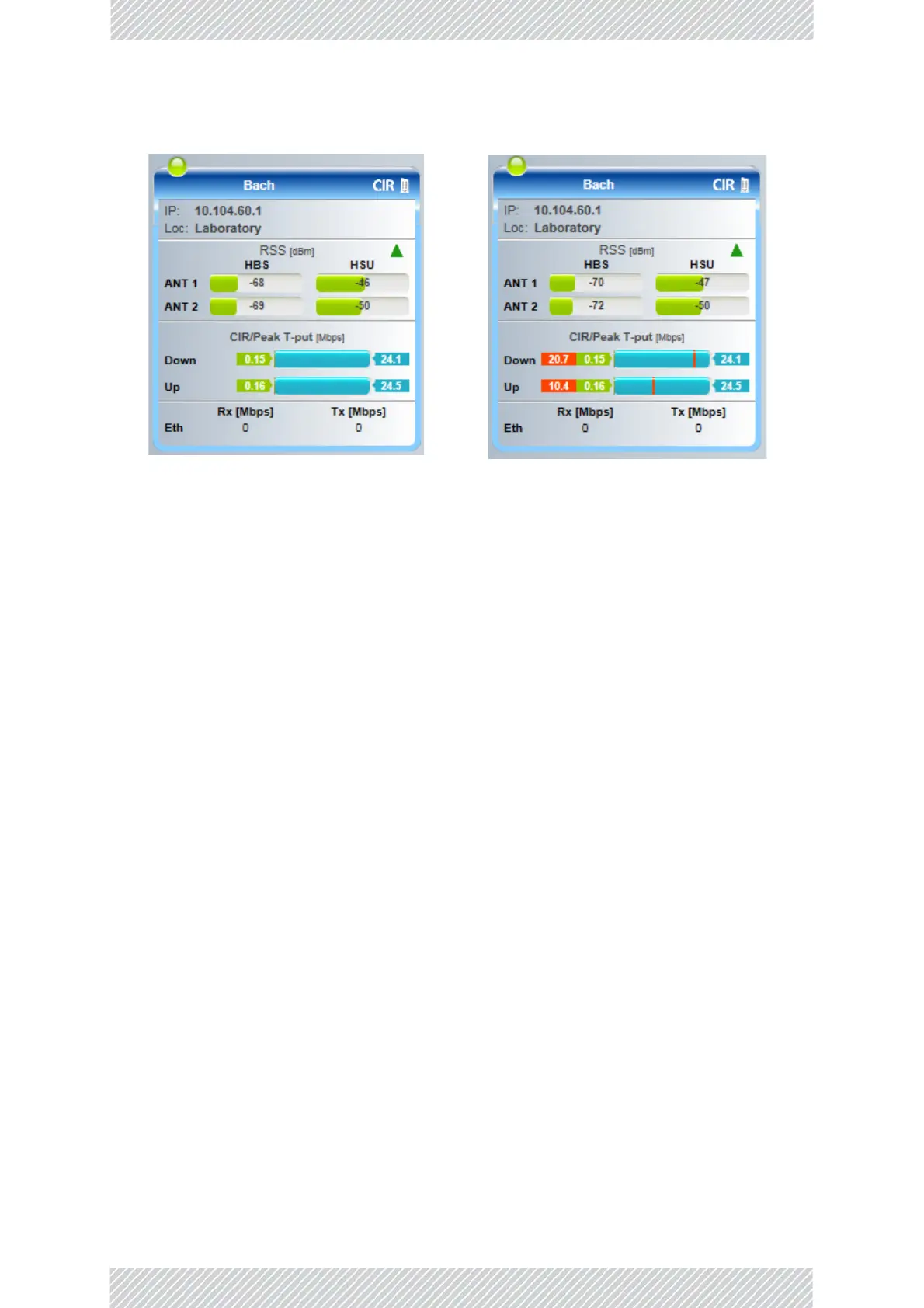

Figure4‐28:HSUcarddisplaywhenchangingMIR

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
