Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 4‐61
ReplacinganHSU ManagingtheSector
Sincethereplacementprocedureisaratherdelicateprocess,wewi ll stepthroughitwitha
detailedexample.
 ToreplaceadefectiveHSU:

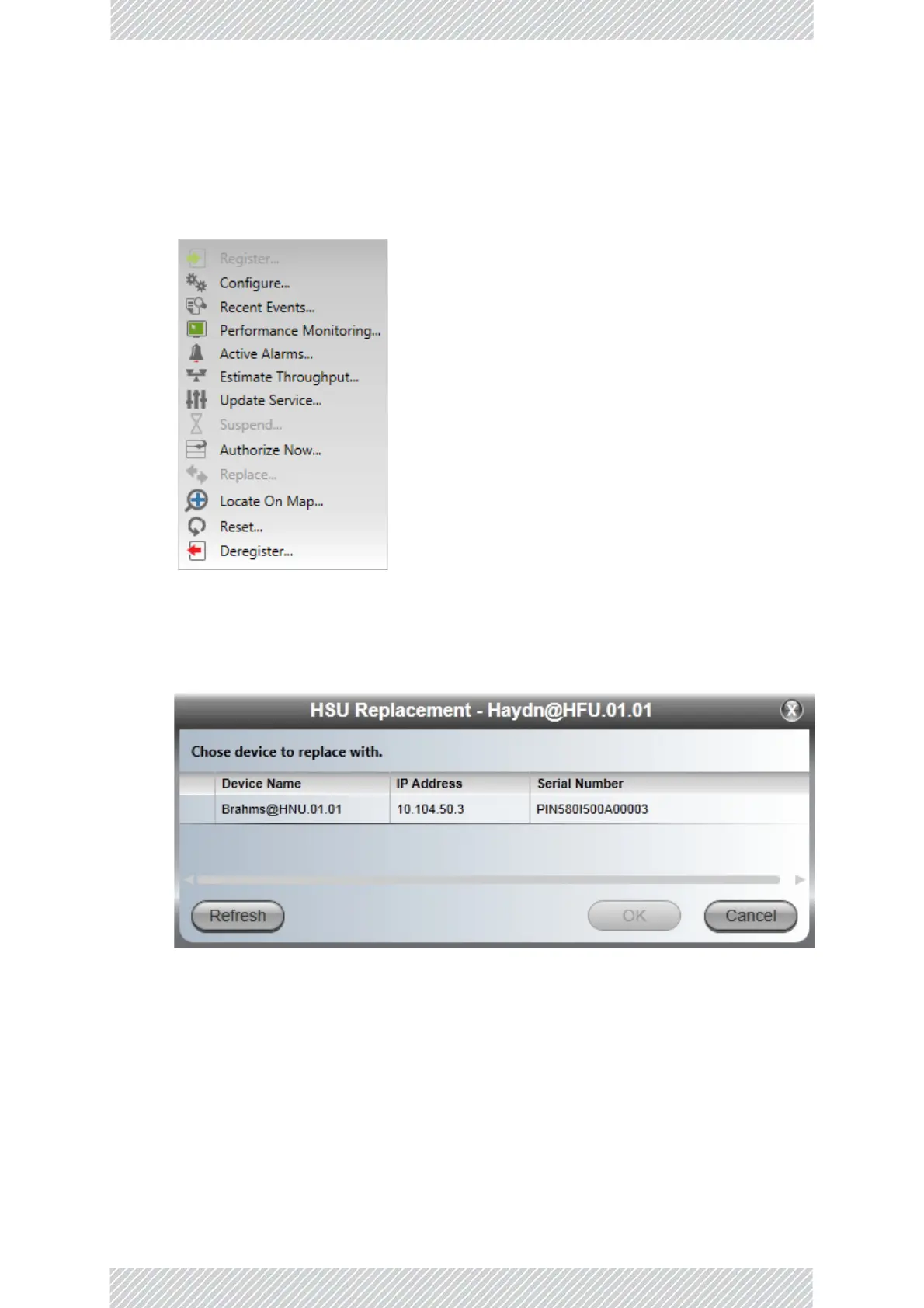

1. Rightclickthedefectiveunitforitscontextmenu:
2. ClickReplace.YouareofferedalistofHSUsavailableasreplacements.Inour
examplethereisone:10.104.50.3
3. Selecttherequiredunitbyclickingonit.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
