RADWIN5000ConfigurationGuide Release4.9.17 6‐2
Overview DirectHSUConfiguration

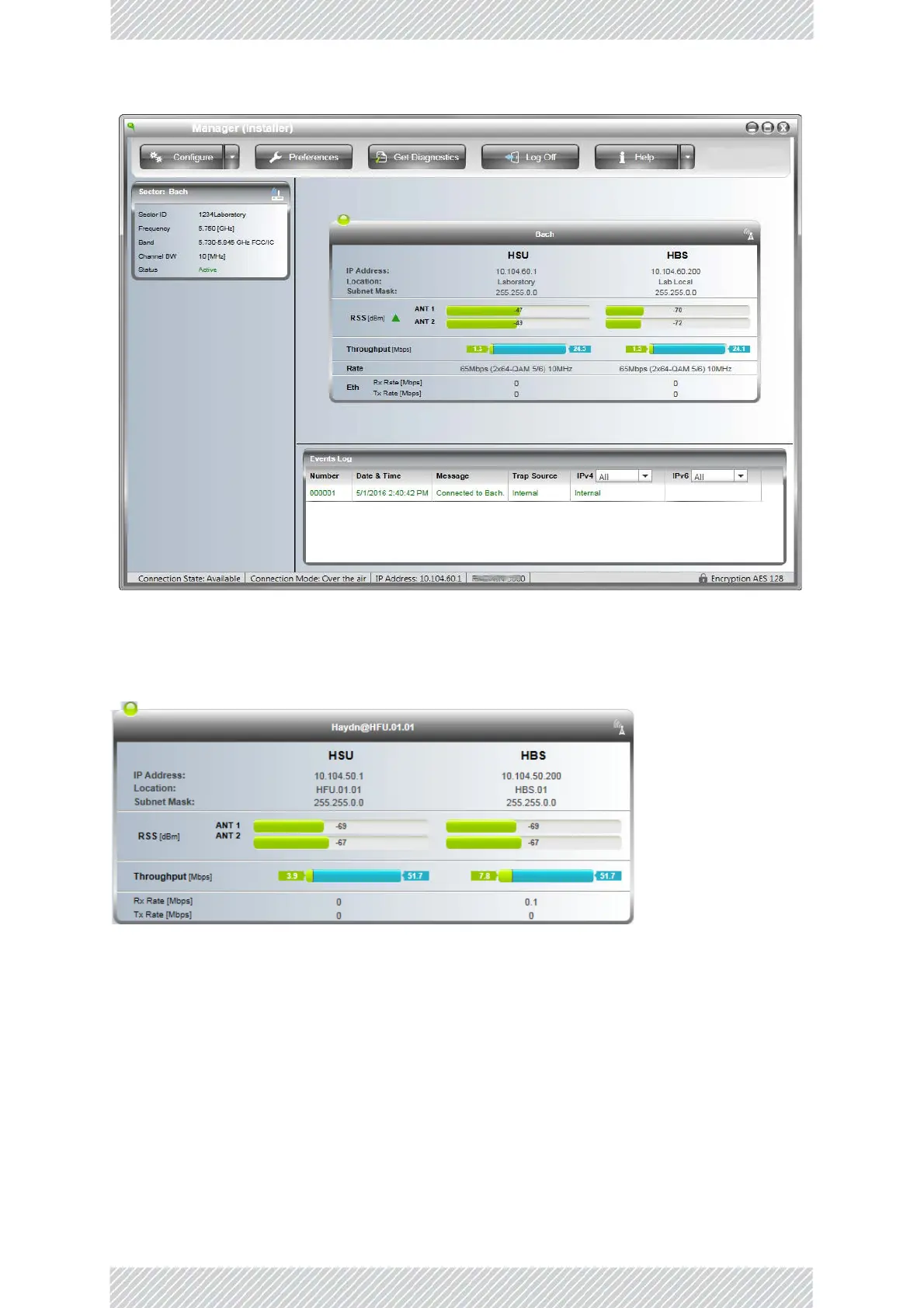

Figure6‐1:DirectorovertheairconnectiontoaregisteredHSU
IfyouenabledRSSExtendedView(seeEnableRSSExtendedView),thecenterpartofthe
displaylookslikethis:
Figure6‐2:RegisteredHSU‐extendedview
ForanunregisteredHSU,thethroughput(T‐put)fieldsandtheSectorIDfieldwillbeempty.
IftheHBSisdeactivated,ortheHSUisstand‐aloneyouwillseeadisplaylikethis:
