RADWIN5000ConfigurationGuide Release4.9.17 3‐4
TheInitialRADWINManagerMainWindow InstallingaSector

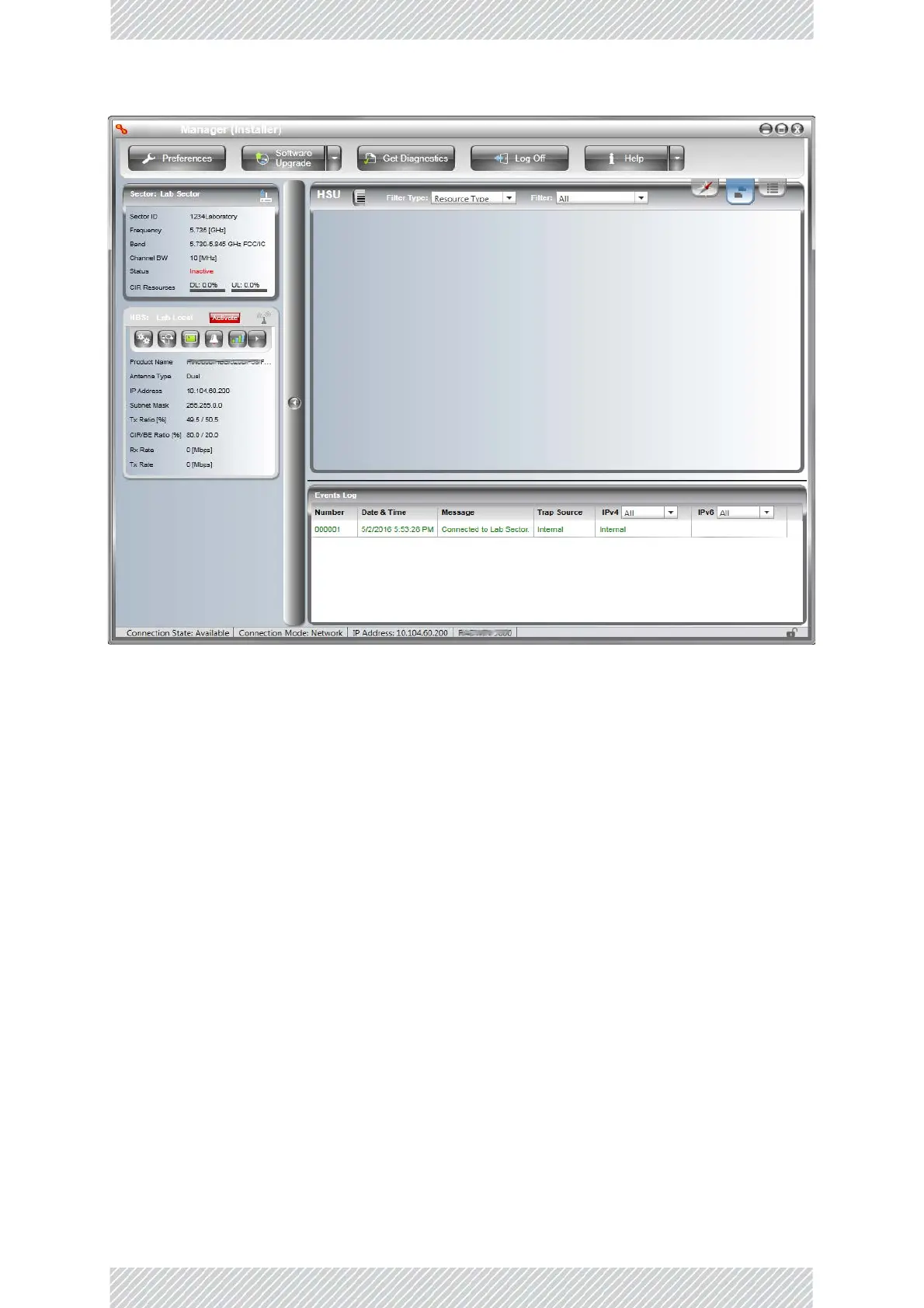

Figure3‐1:Mainwindowforun‐configuredHBSODU
Noticetheredicononthetopleftcornerofthe window.Itwillchangetogreenassoonas
theHBSisconfiguredandactivated.Hereisthework‐flow:
1. ActivatetheHBSwhichincludessettingitsIPaddress.Itwillthen“see”thedeployedHSUs
regardlessoftheirIPaddress.
2. ConfiguretheHSUs
3. RegistertheHSUstotheHBSfortraffic
4. CompleteHSUconfigurationincluding HSUConnectionTableandanyotherrequiredfine
tuning.
