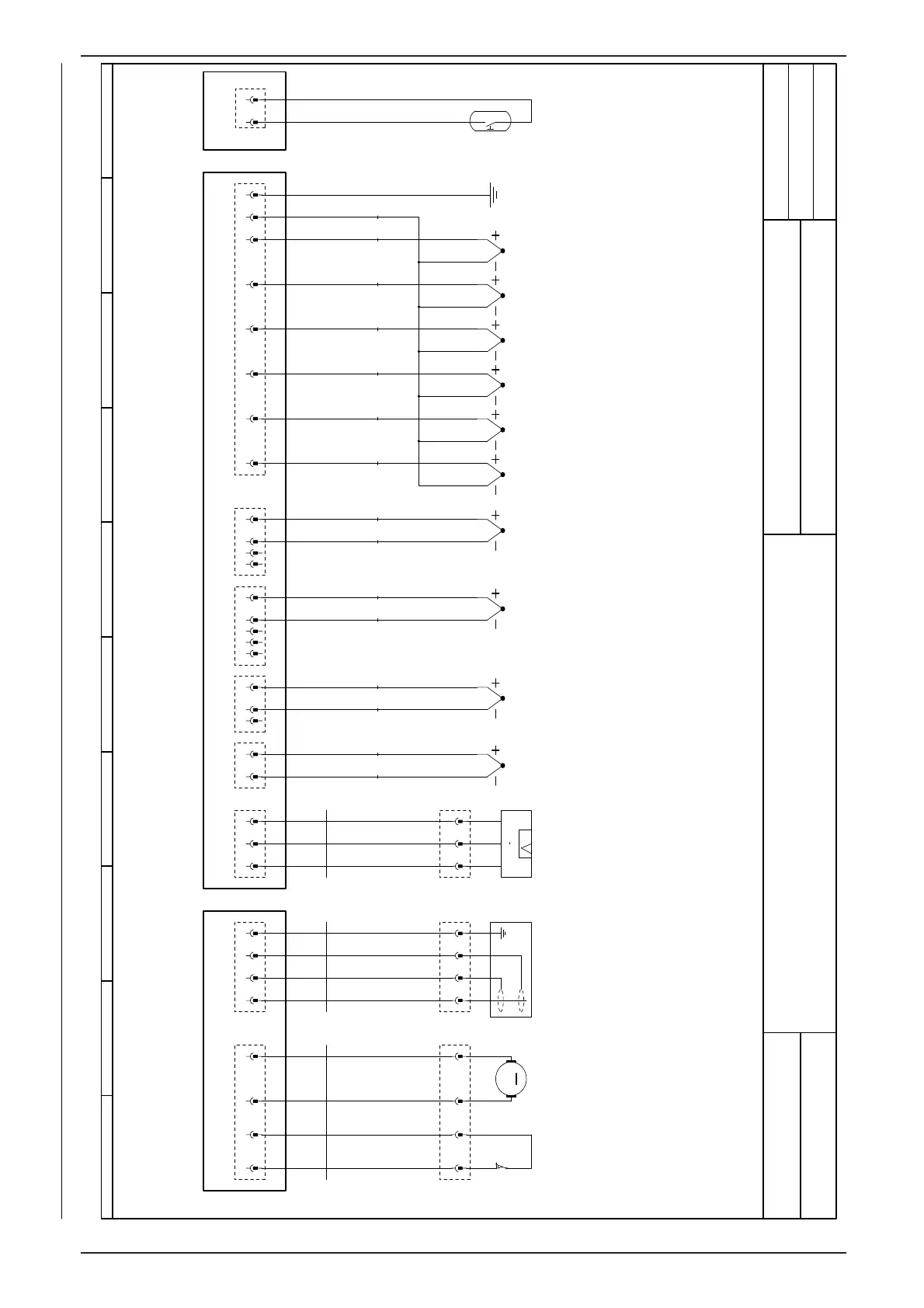

MODUL 3 Klima Plus, Fühler
Humidity control, Sensors
Erstellt von Created by Datum Date Blatt Page
PA
3
30.04.2004
A2
Operator PCB
W8
WH WH WH WH
X11
11
X48
1
S4
Endschalter Klappenmotor
End position switch ap motor
22 2
33
3
M3
Klappenmotor
Flap motor
M
+-
44
4
S2
Niveauelektrode
Water level sensor
W5
GY
WH WH
YE/GN
X12
11
X32
22
22 11
33
33
44 44
A3
CPU .
W7
GY GY GY
P1
Dierenzdrucksensor
Dierential pressure sensor
P
Signal
IN
GND
X1
11
X29
11
22
22
33 33
B1
Thermoelement Garraum
Thermocouple cooking cabinet
X3
22
WH
11
GN
X4
33
B2
Thermoelement Ablöschung
Thermocouple quenching system
22
WH
11
GN
X5
55 44 33
B4
Thermoelement Feuchte
Thermocouple humidity
22
WH
11
GN
X6
44 33
B5
Thermoelement Dampfgenerator
Thermocouple steam generator
22
WH
11
GN
Thermoelement Kerntemperatur
Thermocouple core temperature
B6
Fühler 2
Sensor 2
Fühler 1
Sensor 1
Fühler 3
Sensor 3
Fühler 4
Sensor 4
Fühler 5
Sensor 5
Fühler 6
Sensor 6
X2
11
GY
22
RD
33
GN
44
BU
55
BN
66
BK
77
WH
A1
I/O-PCB
S3
Türkontaktschalter
Door contact switch
X27
11 22
