Service level: SE -- Basic settings

Adjustment of installation altitude above sea level (since SW C1-06-05) -

500m - 4500m

Press time key, keep it pressed and select installaton altitude in 500m steps by timer

dial. Con rm altitude setting by pressing simultaneously core temperature key once

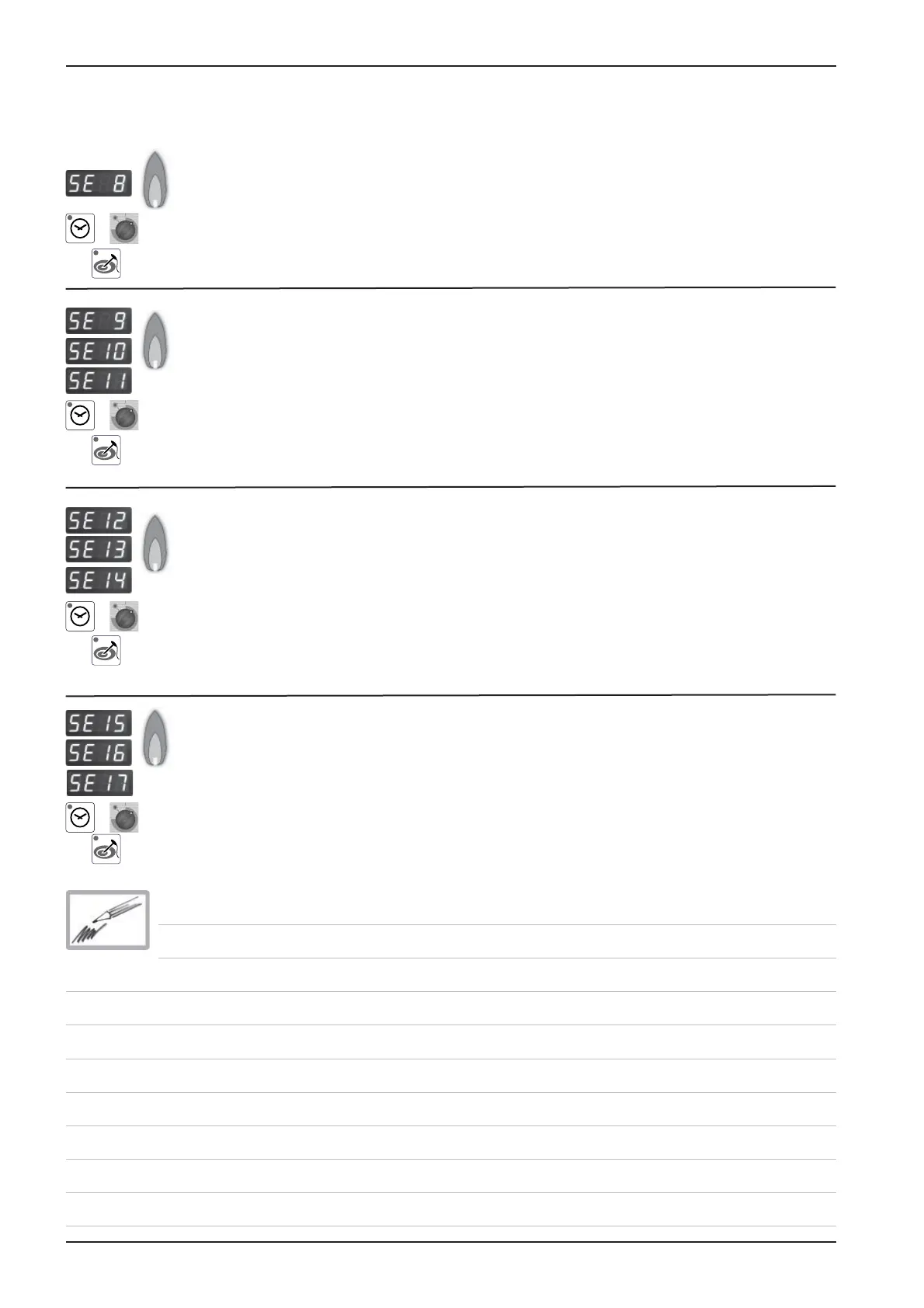

Adjusting speed of blower motor steam (+/ -10%)

(After blower speed adjustment the original rpm is shown in the temp. display, the

changed rpm is shown in the time display)

Press time key, keep it pressed and adjust displayed rpm with timer dial

SE9 = MIN rpm; SE10 = Start rpm; SE11 = MAX rpm

NOTE: After changing speed of blower motor a waste gas analysis MUST be carried

out in the function test.

Adjusting speed of blower motor hot air top (+/ -10%)

(After blower speed adjustment the original rpm is shown in the temp. display, the

changed rpm is shown in the time display)

Press time key, keep it pressed and adjust displayed rpm with timer dial

SE12 = MIN rpm; SE13 = Start rpm; SE14 = MAX rpm

NOTE: After changing speed of blower motor a waste gas analysis MUST be carried

out in the function test.

Adjusting speed of blower motor hot air bottom (+/ -10%)

(After blower speed adjustment the original rpm is shown in the temp. display, the

changed rpm is shown in the time display)

Press time key, keep it pressed and adjust displayed rpm with timer dial

SE15 = MIN rpm; SE16 = Start rpm; SE17 = MAX rpm

NOTE: After changing speed of blower motor a waste gas analysis MUST be carried

out in the function test.
