RED RAVEN OPERATION GUIDE

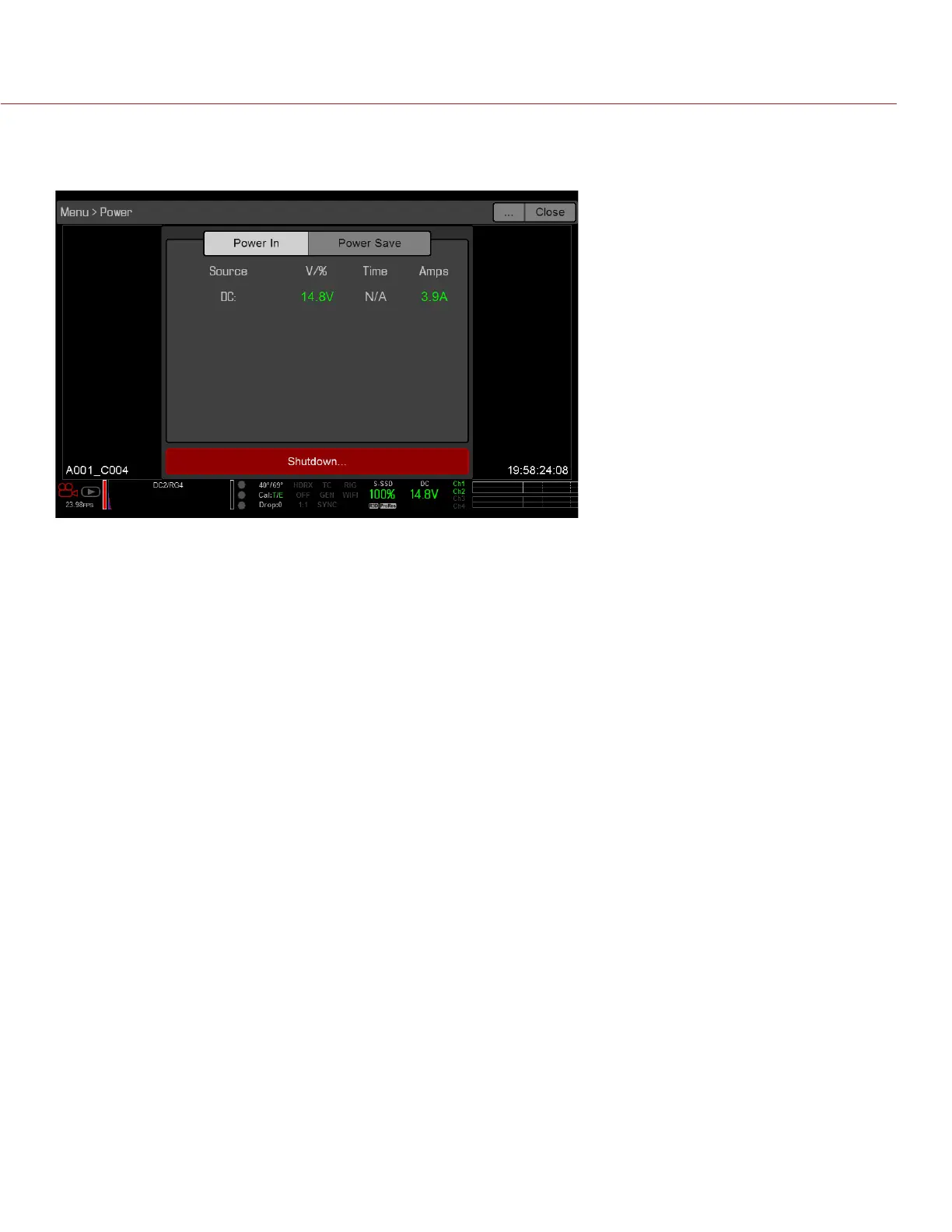

POWER MENU

The Power menu displays the power status of all attached power sources and allows you to turn off the camera.

NOTE: For more information about powering the camera, see the DSMC Power Operation Guide, available at

www.red.com/downloads.

POWER IN

The power status displays for all attached power devices. The menu displays the voltage of the source or the

relative percentage of the power left, as well as the time left, if applicable.

POWER OUT

The Power Out menu shows the status of the power out ports on attached devices. The statuses are:

 N/A: The device is not present.

 OK: The power out port is functional.

 FAULT: A short or overcurrent tripped the electronic fuse. Remove the device that is connected to the

module, as it may be drawing too much power. Select RESET to clear the fault.

When the DSMC2 REDVOLT Expander is attached, you can see the current output of each power out port (in

amps), and toggle those ports on/off.
