RED RAVEN OPERATION GUIDE
COPYRIGHT © 2016 RED.COM, INC 955-0127_V6.3, REV-E | 57

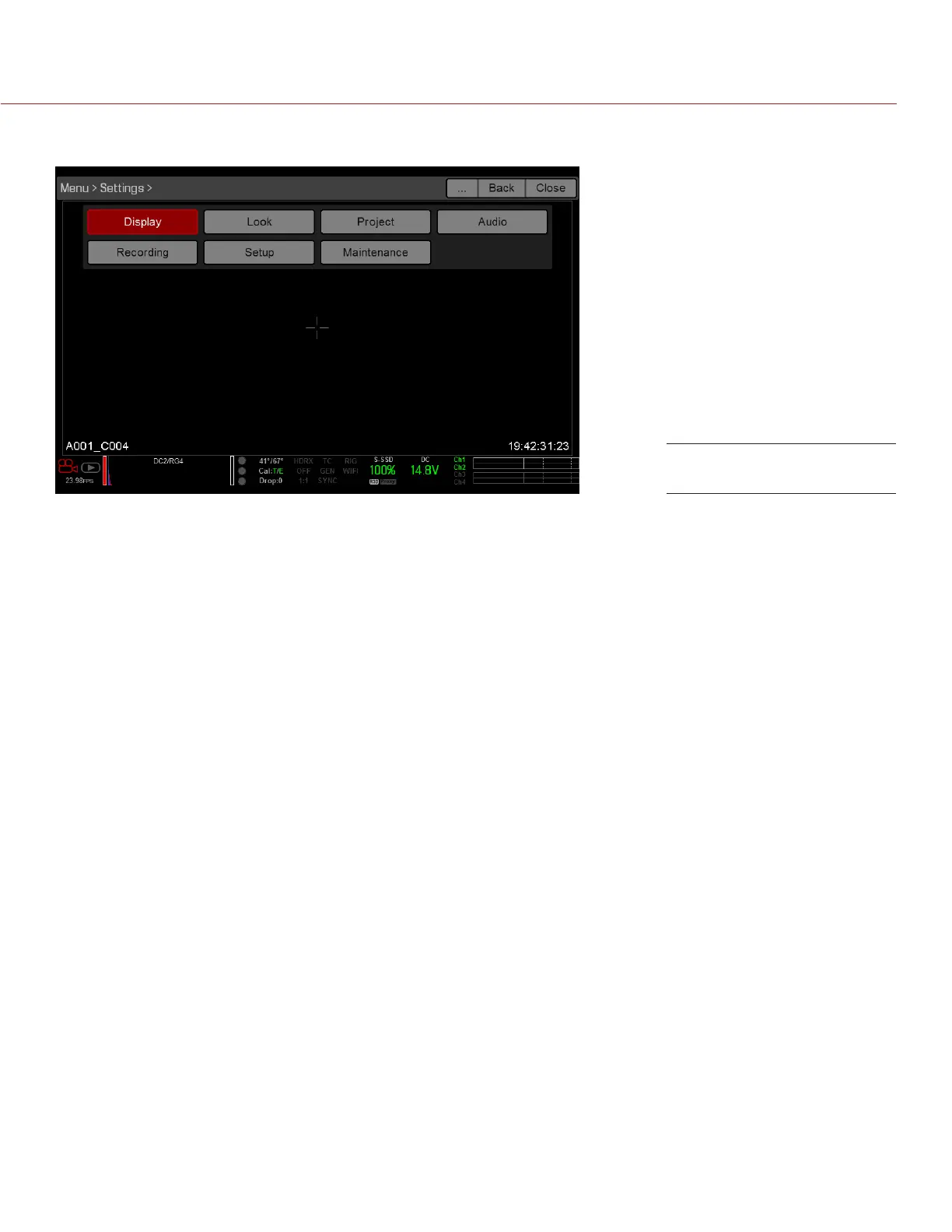

SETTINGS MENU
The Settings menu includes: Display, Look, Project, Audio, Recording, Setup, and Maintenance.
DISPLAY
The Display menu includes: Tools, Zebra, Monitor Control, Modes, Guides, and Test Signal.
TOOLS
The Tools menu provides access to false color and display modes.
For more information, see the Exposure with RED Cameras: False Color & Zebra Tools article, available at www.
red.com/learn/red-101/exposure-false-color-zebra-tools.
FALSE COLOR MODES
False color modes include: Off, Exposure, Video, Focus, Edge, and Gio Scope.
NOTE: Only monitors with the Tools check box selected in the Monitor Control menu show the false colors. For
more information, go to “Monitor Control” on page 60.
NOTE: False color modes affect video recorded through HDMI
®
or HD-SDI to an external recorder if the Tools
check box is selected in the Monitor Control menu. When recording through HDMI or HD-SDI, use false color
modes only to help configure project settings, and then disable the mode before recording.
OFF
Disables all false color modes.
EXPOSURE
Displays color overlay on top of a desaturated image that allows you to check for proper exposure. When
enabled, the “E√” indicator displays in the Lower Status Row.
The Exposure meter colors indicate the following information:
Purple: Underexposed; indicates sensor exposure levels that may be noisy if gained up in post production.
Green: IRE 41–48; based on the RGB levels of the video out signal and not the RAW data.
Red: Overexposed; indicates sensor exposure levels that are clipping.
Purple (underexposure) and red (overexposure) are based on RAW data and show areas that are clipping or
close to clipping. The RGB settings (settings in the Look menu) DO NOT affect the Exposure indicators.
