RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 40

This chapter describes the Basic Menus and controls, including:

 “Upper Status Row (Basic Menu)” on page 41

 “Live Action Area” on page 45

 “Lower Status Row” on page 46

 “Navigation Controls” on page 51

GUI MENU INTRODUCTION

This section describes the structure and layout of the graphical user interface (GUI) that overlays the video

monitor signal. Advanced GUI menu controls enable convenient access to menus, overlays, and other critical

camera information. Functionality varies based on monitor output type and firmware version.

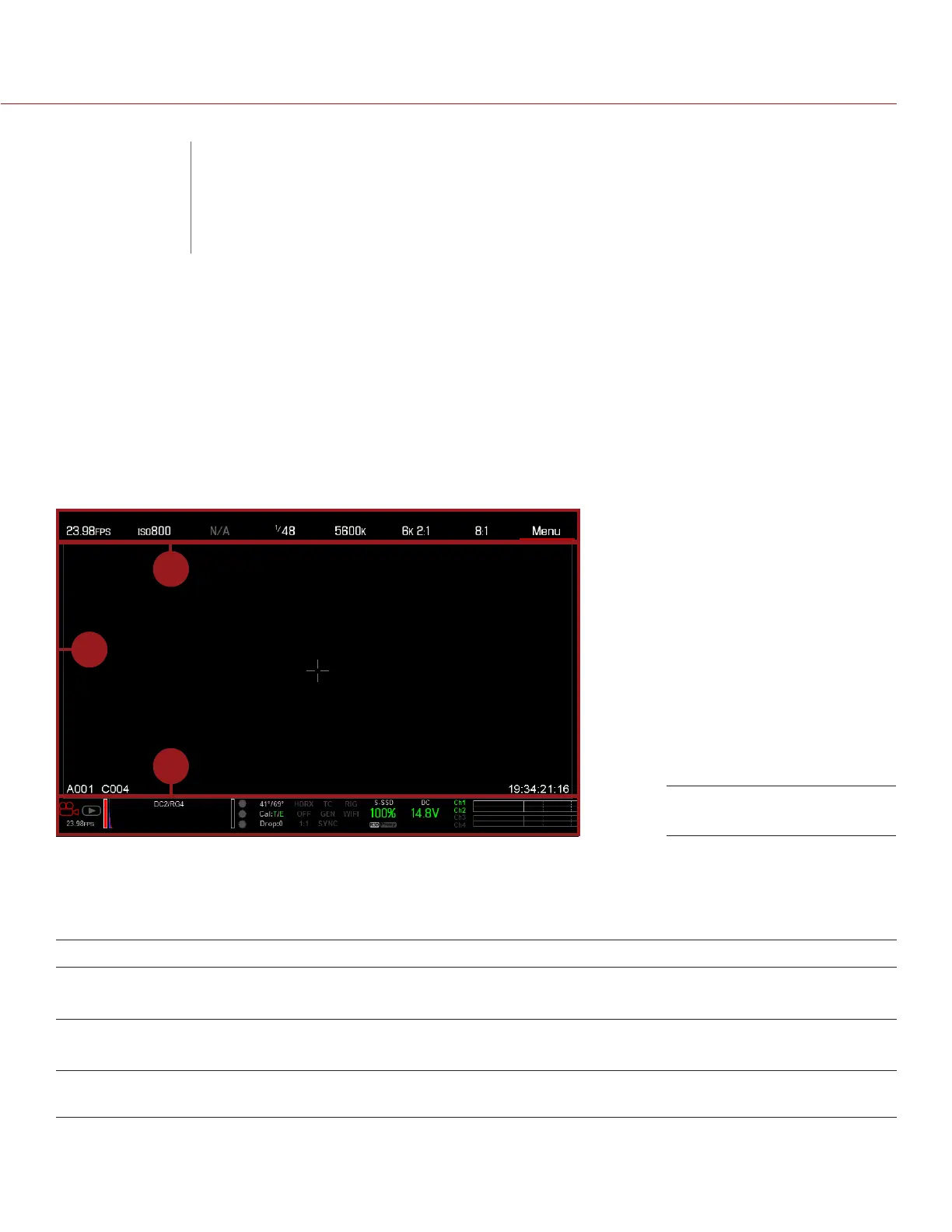

The GUI menu is separated into three (3) main sections:

# ITEM DESCRIPTION

1 Upper Status Row

(Basic Menu)

Easy access to primary camera capture parameters.

Go to “Upper Status Row (Basic Menu)” on page 41.

2 Live Action Area Live camera recording view, overlays, guides, and more.

Go to “Live Action Area” on page 45.

3 Lower Status Row Critical camera parameters, record/playback modes, media and power status,

and audio meter. Go to “Lower Status Row” on page 46.

GUI Control Menu

BASIC MENUS

AND CONTROLS
