COPYRIGHT © 2016 RED.COM, INC
RED RAVEN OPERATION GUIDE
955-0127_V6.3, REV-E | 168

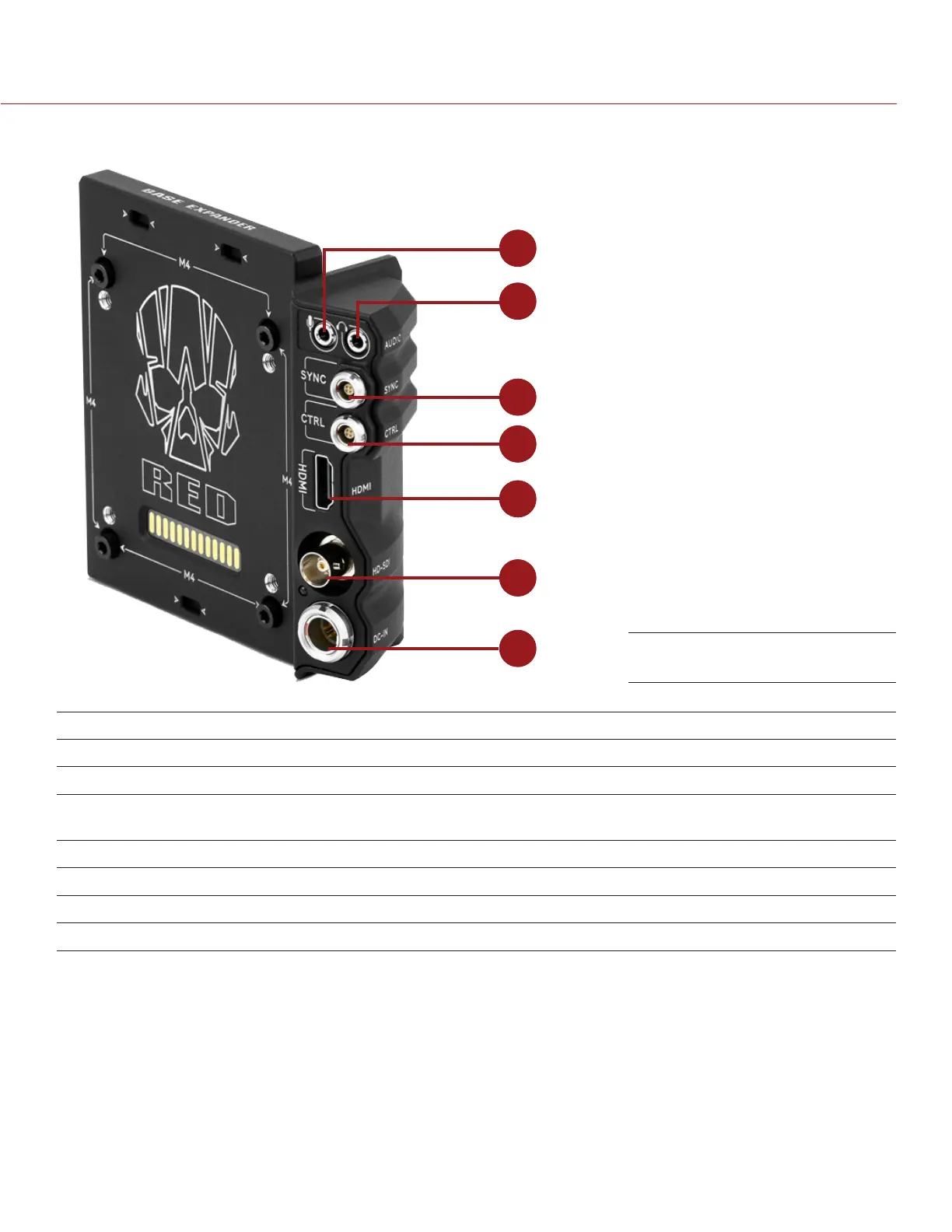

DSMC2 BASE EXPANDER
7
6
5
4
3
2
1
# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 Stereo Microphone 3.5mm stereo “Stereo Microphone” on page 182
2 Headphone Jack 3.5mm stereo “Headphone” on page 183
3 SYNC 4-pin 00B LEMO “SYNC (Video Sync In) with SYNC Trigger Button Circuit” on
page 175
4 CTRL 4-pin 00B LEMO “CTRL (RS232 Control)” on page 178
5 HDMI
®
HDMI 1.2, Type A “HDMI Out” on page 174
6 HD-SDI BNC “3G-SDI (HD-SDI) Out” on page 173
7 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 184
DSMC2 Base Expander
