RED RAVEN OPERATION GUIDE
955-0127_V6.3, REV-E | 184
POWER PORTS
DC IN (POWER INPUT)
The following expanders feature a DC IN connector:
DSMC2 Base Expander
DSMC2 V-Lock I/O Expander
DSMC2 Jetpack Expander
DSMC2 Jetpack-SDI Expander
DSMC2 REDVOLT Expander
The 6-pin 1B LEMO connector accepts DC input power from 11.5 V DC to 17 V DC. A built-in power conditioner
protects against reverse-polarity connections, electrostatic discharge (ESD), undervoltage, overvoltage, and
overcurrent.
WARNING: Both pairs of +VBATT and GROUND pins must be wired. Using a third-party power cable that wires
only one (1) pair of +VBATT and GROUND pins may damage the power supply or the camera. Damage to the
power supply or other components of the camera system caused by using an inappropriate power cable is not
covered under warranty.
3
4
5
6
1
2
6-PIN 1B DC INPUT CONNECTOR
PIN SIGNAL DESCRIPTION
1 +VBATT Power input, +11.5 to +17 V DC
2 +VBATT Power input, +11.5 to +17 V DC
3 SCL-BATT Serial battery bus clock
4 GROUND Power return (camera ground)
5 GROUND Power return (camera ground)
6 SDA-BATT Serial battery bus data
NOTE: Mating connector is FGJ.1B.306.CWLD72Z.
COMPATIBLE CABLES
790-0138: RED 2B-to-1B LEMO Power Adaptor Cable
790-0164: XLR Power Cable (10')
790-0165: XLR Power Cable (30")

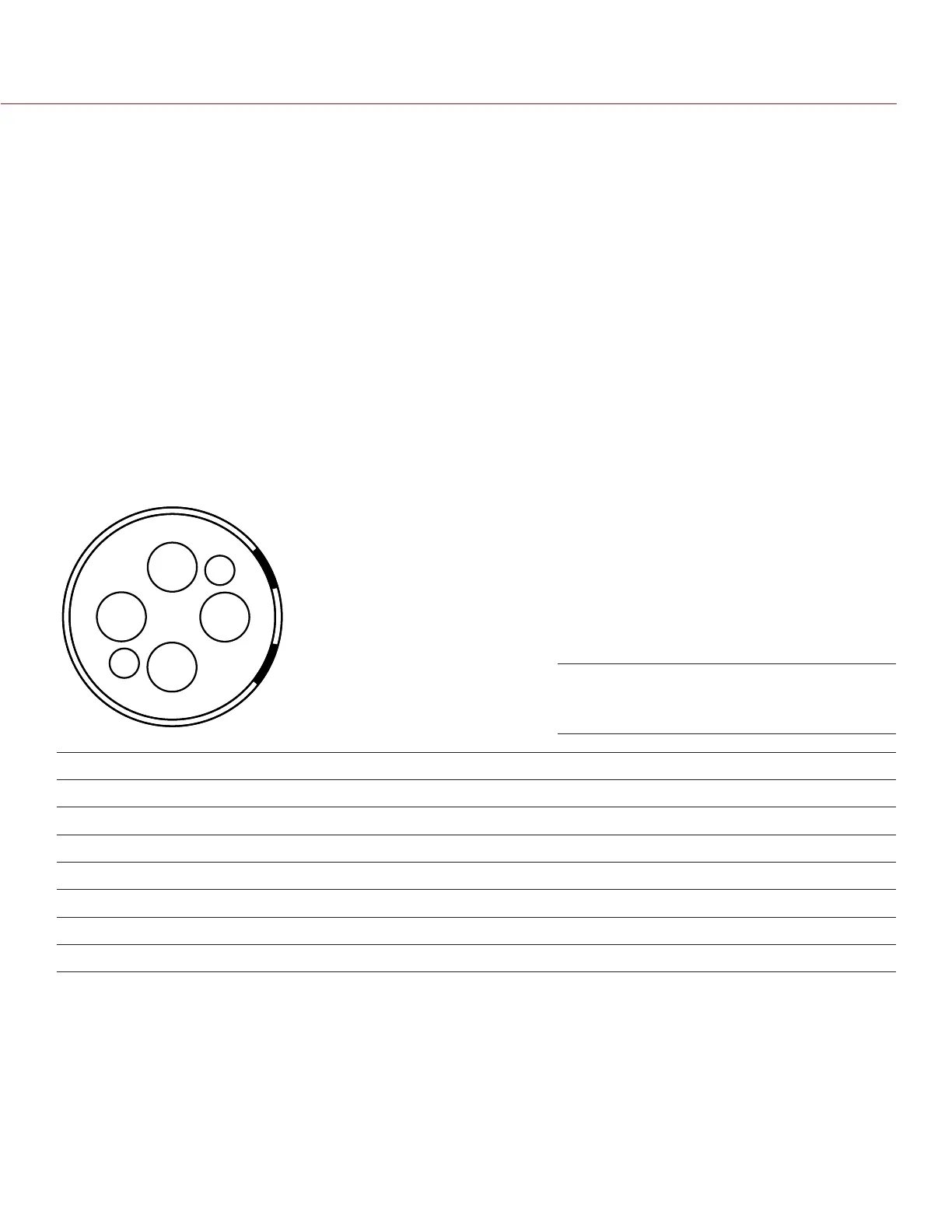

Front Face of the DC In Power Input
Connector (Looking at the Camera)
