MASTER/SLAVE OPERATION
NOTE: Master/Slave operation requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and
DSMC2 Jetpack-SDI Expander. For more information, go to “GIG-E (Ethernet)” on page 181.
This section describes operation in Master/Slave configuration and clip naming conventions for clips recorded
on those cameras. Master/Slave is the most common configuration for Stereo/3D productions.
When cameras are operated in Master/Slave configuration, you can perform the following operations:
Power: Turn off the Master camera to turn off both cameras.
Record: Press the PWR/REC key on the Master camera to start/stop recording on both cameras.
Change settings: Change settings on the Master camera, to change settings on the Slave camera.
NOTE: The Master camera controls metadata and basic camera parameters of the Slave cameras. Any other
setting changes required by the Slave cameras must be made before recording.
For a Master/Slave configuration to function, the cameras must have the same:
Firmware version
Project time base
Recording frame rate
BRAIN
Sensor
SET UP MASTER/SLAVE OPERATION
NOTE: Master/Slave operation requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and
DSMC2 Jetpack-SDI Expander. For more information, go to “GIG-E (Ethernet)” on page 181.
1. Connect the cameras using the Master/Slave Gig-E Cable:
‒ Connect the GIG-E port on one expander to the GIG-E port on the other expander.
2. On the Master camera, follow the instructions below:
A. Go to Menu > Settings > Setup > Communication.

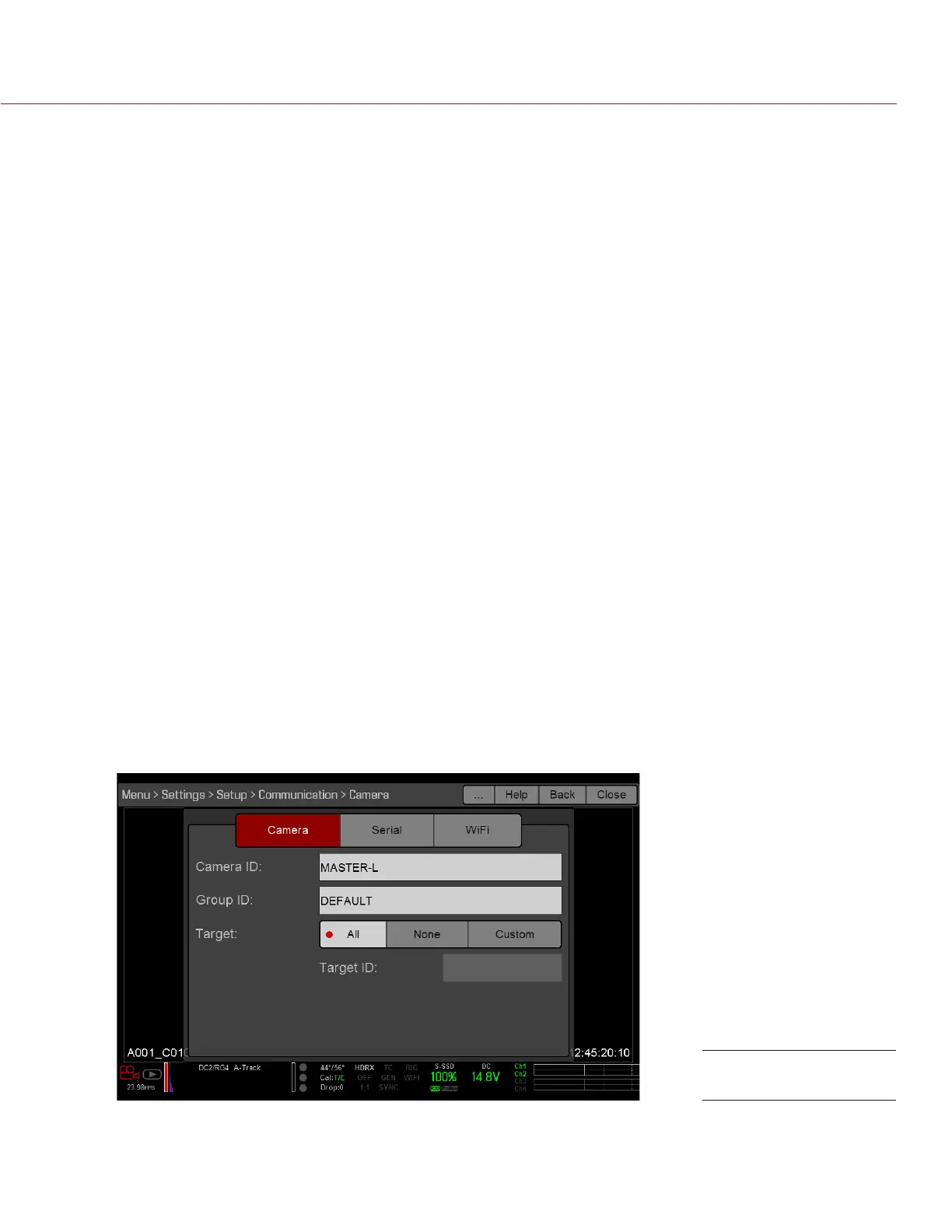

B. Type a name for the camera (Example: CAM A, LEFT, MASTER, etc) in the Camera ID field.
C. Set Target to All.
D. Go to Menu > Settings > Setup > Communication and select the Ethernet tab.
E. Select the Camera to Camera the check box.
3. On the Slave camera(s), follow the instructions below:
Master Settings
To Next Page
