RED RAVEN OPERATION GUIDE

HDRX MENU

NOTE: HDRX mode cannot be modified when test signals are enabled.

NOTE: You cannot change the exposure when HDRX is enabled.

NOTE: You cannot use HDRX mode when:

‒ A Sensor Sync Mode (Genlock or MoCo) is enabled.

‒ Speed Ramp mode is enabled.

‒ A Frame Processing mode (Frame Summing or Frame Averaging) is enabled.

By default HDRX is disabled, and the HDRX indicator in the Lower Status Row is grey.

To enable HDRX, follow the instructions below:

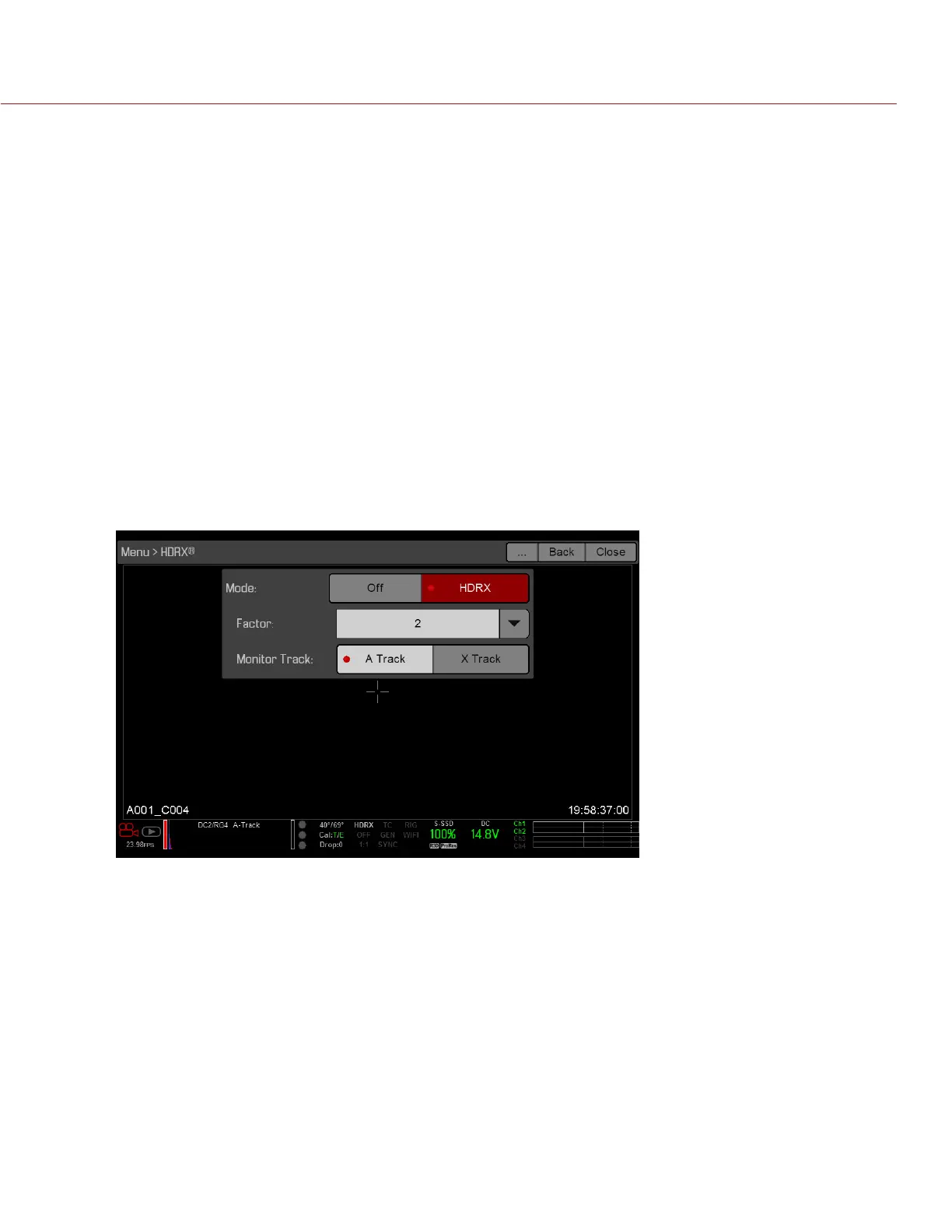

1. Go to Menu > HDRX.

2. Select HDRX.

The HDRX text in the Lower Status Row turns white.

3. Select the number of Factors. The range is 1–6, and the default is 2.

4. Select which track you want the display to show:

‒ A Track: This track shows the video with the selected aperture and exposure settings applied.

‒ X Track: This track shows the video with the additional stops applied.

NOTE: For more information, see the High Dynamic Range Video with HDRx article, available at www.red.

com/learn/red-101/hdrx-high-dynamic-range-video.
