RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 172

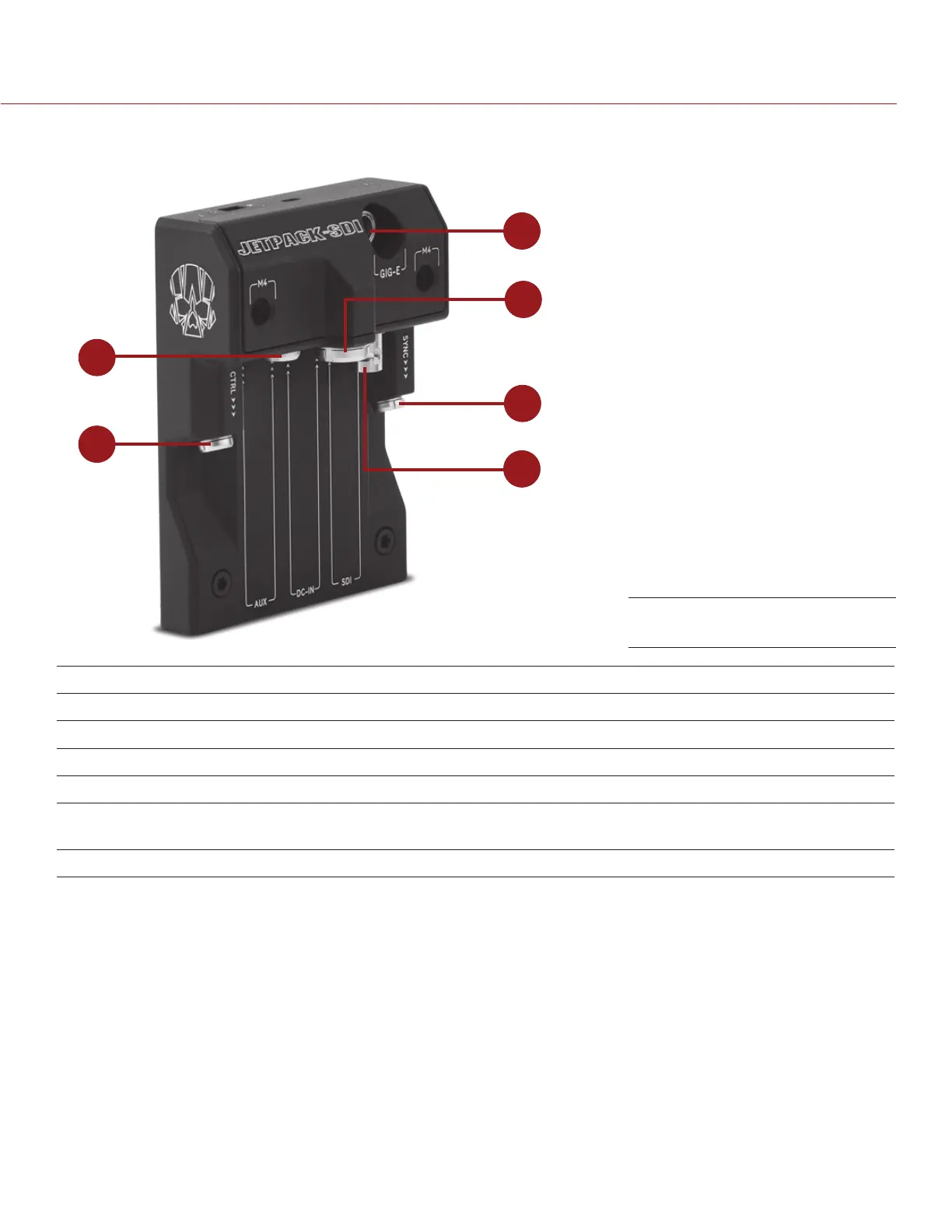

DSMC2 JETPACK-SDI EXPANDER

# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...

1 CTRL 4-pin 00B LEMO “CTRL (RS232 Control)” on page 178

2 AUX 2-pin 0B LEMO “AUX Power (2-Pin LEMO)” on page 185

3 GIG-E 9-pin 0B LEMO “GIG-E (Ethernet)” on page 181

4 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 184

5 SYNC 4-pin 00B LEMO “SYNC (Video Sync In) with Contact Closure Style Trigger Input”

on page 177

6 SDI BNC “3G-SDI (HD-SDI) Out” on page 173

DSMC2 Jetpack-SDI Expander
