RED RAVEN OPERATION GUIDE

AUX POWER (2-PIN LEMO)

The following expanders feature an auxiliary power out connector.

 DSMC2 Jetpack-SDI Expander

 DSMC2 REDVOLT Expander

The 2-pin 0B LEMO connector supplies unregulated (+) 11.5 to 17 VDC battery pass-through power. The

maximum sustained current draw is 3.0A.

LEMO EEG.0B.302.CLL CONNECTOR

PIN SIGNAL DESCRIPTION DIRECTION

1 GROUND Common ground N/A

2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-through power Out

NOTE: Mating connector is FGG.0B.302.CLAD.

COMPATIBLE CABLE

 790-0410: RED W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B (18")

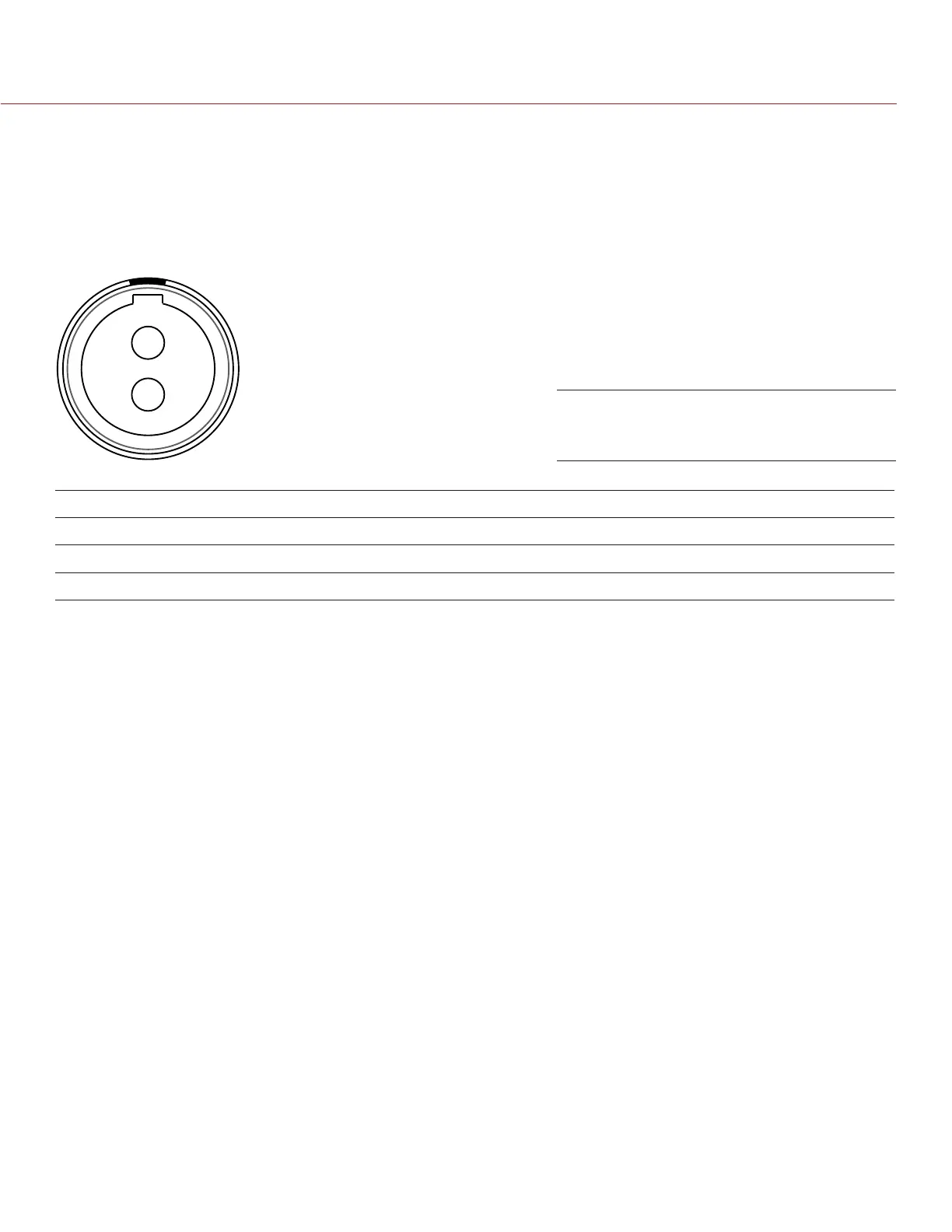

Front Face of AUX PWR Connector

(Looking at the Camera)
