RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 186

AUX POWER (4-PIN LEMO)

The DSMC2 REDVOLT Expander features an auxiliary power out connector.

The LEMO EAG.0B.304.CLN connector supplies unregulated (+) 11.5 to 17 VDC battery pass-through power.

The maximum sustained current draw is 1.5A.

LEMO EAG.0B.304.CLN CONNECTOR

PIN SIGNAL DESCRIPTION DIRECTION

1 GROUND Camera Ground N/A

2 GPI General purpose input trigger (GPI), use for trigger in In

3 GPO General purpose output trigger (GPO), use for tally out Out

4 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-through power Out

NOTE: Mating connector is FGG.0B.304.CLAD.

COMPATIBLE CABLE

 790-0552: RED 4-Pin 0B LEMO-to-Flying Lead AUX Power Cable (6')

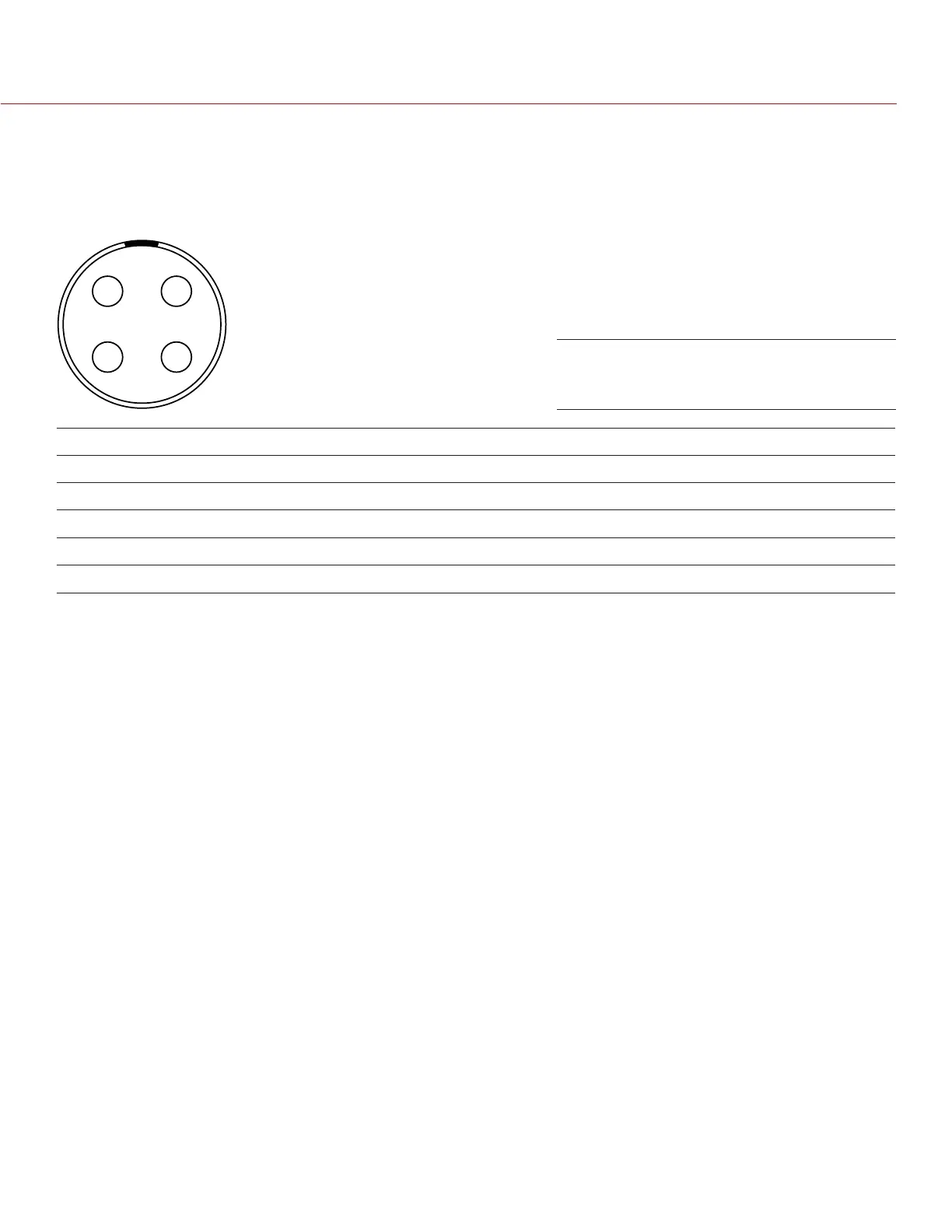

Front Face of AUX PWR Connector

(Looking at the Camera)
