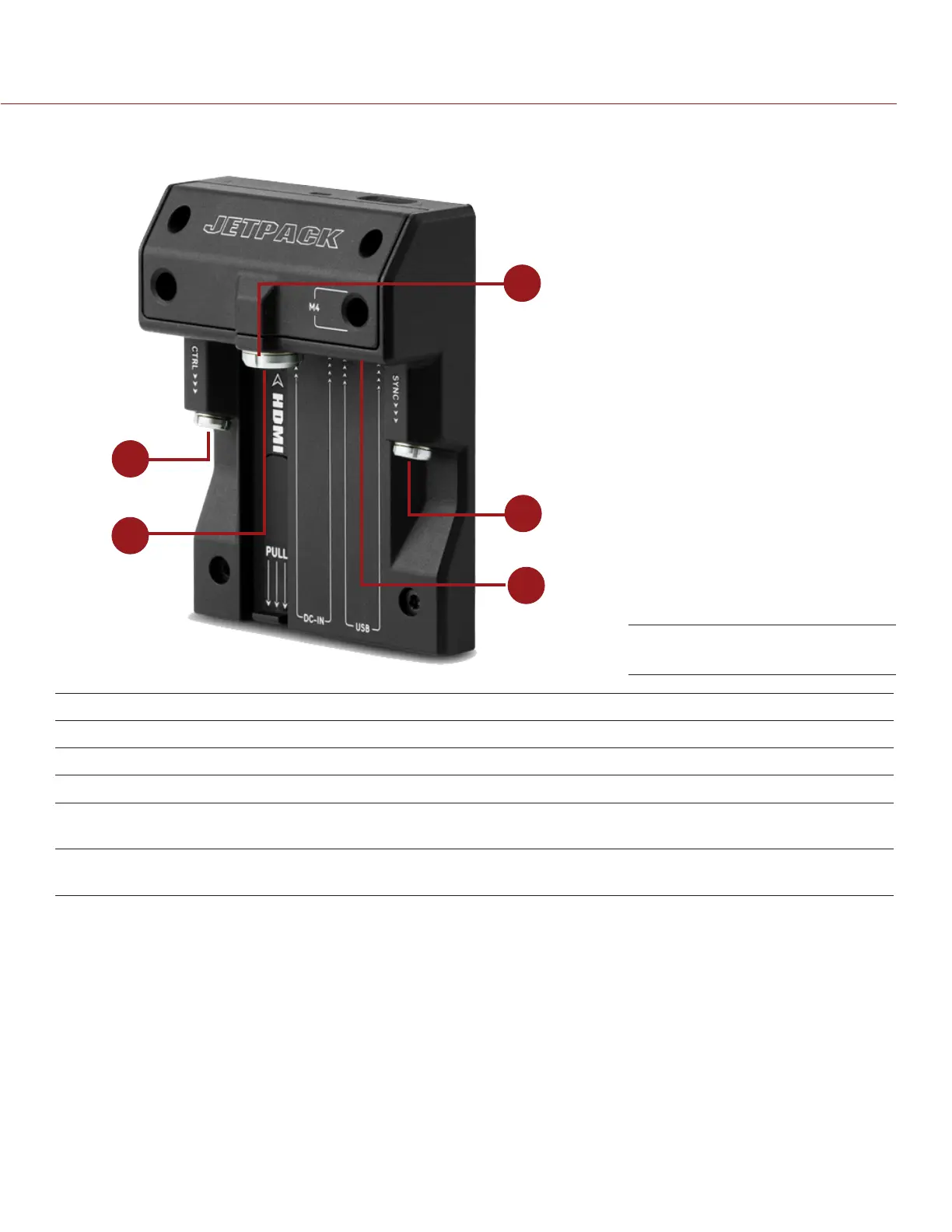

DSMC2 JETPACK EXPANDER
1
2
3
4
5
# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 CTRL 4-pin 00B LEMO “CTRL (RS232 Control)” on page 178
2 HDMI HDMI 1.2, Type A “HDMI Out” on page 174
3 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 184
4 SYNC 4-pin 00B LEMO “SYNC (Video Sync In) with Contact Closure Style Trigger Input”
on page 177
5 USB USB 2.0, Type A
(power only)
“USB Power” on page 187
DSMC2 Jetpack Expander

RED Raven Specifications

General

Sensor Type	RED Dragon
Dynamic Range	16.5+ stops
Media Type	RED MINI-MAG
Weight	3.5 lbs (body only)
Resolution	4608 x 2160
Frame Rates	up to 120 fps at 4.5K
Lens Mount	Canon EF
Recording Format	REDCODE RAW
ISO Range	ISO 800 native
