RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 12

BRAIN

The DSMC BRAIN

is the image processing center of the camera system and supports power, media, and other

modules.

The only ports on the BRAIN are the DSMC2

™

Top Handle port and EVF/LCD ports. A port expander or power

module is required to power the camera. All other input/ouput (I/O) ports are available only via expanders and

other modules. This modular approach allows you to customize your camera and make use of the ports that

are most applicable to your needs.

The RED

Tactical Hand Controller (T.H.C.) cannot pair directly to the camera. To use the T.H.C. with the

camera, the T.H.C. needs to be connected to the W.M.D. (either wired or wirelessly). For more information

about the T.H.C., see the RED 3-Axis System Operation Guide at www.red.com/downloads.

BRAIN CONTROL: PWR/REC KEY

 Fully press and hold the PWR/REC key for two (2) seconds to turn on/off.

 When the camera is on, fully press and then release the PWR/REC key to toggle record start/stop.

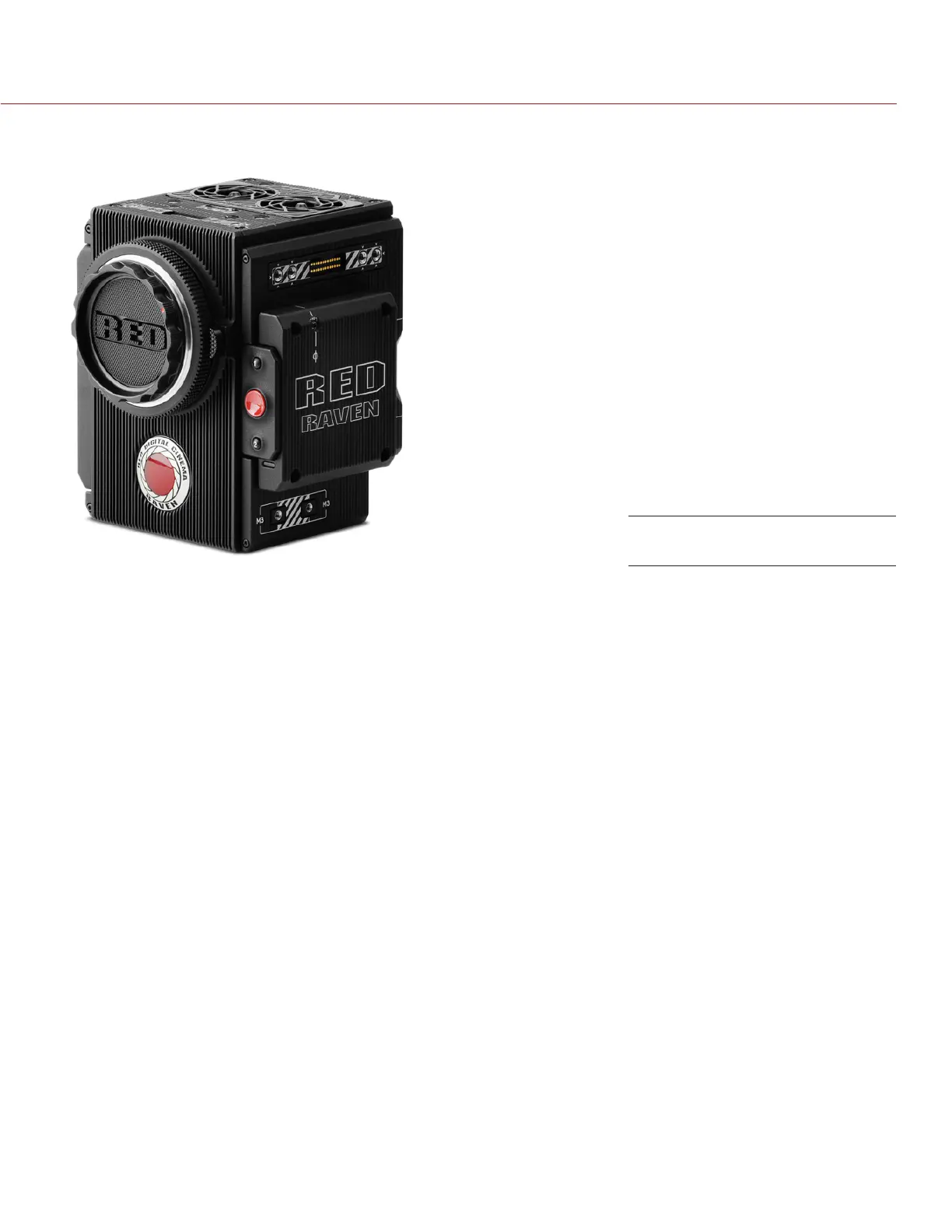

RED RAVEN BRAIN
