RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 127

OVERVIEW

The BRAIN has two (2) integrated dual channel digital stereo microphones that record uncompressed audio at

24-bit 48 kHz. These microphones offer you the ability to capture scratch-track audio.

The DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, and DSMC2 REDVOLT Expander each feature a

built-in headphone jack, so you can hear the audio during playback via headphones. Together, the integrated

microphones and headphone jack offer an audio solution for run-and-gun shoots.

Additional audio input/output options are determined by the attached port expander. For more information

about the ports on each expander, go to “Input/Output Connectors” on page 167.

The camera can record up to four (4) discrete stereo channels of uncompressed 24-bit, 48 KHz audio.

Input signals are routed via a high-quality pre-amplifier to achieve the desired recording levels and maximize

dynamic range.

Audio data is synchronized with video and timecode and embedded in the R3D

file. You can export audio data

from REDCINE-X PRO

as separate audio files.

Audio is also embedded in any HD-SDI and HDMI

output connected to the camera.

SET UP AUDIO

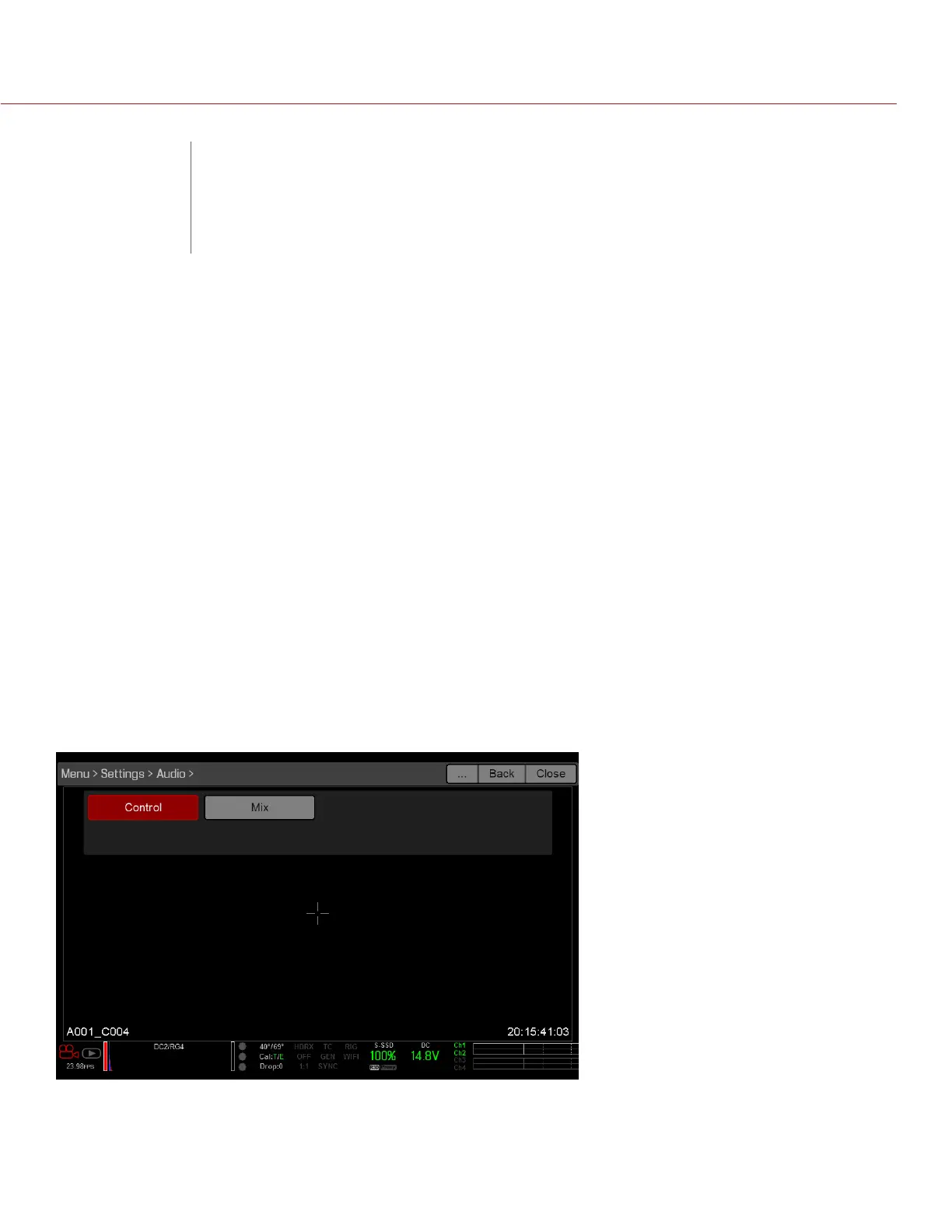

To set up audio, go to Menu > Settings > Audio. To adjust the input, pre-amplifier, and headphone settings,

select Control. To adjust the mix settings, select Mix.

RECORD AND

MONITOR AUDIO
