COPYRIGHT © 2016 RED.COM, INC
RED RAVEN OPERATION GUIDE
955-0127_V6.3, REV-E | 46

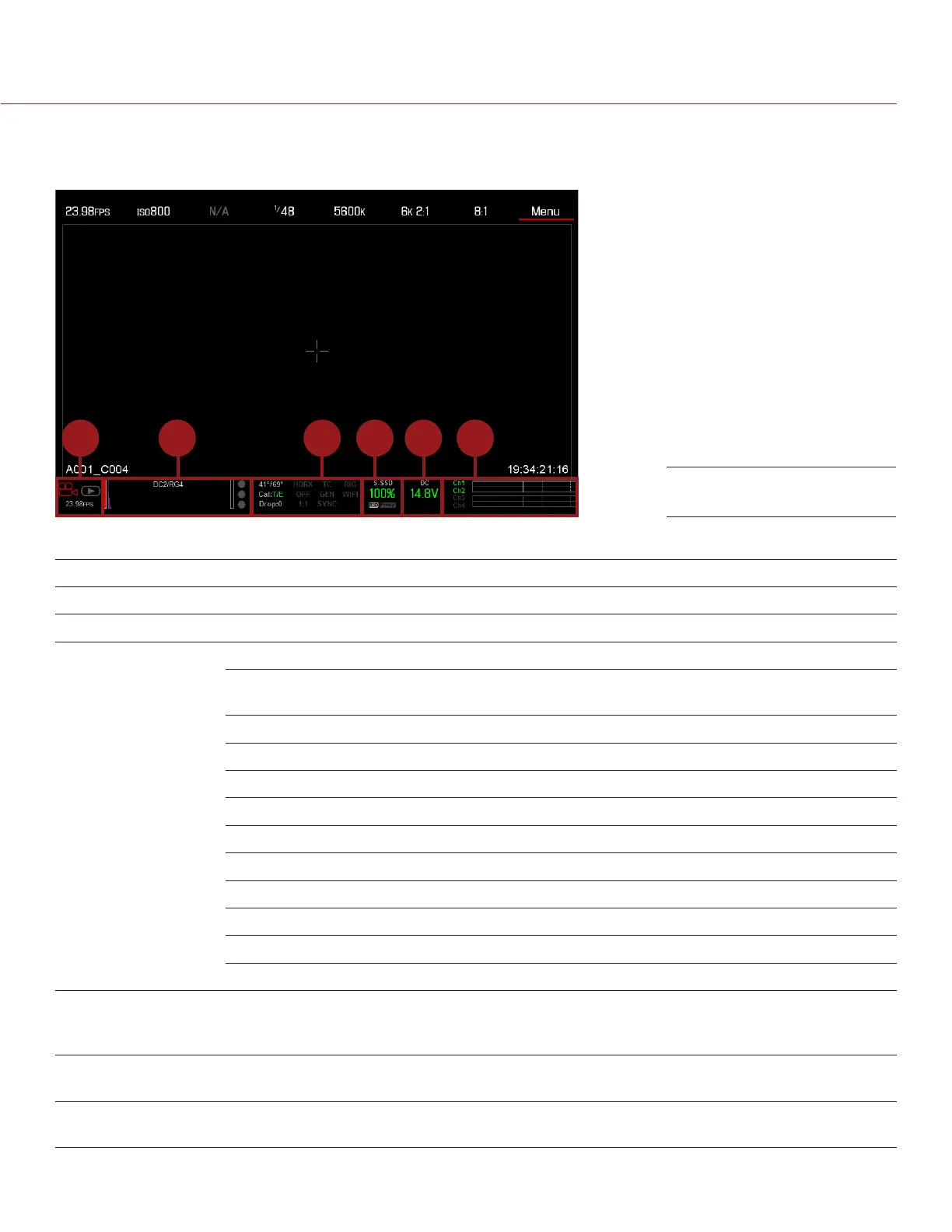

LOWER STATUS ROW
The Lower Status Row provides access to key system information and camera values.
1 3 5 62 4
The Lower Status Row in Motion mode provides key system information and camera values, including:
# ITEM SUB-ITEM/DESCRIPTION FOR MORE INFORMATION, GO TO...
1 Camera Mode Swipe up to toggle Motion/Stills/Playback modes “Camera Mode” on page 47
2 Histogram Histogram; tap to access the Tools menu “Histogram” on page 48
3 System Status
Indicators
Tap to access the System Status menu “System Status” on page 105
Temperature: Camera sensor and core
temperature, respectively
“Sensor Calibration” on page 100
Cal: T/E “CAL: T/E Indicator” on page 48
HDRX: Displays when HDRx mode is on “HDRX Menu” on page 115
False Color Mode: Displays modes “False Color Modes” on page 57
Magnify: Tallies 1:1 if magnify is selected “Magnify” on page 59
Timecode “Timecode” on page 132
Genlock “GEN Indicator” on page 49
Sync “SYNC Indicator” on page 49
LAN “LAN Indicator” on page 49
RIG: Indicates 3D rig metadata is present N/A
WIFI: Indicates WiFi connection “WiFi Indicator” on page 49
4 Media Status Media location and remaining media capacity,
displays when recording R3D and/or Apple
®
ProRes; tap to access the Media Menu
“Media Menu” on page 108
5 Power Status DC voltage in or % of remaining battery capacity;
tap to access the Power menu
“Power Status” on page 49
6 Audio Meter Audio input selection and levels; tap to access
the Audio menu
“Audio Meter Levels” on page 131
Lower Status Row: Motion
