RED RAVEN OPERATION GUIDE

NAVIGATION CONTROLS

This section describes basic controls for navigating the camera menus.

TOUCHSCREEN NAVIGATION

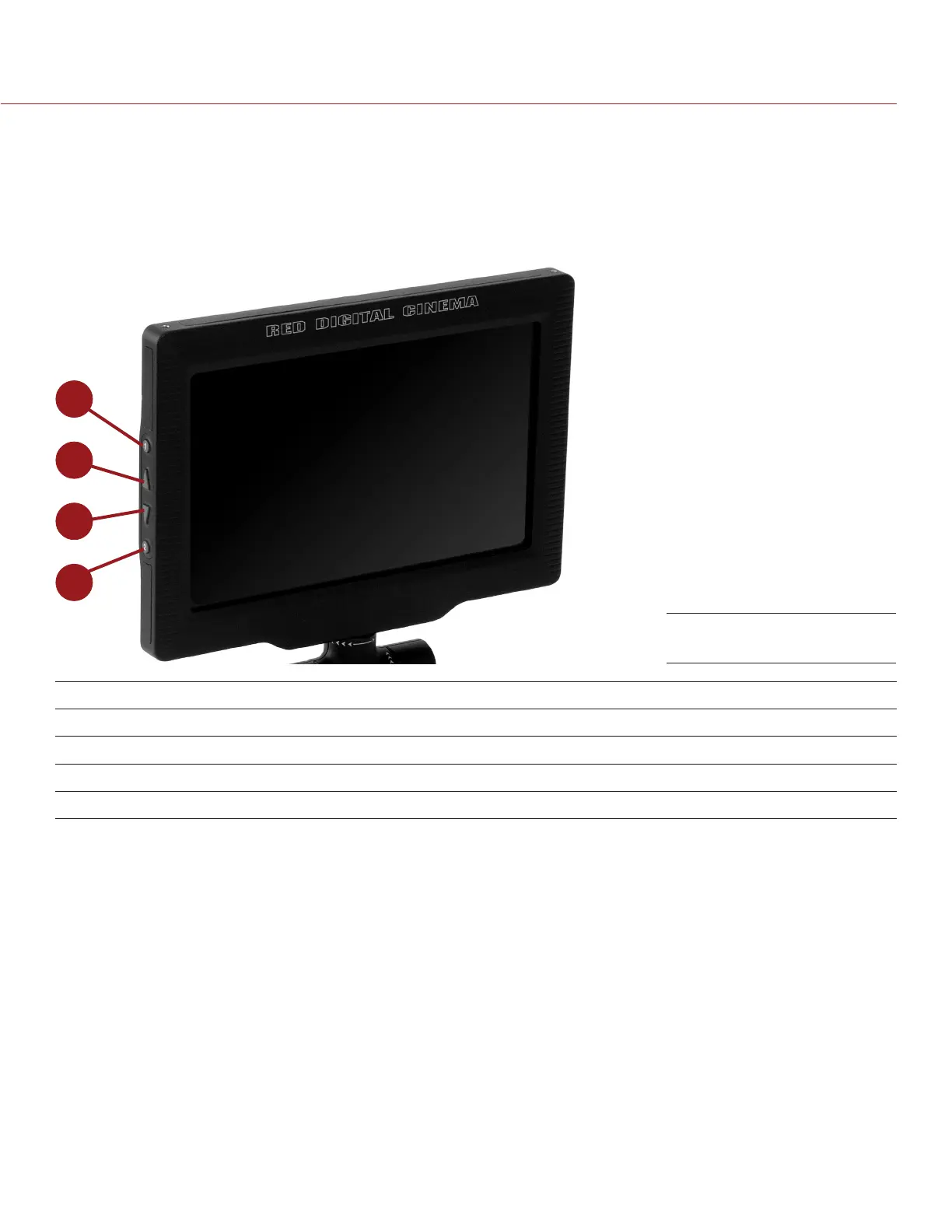

RED Touch displays offer intuitive menu control and four (4) programmable buttons.

# RED TOUCH BUTTON DESCRIPTION

1 User Key 1 Toggle 1:1 Magnify on/off

2 Up Button Increase display brightness

3 Down Button Decrease display brightness

4 User Key 2 Toggle Exposure Mode on/off

NOTE: RED Touch display keys are programmable. For more information, go to “Key Mapping” on page 88.

Navigate the menus using a touchscreen by using the following gestures:

 Tap: Tap has many functions:

‒ Tap to select a Basic Menu, submenu, or button.

‒ If a menu is open, tap anywhere outside the menu to save any changes and close the menu.

‒ Tap the right or left regions of the touchscreen to access the programmable soft keys.

 Swipe: Swipe to select different values in spinners or drop-down menus. For more information, go to

“Swipe-Up Menu” on page 52.

 Double-Tap: If the monitor is in Clean mode, changes to Overlay mode.

 Hold: Tap and hold an icon to bring up an advanced interface display.

 Pinch: Move two (2) fingers apart/together to increase/decrease the size of the image. By default, this

gesture is disabled.

For more information, go to “Gestures” on page 64.

RED Touch 7.0" LCD
