RED RAVEN OPERATION GUIDE

POWER MODULES

RED offers the following DSMC2 power modules:

ITEM PART NUMBER

DSMC2 REDVOLT XL Module 740-0034

NOTE: If a power module is attached to the DSMC2 REDVOLT Expander, the power out connectors on the

module are enabled only if power is connected to the module (via DC IN or a battery).

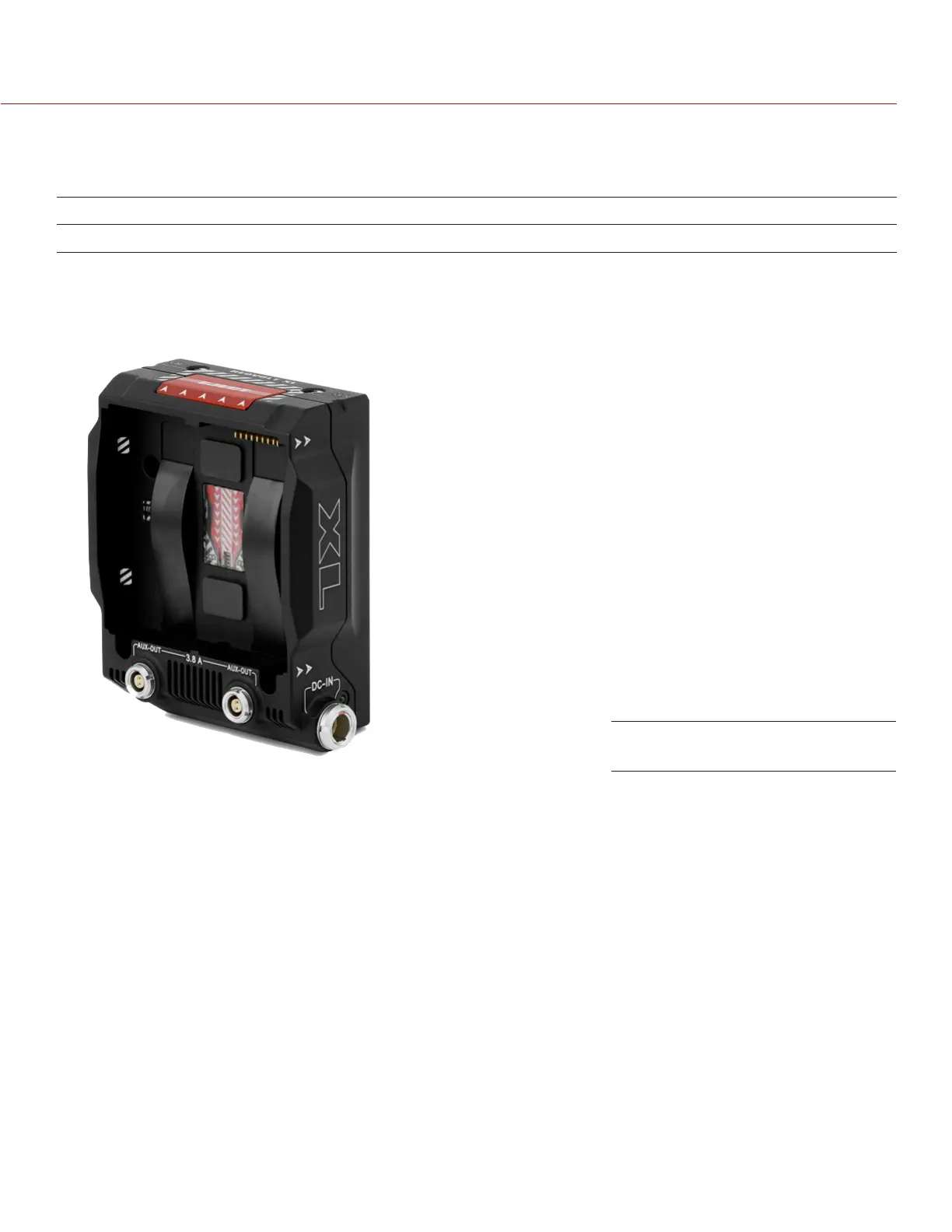

DSMC2 REDVOLT XL MODULE

The DSMC2 REDVOLT XL Module mounts seamlessly to the back of the camera—and select other I/O

expanders—to provide support for long-lasting and rechargeable REDVOLT XL batteries. The DSMC2 REDVOLT

XL Module features a smaller, more ergonomic design with one (1) dual-action release button for removing an

attached battery.

The DSMC2 REDVOLT XL Module offers a DC IN power port that can be used to power the camera system

when the module is attached to the camera. An included protective baseplate enables the DSMC2 REDVOLT

XL Module to serve as a portable and stand-alone REDVOLT XL battery charger. Plug in the DSMC AC Power

Adaptor to the 6-pin 1B LEMO DC IN connector on the module and connect a REDVOLT XL battery. While the

module is mounted to the camera, it will only charge an attached REDVOLT XL battery if the camera is powered

off.

Two (2) rear facing auxiliary ports provide power for external camera accessories, while remaining out of the

way while shooting.

DSMC2 REDVOLT XL Module
