RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 22

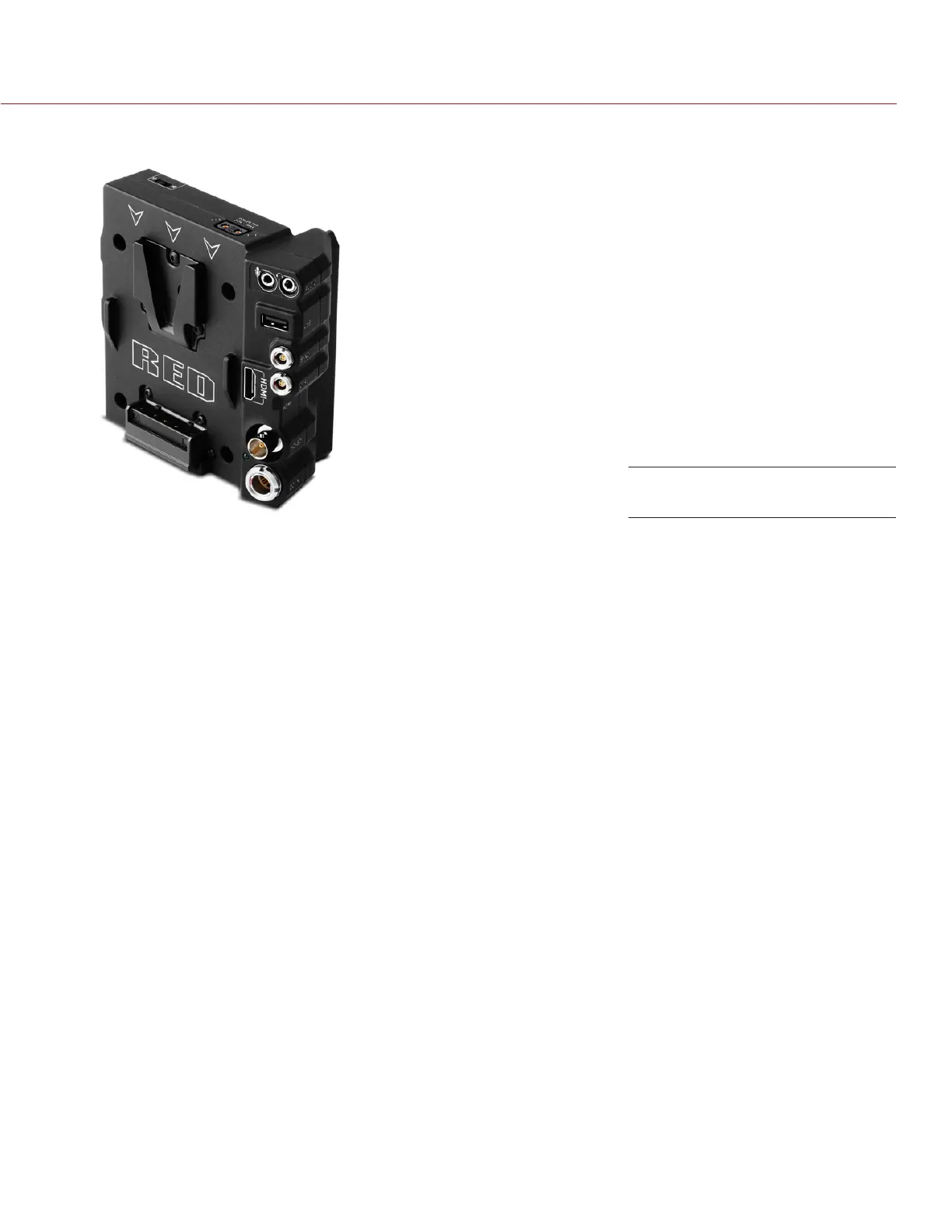

DSMC2 V-LOCK I/O EXPANDER

The DSMC2 V-Lock I/O Expander offers a variety of Input/Output connections, as well as an industry standard

V-Lock mount to power your DSMC2 camera using RED BRICK batteries.

The DSMC2 V-Lock I/O Expander also features a selector switch that enables the BRAIN to automatically boot

when power is provided via the DC IN connector on the expander. This feature allows you to use a connected

DC input supply to turn the BRAIN on and off when the camera is mounted in remote or difficult to maneuver

locations.

This expander is an ideal solution for a wide variety of production environments—from low-profile run-and-gun

situations to studio shoots that require mobility.

NOTE: The DSMC2 Top Handle may not be fully compatible with the DSMC2 V-Lock I/O Expander, as the top

handle may interfere with the battery when one is attached to the expander module.

NOTE: Only one (1) expander module can be used at a time.

THIRD-PARTY BATTERY COMPATIBILITY

To be compatible with the DSMC2 V-Lock I/O Expander, third-party batteries must meet these requirements:

 Maximum width: approximately 100.6 mm

 Minimum radius of the side edge of the V-mount (rear mounting surface): approximately 9.70 mm

The following third-party batteries have been fit-tested by RED and are mechanically compatible with the

DSMC2 V-Lock I/O Expander (additional batteries may be compatible, but have not been tested):

 Blueshape

(All BV series)

 IDX

(E-HL10DS and E-HL9)

 Sony

(BP-FL75)

 Switronix (Hypercore series and XP-L90S)

WARNING: While third-party batteries may be mechanically compatible with the camera system, the manufacturer

is responsible for the performance and stability of third-party options, not RED. Damage to the camera system

or third-party devices caused by using third-party power options is not covered under warranty. The camera

may be unable to determine and display the voltage or remaining battery capacity of third-party power options.
