RED RAVEN OPERATION GUIDE

DSMC2 JETPACK-SDI EXPANDER

The DSMC2 Jetpack-SDI Expander is designed for aerial, gimbal, handheld, and other lightweight/remote

applications that require 3G-SDI output. Featuring connections for power (DC IN), SDI (3G-SDI), Gigabit

Ethernet (GIG-E), AUX power, SYNC, and CTRL, the DSMC2 Jetpack-SDI Expander provides a low-profile

expander solution. The 3G-SDI connection provides support for providing a signal to a remote monitoring

solution, while the Gigabit Ethernet connection offers increased bandwidth for streaming high-quality footage.

The DSMC2 Jetpack-SDI Expander is ideal for housings and low-profile configurations that require 3G-SDI

outputs or computer tethering.

The DSMC2 Jetpack-SDI Expander also features a selector switch that enables the DSMC2 BRAIN to

automatically boot when power is provided via the DC IN connector on the expander. This feature allows you

to use a connected DC input supply to turn the BRAIN on and off when the camera is mounted in remote or

difficult to maneuver locations.

NOTE: Only one (1) expander module can be used at a time.

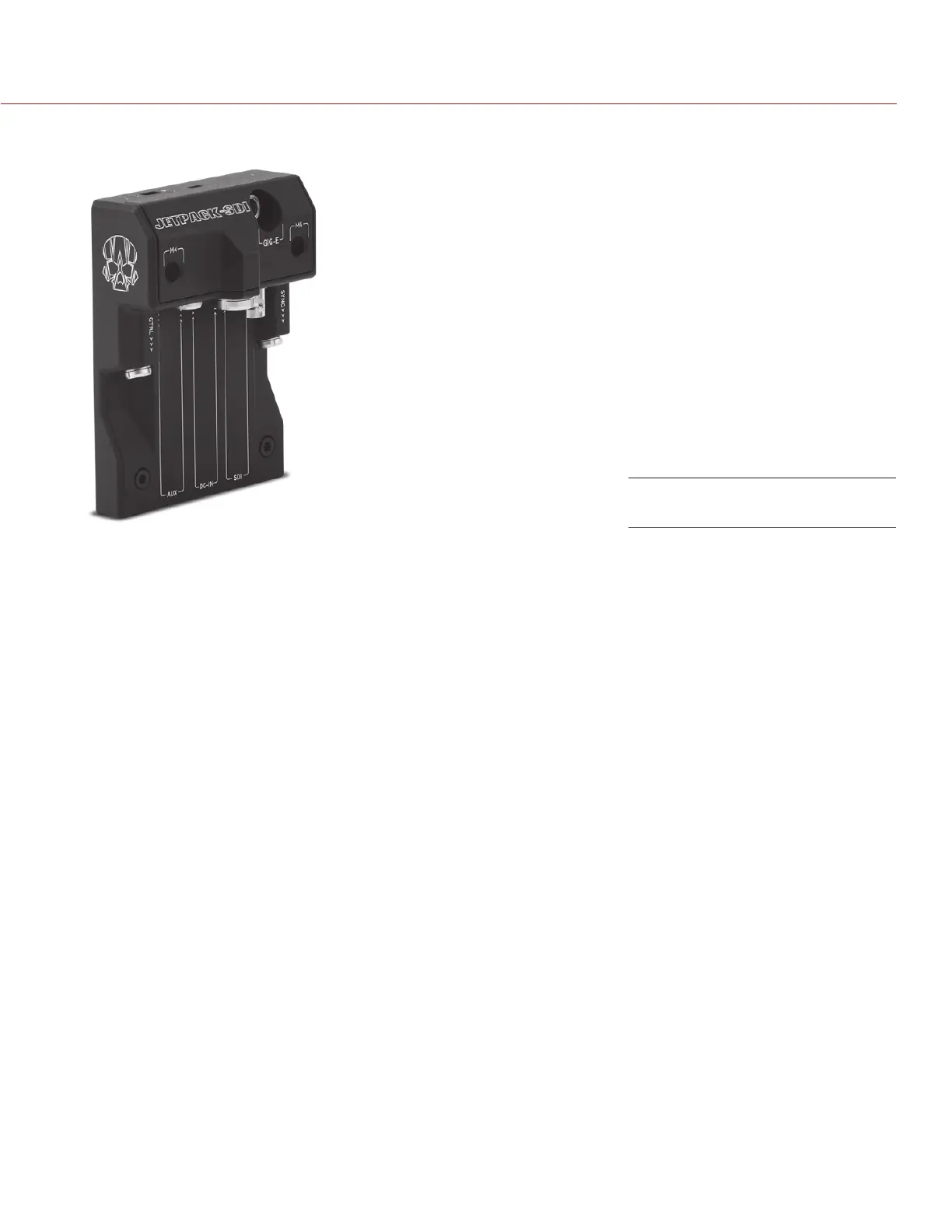

DSMC2 Jetpack-SDI Expander
