RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 182

AUDIO PORTS

STEREO MICROPHONE

The following expanders feature a stereo microphone jack:

 DSMC2 Base Expander

 DSMC2 V-Lock I/O Expander

The 3.5mm stereo microphone provides two (2) channels of audio for recording.

AUDIO 1 AN1D 2

The DSMC2 REDVOLT Expander features two (2) full-size XLR audio in connectors.

The two (2) 3-pin XLR connectors provide input for two (2) audio channels. Each port supports 48 V 10mA

phantom power. Each input may be independently set to either line or microphone level. If a channel is set to

microphone, you can independently enable its 48 V phantom power output.

3-PIN XLR CONNECTOR

PIN SIGNAL DESCRIPTION DIRECTION

1 GROUND Camera ground N/A

2 MIC/LIN IN + Mic/Line input (+) 48 V phantom power In

3 MIC/LIN IN - Mic/Line input (-) 48 V phantom power In

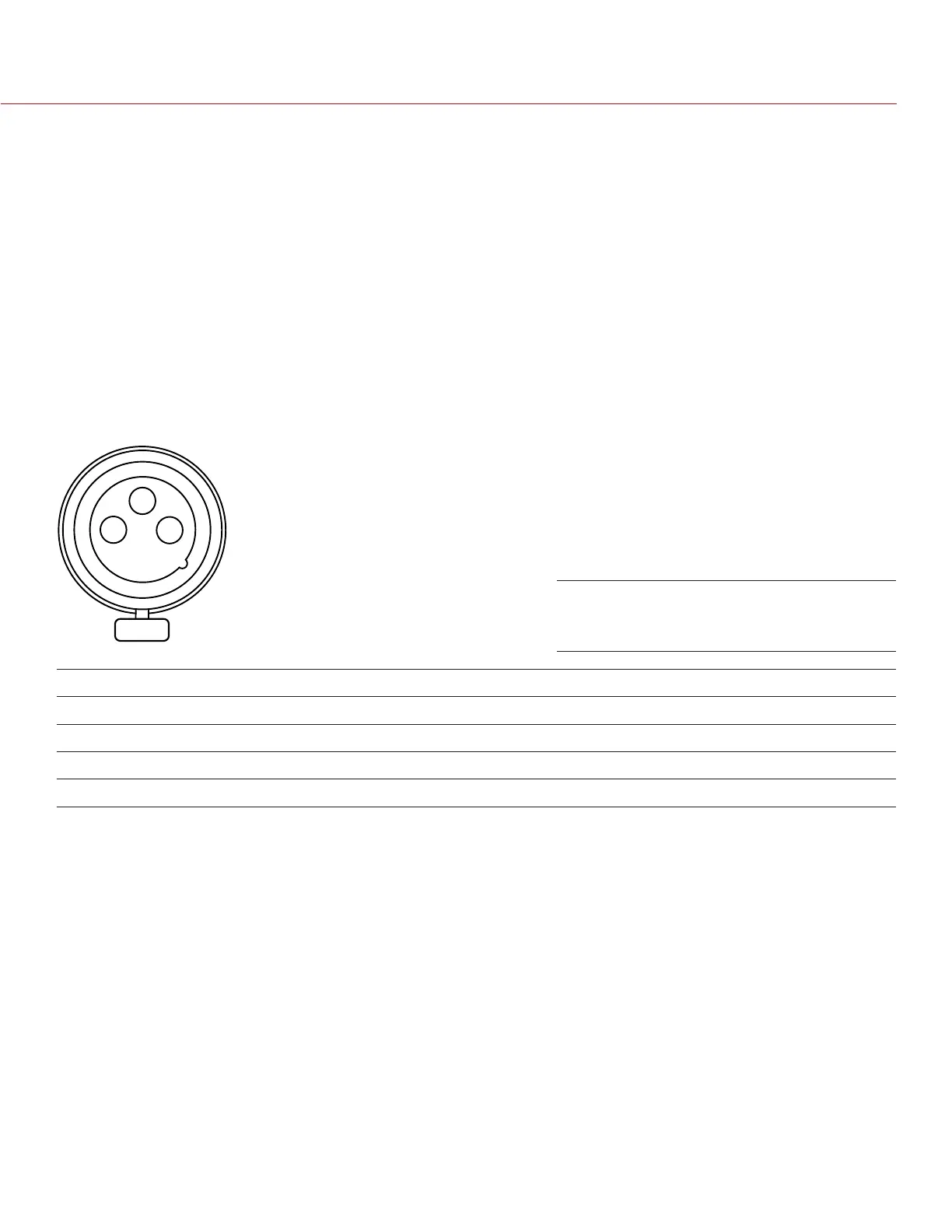

Front Face of Audio Input (3-PIN XLR)

Connector (Looking at the Camera)
