RED Raven User Manual

RED RAVEN OPERATION GUIDE
COPYRIGHT © 2016 RED.COM, INC 955-0127_V6.3, REV-E | 169

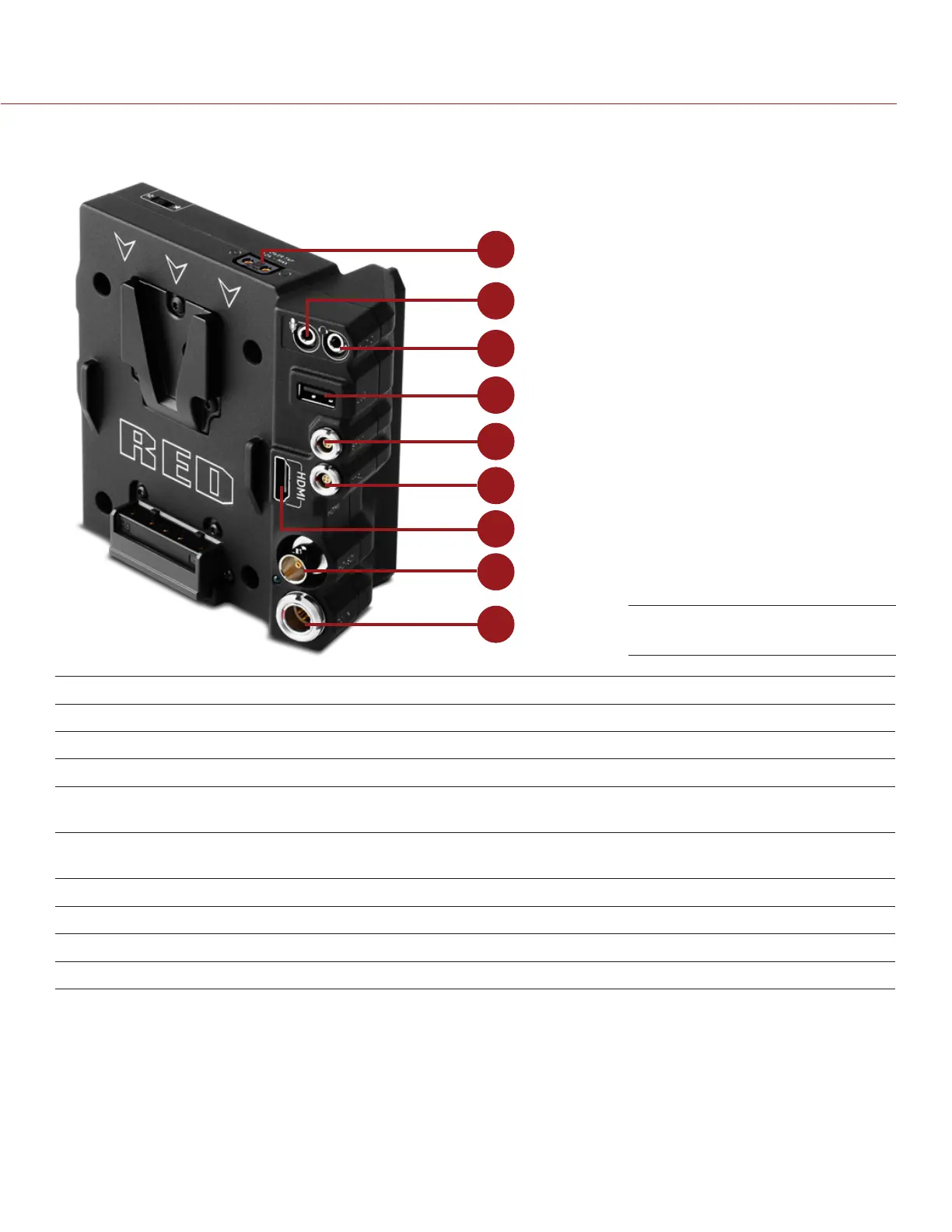

DSMC2 V-LOCK I/O EXPANDER
2
3
4
5
6
7
8
9
1
# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 AUX Power P-Tap 2-pin Female “AUX Power (P-Tap)” on page 187
2 Stereo Microphone 3.5mm stereo “Stereo Microphone” on page 182
3 Headphone Jack 3.5mm stereo “Headphone” on page 183
4 USB Power USB 2.0, Type A
(power only)
“USB Power” on page 187
5 SYNC 4-pin 00B LEMO “SYNC (Video Sync In) with Contact Closure Style Trigger
Input” on page 177
6 CTRL 4-pin 00B LEMO “CTRL (RS232 Control)” on page 178
7 HDMI
®
HDMI 1.2, Type A “HDMI Out” on page 174
8 HD-SDI BNC “3G-SDI (HD-SDI) Out” on page 173
9 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 184
DSMC2 V-Lock I/O Expander

RED Raven Specifications

General

Sensor Type	RED Dragon
Dynamic Range	16.5+ stops
Media Type	RED MINI-MAG
Weight	3.5 lbs (body only)
Resolution	4608 x 2160
Frame Rates	up to 120 fps at 4.5K
Lens Mount	Canon EF
Recording Format	REDCODE RAW
ISO Range	ISO 800 native
