RED RAVEN OPERATION GUIDE

USB POWER

The following expanders feature a USB 2.0 (Type A) power out connector:

 DSMC2 Jetpack Expander

 DSMC2 V-Lock I/O Expander

 DSMC2 REDVOLT Expander

The USB power out connector supplies 5 V of power. The maximum sustained current draw is 1.5A.

You can use the USB power out connector to provide power to an attached HDMI wireless transmitter.

NOTE: The USB connector only offers power out, and does NOT support USB communication.

AUX POWER (P-TAP)

The DSMC2 V-Lock I/O Expander features an AUX power out connector. The AUX power out connector features

an industry-standard P-Tap connector and supplies conditioned VBATT at a maximum of 3.0A of power.

2-PIN DTAP CONNECTOR

PIN SIGNAL DESCRIPTION DIRECTION

1 GROUND Common ground N/A

2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-through power Out

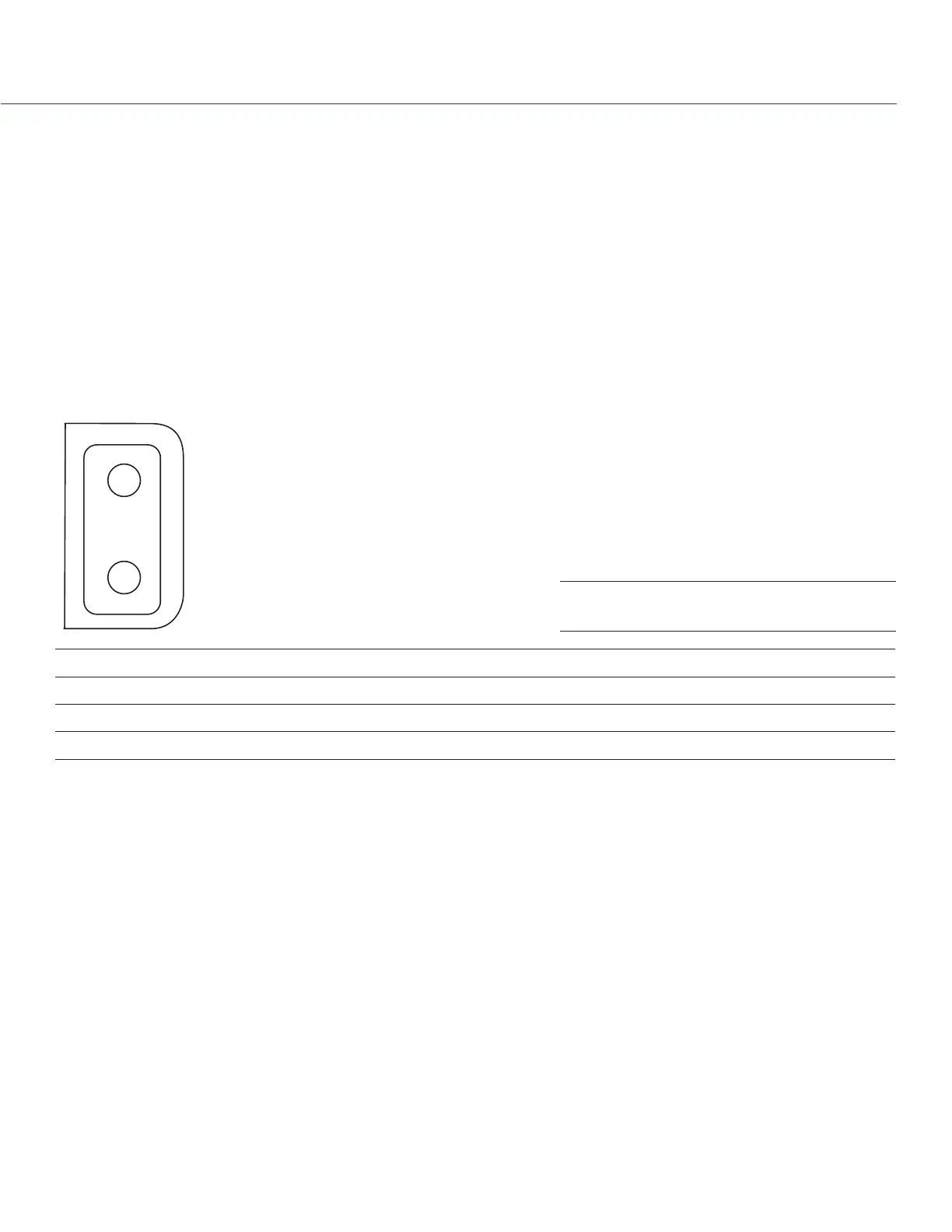

P-Tap Connector (Looking at Camera)
