RED RAVEN OPERATION GUIDE
COPYRIGHT © 2016 RED.COM, INC 955-0127_V6.3, REV-E | 45

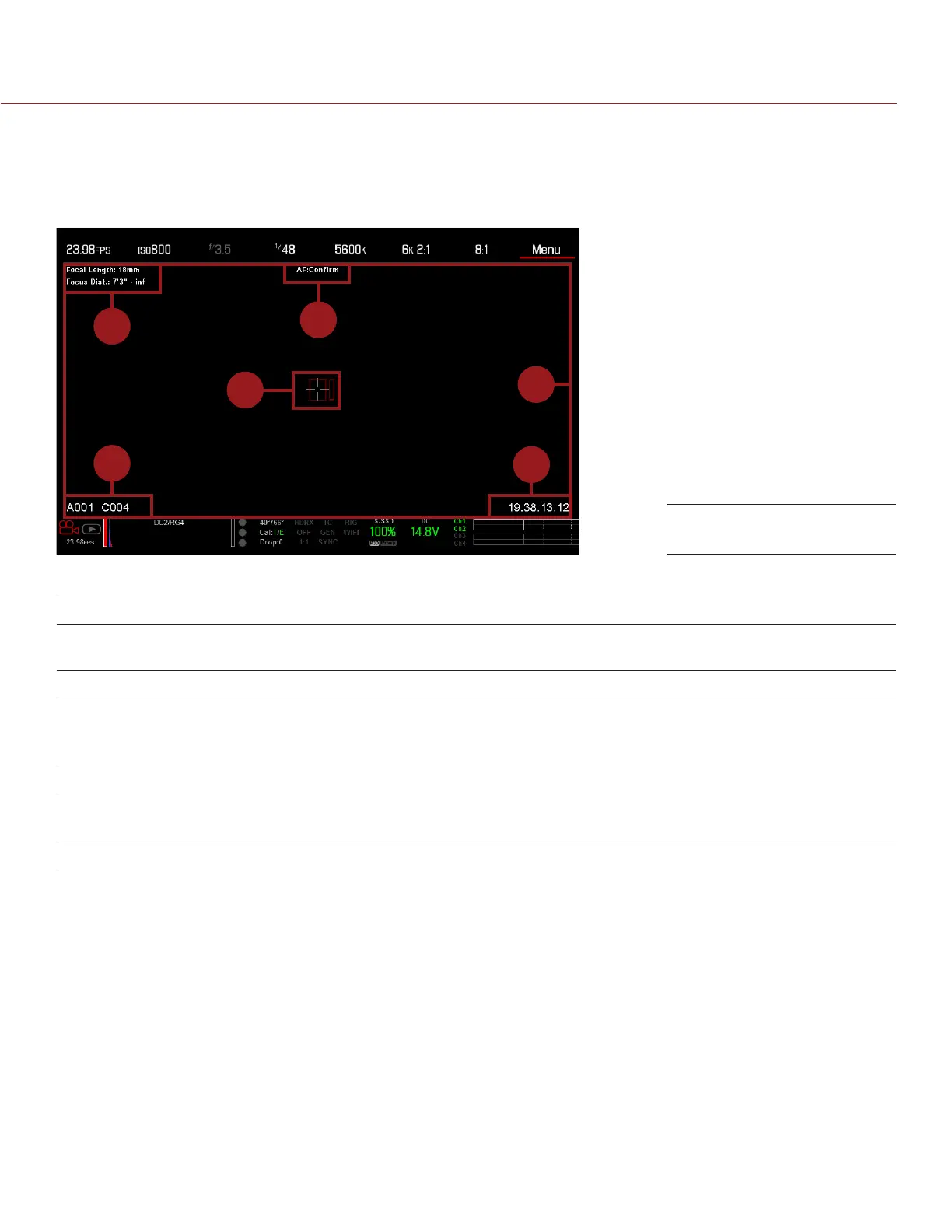

LIVE ACTION AREA
The Live Action Area contains the recorded image area plus Surround View look around area, plus overlays
for Frame Guides, Safe Action/Safe Title, Clip Name, and Timecode values. The color of each overlay can be
customized to maximize the contrast between the guide(s) and scene being captured.
1
5
3
2
6
4
The Live Action Area includes the following GUI elements:
# ITEM DESCRIPTION FOR MORE INFORMATION, GO TO...
1 Lens Information Lens information when using supported
Canon lenses
“Lens Information” on page 45
2 AF Status Currently selected auto focus mode “Focus Menu” on page 116
3 Center Crosshair and
Spot Focus Guide
Crosshair: Center of selected guide
Reference guides: Safe Action/Safe Title,
Picture Center, Grid Overlay
“General Tab” on page 67
4 Frame Guides Record or sensor projection area “Guides” on page 67
5 Clip Filename Filename of the clip being recorded, or
filename of the next clip to be recorded
DSMC Media Operation Guide
6 Timecode Value Current timecode value “Timecode” on page 75
LENS INFORMATION
This section describes the lens information displays when a supported lens is attached.
CANON LENSES
The camera displays the focal length and focal distance when an electronically supported lens is attached.
When AF is set to Manual or Confirm mode, the focal distance displays as a pair of Near–Far distances. When
in AF mode, an estimated focus distance displays. The focal length and focal distance values and range vary
depending on the attached lens. When the focal length of the lens changes, the current values displays. For
more information, go to “Lens Tab” on page 66.
