RED RAVEN OPERATION GUIDE

UPPER STATUS ROW (BASIC MENU)

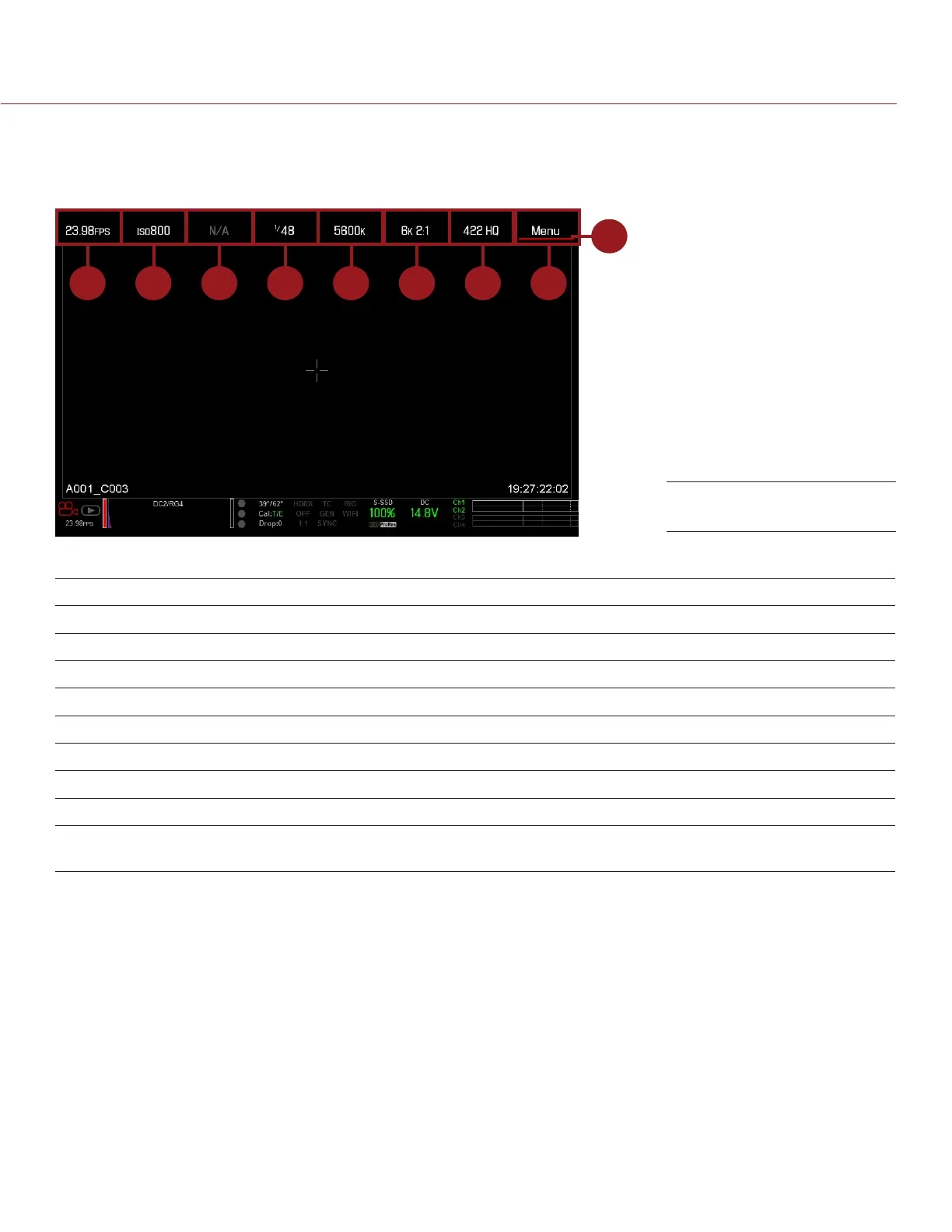

The Upper Status Row displays basic project parameters. The currently selected parameter in the Upper Status

Row is underlined with a red bar. The Upper Status Row is also known as the Basic Menu.

1 52 8763 4

The Upper Status Row includes the following GUI elements:

# ITEM DESCRIPTION FOR MORE INFORMATION, GO TO...

1 Frame Rate (fps) Recording frame rate “Frame Rate” on page 72

2 ISO Camera sensitivity “ISO” on page 68

3 Aperture Lens aperture (F stop) information “Aperture” on page 43

4 Exposure (Shutter) Integration time or shutter angle “Exposure” on page 73

5 Color Temperature White balance and Tint “Color Temperature” on page 71

6 Resolution Record resolution “Format” on page 76

7 REDCODE

REDCODE compression setting “REDCODE” on page 44

8 Menu Access advanced settings “Advanced Menus” on page 56

9 Cursor Indicates currently selected Upper

Status Row element

N/A

Upper Status Row
