RED RAVEN OPERATION GUIDE

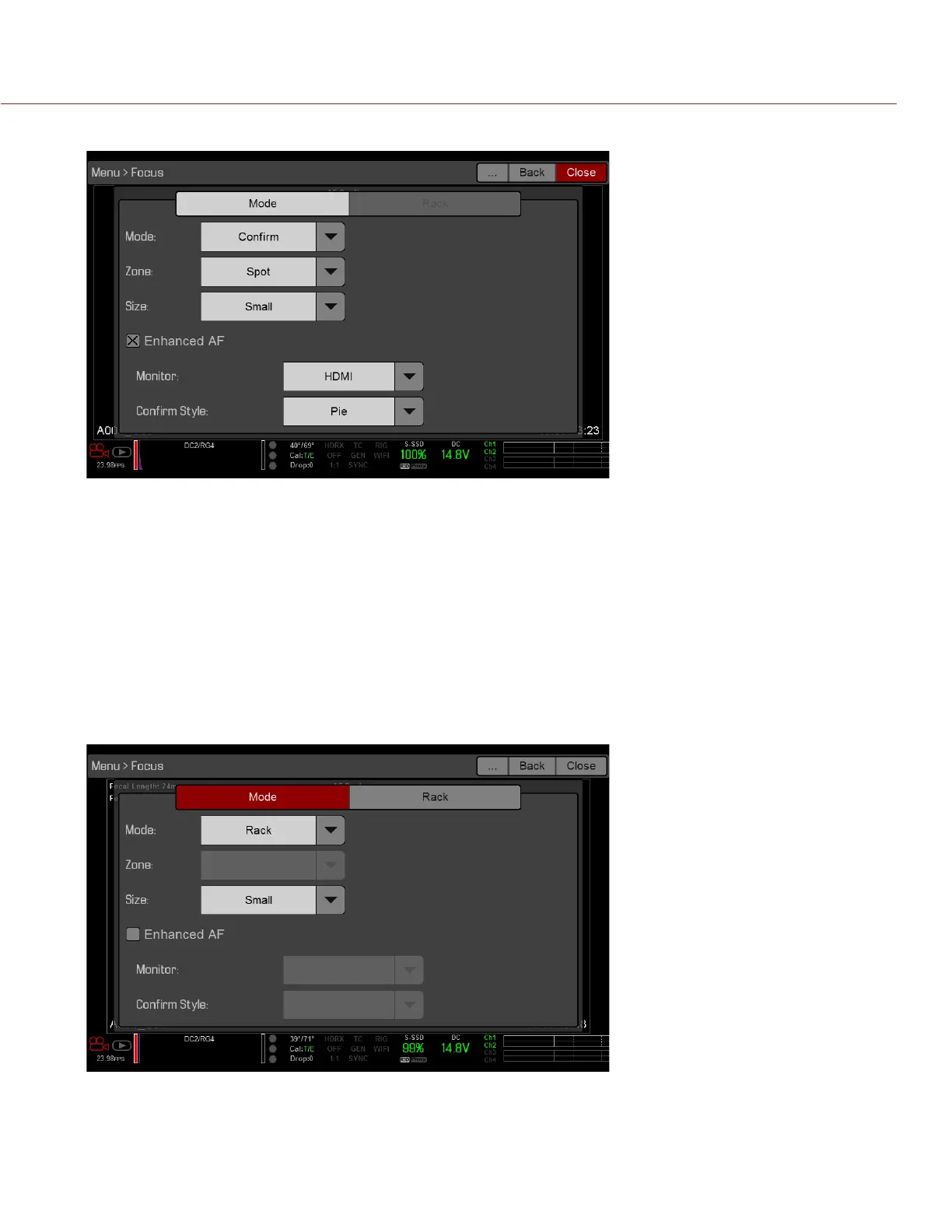

8. Close the Focus menu.

The target displays on the touchscreen, and the monitor that you selected for the Enhanced A/F feature is

in Clean mode.

RACK FOCUS

Use the Rack tab to configure up to four (4) focus points and execute rack focus between them.

SET UP RACK FOCUS

1. Ensure that a supported lens is attached to the camera.

2. Go to Menu > Focus > Mode.

3. Select Rack from the Mode drop-down menu.

4. Select a size from the Size drop-down menu.

5. Go to the Rack tab.

6. Use the Rack Speed slider to change the speed at which the lens moves. Move the slider to the left for a

slower speed, and to the right for a faster speed.

7. Select the number of Rack Points (up to 4).
