RED RAVEN OPERATION GUIDE

955-0127_V6.3, REV-E | 144

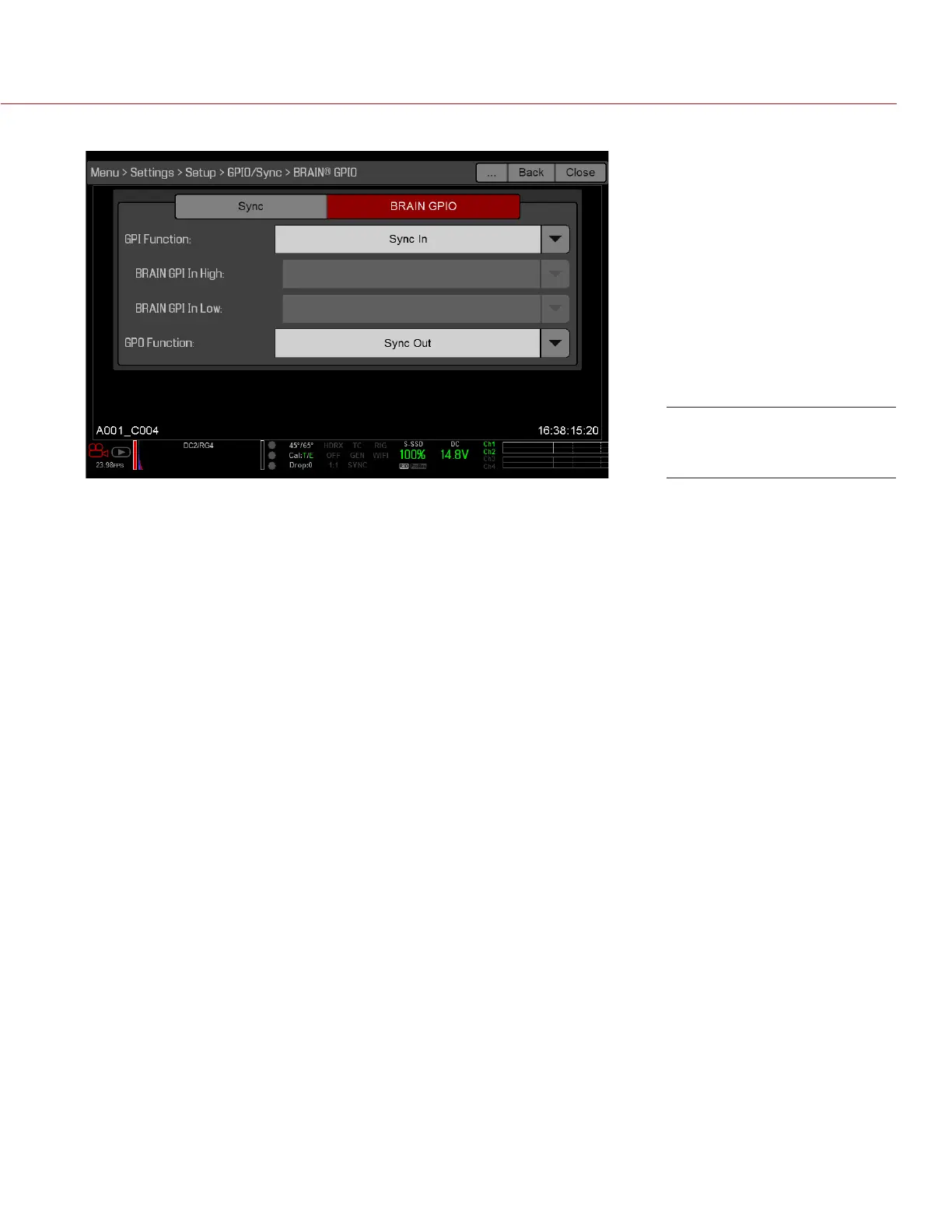

5. Select Sync In from the GPI Function drop-down menu.

6. Select Sync Out from the GPO Function drop-down menu. (Optional)

7. Supply a pulse from the Motion Control device to sync the shutter to the rising edge of the sync input.

For more information, refer to the manufacturer’s instructions for the Motion Control device.

REQUIRED CABLE

 790-0154: 3BNC-to-00 LEMO Sync Cable (required per SYNC and CTRL port used)

MoCo BRAIN/GPIO

Settings
