DSMC2 SIDEKICK

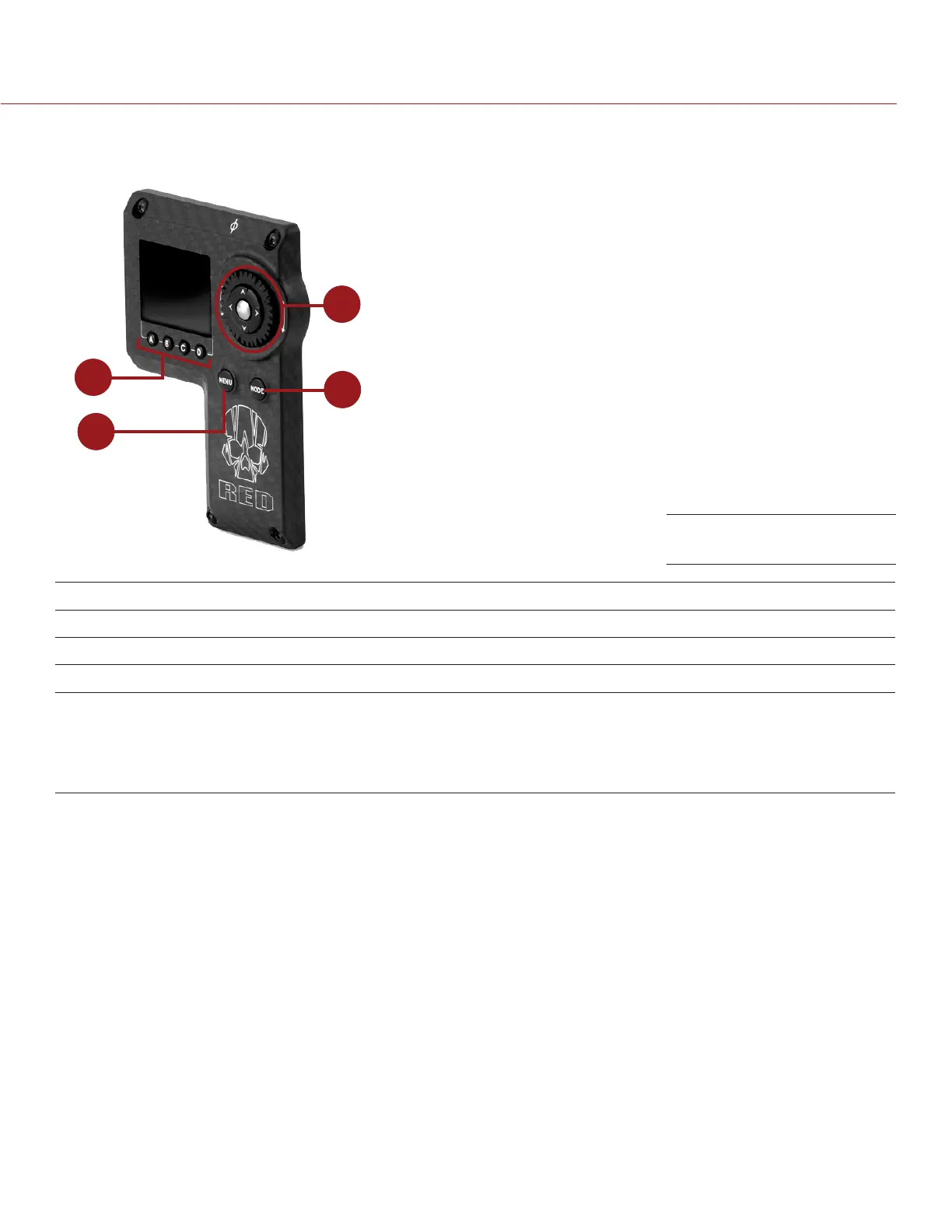

This section describes the controls and display of the DSMC2 Sidekick.
4
1
2
3
# CONTROL/ITEM DESCRIPTION
1 Navigation Group Navigate menus and menu items; Go to “Navigation Group” on page 53
2 MODE Button Toggle between Remote and Local Modes
3 MEDU Button Access menus or exit currently selected menu
4 User Keys (A–D)
1
A: Cycle Auto-Focus Mode
B: Auto White Balance
C: Toggle 1:1 Magnify
D: Toggle Exposure Mode
1. Press User Keys A + D simultaneously to lock/unlock DSMC2 Sidekick buttons to prevent inadvertent menu changes.
NOTE: DSMC2 Sidekick keys are programmable. For more information, go to “Key Mapping” on page 88.
OPERATION MODES
The DSMC2 Sidekick display reflects the currently selected mode. Use the Scroll Wheel and Directional Keys to
navigate menus. Press MENU to access the Advanced Menu.
Press MODE to toggle between the following modes:
Remote Mode: Navigate with DSMC2 Sidekick controls, using an attached LCD, EVF, or other monitor as a
reference. The DSMC2 Sidekick displays the primary control screen.
Local Mode: Navigate using the DSMC2 Sidekick controls and display. User Keys A-D are inactive.
KEY LOCK/UNLOCK
Lock the keys on the DSMC2 Sidekick to prevent inadvertent button presses and menu changes.
Lock: Press A + D simultaneously.
Unlock: Press A + D simultaneously. Alternatively, press and hold ENTER while keys are locked.
