Exhaust system
Section N
Description
The exhaust system
of
the Saloon and Van
comprises three main units, the manifold,
exhaust downpipe, and silencer
which
incorporates a short tailpipe.
The
down
pipe
of
the system is secured to the
manifold by
two
1
5
6
UN F nuts, the silencer and
tail section being flexibly mounted by
two
rubber/asbestos straps secured to the chassis.
To
remove
exhaust
system
(see
Figure
1)
1 Remove
two
1
5
6
UNF nuts and disconnect
downpipe from manifold.
2 Remove
i UNF set screw, coach washer
and nut, release the
two
silencer support straps
from their chassis mountings and carefully
withdraw
exhaust system from the rear
of
the
vehicle.
3 To disconnect silencer from
down
pipe
slacken
1
5
6
UN F clamp bolt and nut.
4 Replace in reverse order, fitting a new
downpipe gasket
to
the manifold.
Note:
Periodic checks should be made to the
exhaust system for tightness at all securing
and mounting points. The system should be
tightened up again after the engine
has
been
running.

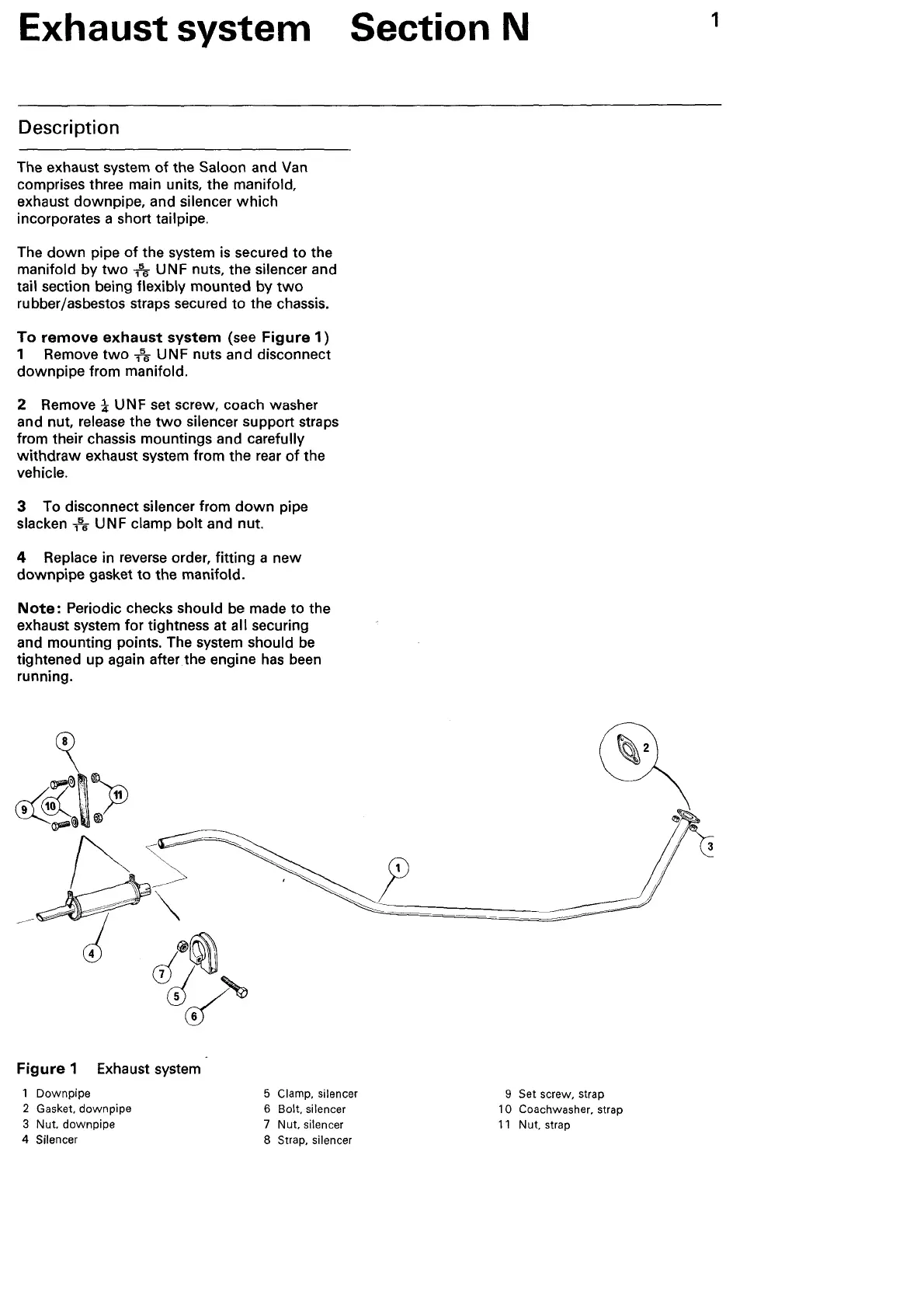

Figure
1 Exhaust system
Down pipe
2 Gasket. downpipe
3 Nut. downpipe
4
Silencer
5 Clamp, silencer
6 Bolt, silencer
7 Nut. silencer
8 Strap, silencer
9 Set screw, strap
1
0 Coachwasher, strap
11
Nut, strap
1
