Reliant SUPER ROBIN - Lighting System

Electrics Section T
Lighting system
The lighting system comprises headlamps,
front indicators,
rea r stop ta il / indicators,
number plate lamp, battery, starter solenoid,
li ght sw it ch and multi-switch, as sho wn in
Figure 10.
11
system. It is, therefore, of the utmost
importance
that this lead is kept clean and tight.
The condition of the battery
ea rth l ead and
engine earth strap, secured
to the gea rbox and
chassis is also important.
A single earth lead, secured
to the R.H. front
engine mounting, earths the complete li
ght ing
If any section of the lighting system fa il s to
function the condition and security
of the earth
leads and straps described above should be
checked. A
blow n fuse could also be the cause

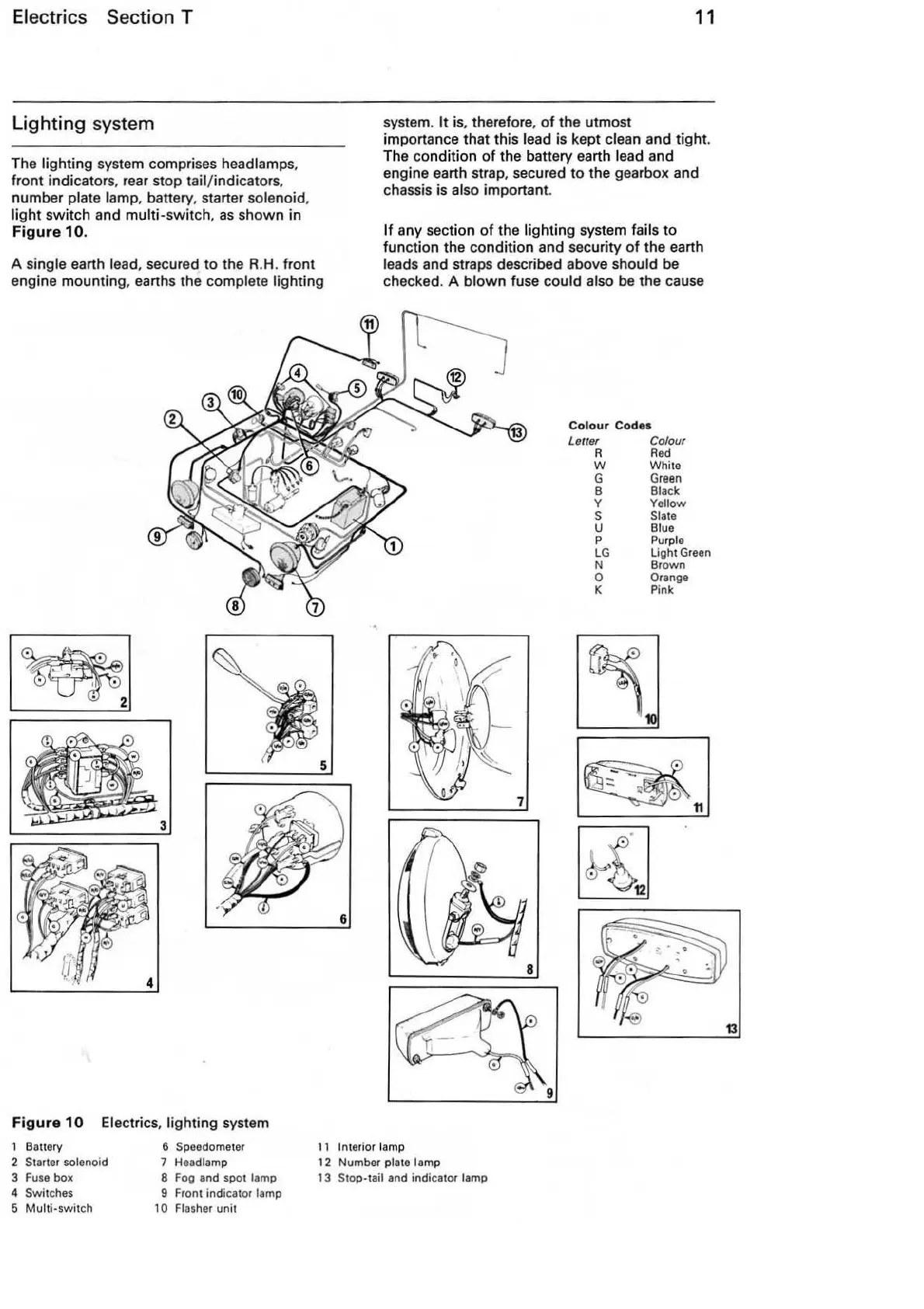

Figure 10 Electrics, lighting system
1 Ba tt er y
2 Starter solenoid
3
Fuse box
4 Switches
6
Multi-switch
6 Speedometer
7 Headlamp
8
Fog and spot lamp
9 Front indicator lamp
10 Flasher unit
11
Interior lamp
12 Number pl ate l am p
13 Stop-tail and indicator lamp
Co lo ur Co d ea
Le tt er
R
w
G
B
y
s
u
p
LG
N
0
K
Colour
Red
White
Green
Black
Yellow
Slate
Blue
Purple
UghtGreen
Brown
Orange
Pink
