The interior Section R
estate size floor a
rea.
The seat back is secured
in the upright position by means
of
rubber
retaining straps
looped over brackets mounted
on the body sides. To
fold
down
the seat. first
unhook the tonneau cover from the rear
of
the
vehicle (fitted
on
Sa
loon only),
lift
up
the rear
seat cushion and
release the seat back retaining
straps. The seat back can
now
be lowered. Fold
up the tonneau cover against the seat cushion.
To
remove
(see
Figur
e 3)
1 Unscrew
fi
ve tapit fixings securing cushion
flap to body. Remove seat cushion.
therefore, further
dismantling is
not
recommended.
The backboard retaining straps, however can
be
replaced by detaching the fixing clamp,
secured
to
the backboard
by
two
No. 6 cross
head screws.
The
two
abutment brackets
wh
ich s
upp
ort the
seat backboard
whe
n in the raised position
are
secured
to
the
body
with
two
No.
10
UNF
countersu
nk
screws.
3
2 Unhook tonneau cover from the
re
ar
of
the
vehicle and then release seat
ba
ck retaining straps.
5
Replace rear seat and components in reverse
order. Secure backboard hinges
to
the floor
3 Using a 5·56mm
(-n
in)
dia. drill remove the
heads
off
the rivets securing seat back board
hinges to the
body
.
4 Tap
out
rivet shafts and remove rear seat
ba
ck
assembly from the vehicle.
The backboard/squab and seat cushion
of
the
rear seat are
available
as
assemblies
only
and,

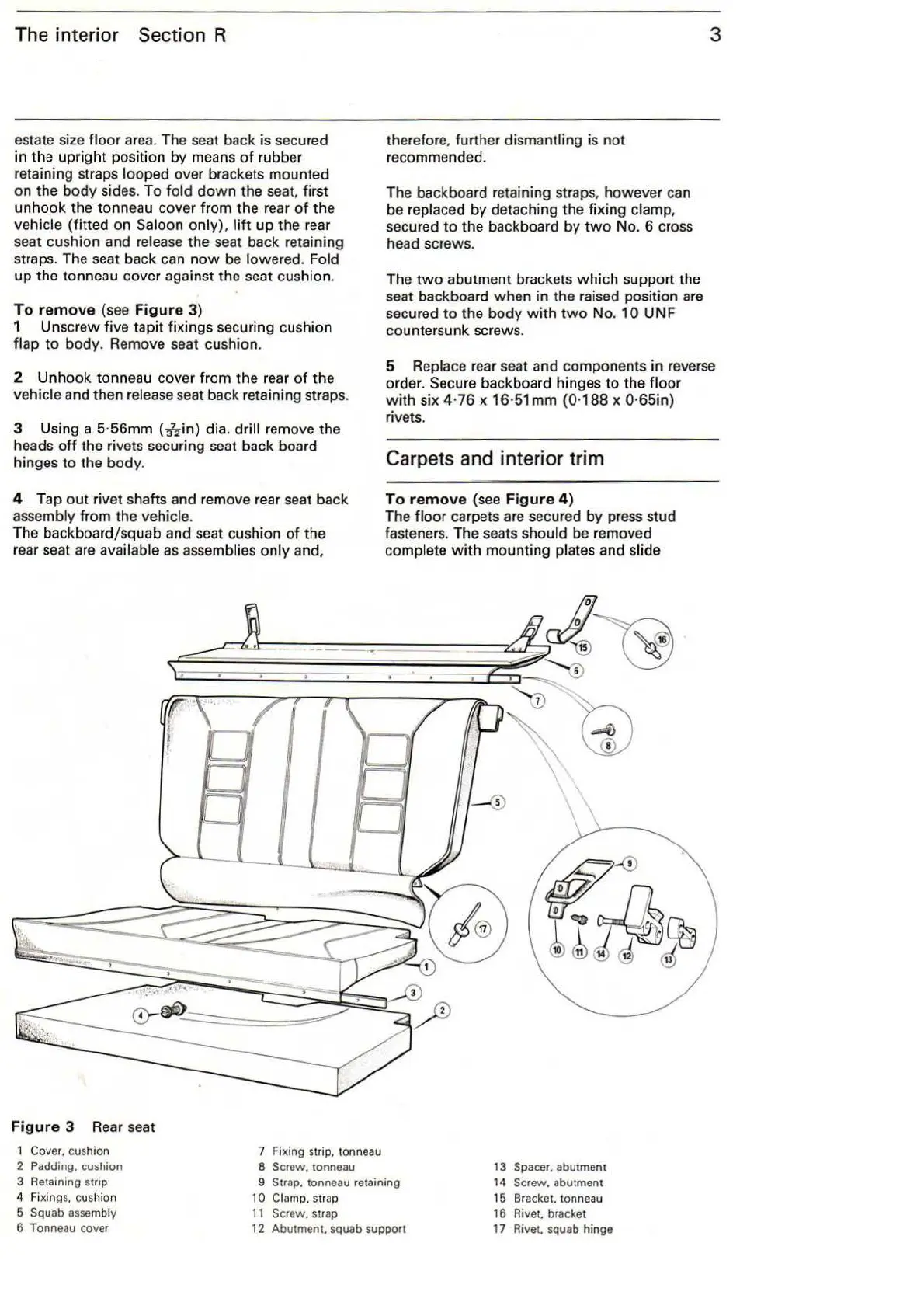

F
igure
3 Rear
sea
t
1 Cover. cushion
7 Fixing strip. tonneau
8 Screw. tonneau
with
six 4·
76
x 16·
51
mm
(0
·
188
x 0·65in)
rivet
s.
Carpets and interi
or
trim
To
remove
(see
Figure
4)
The
floor carpets
are
secured by press
st
ud
fasteners. The seats
should be removed
complete
with
mounting plates and slide
2 Padding. cushion
3 Retaining strip
4 Fixings. cush
io
n
5 Squab
assembly
6 Tonneau cover
9 Strap. tonneau retaining
10
Clomp, strap
13
Spacer. abutment
14 Screw. abutment
1 5 Bracket. ton
neau
16
Rivet
bracket 1 1 Screw. strap
1 2 Abutment. squab support
17
Rivet. squab hinge
