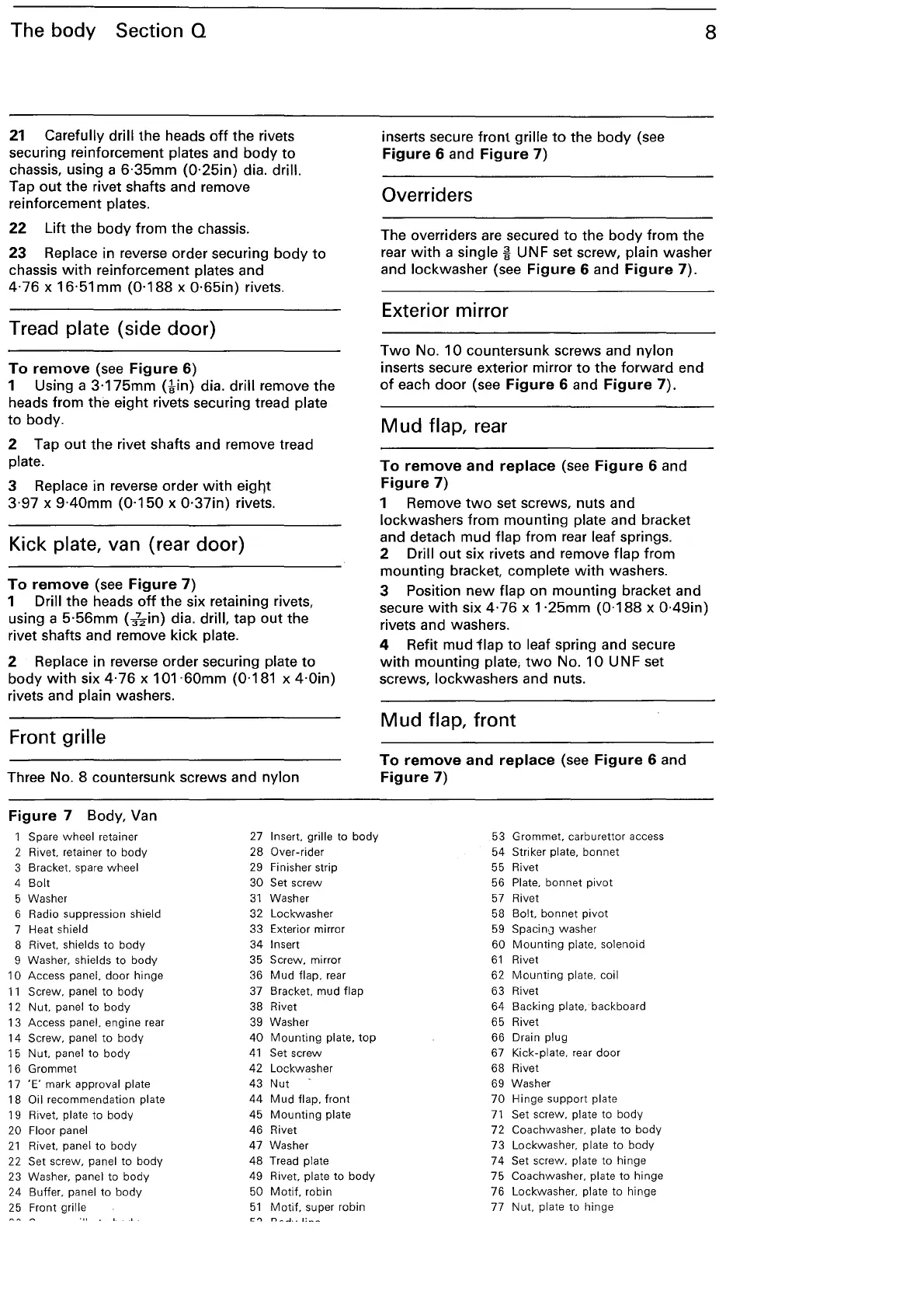

The
body
Section Q
21
Carefully drill the heads
off
the rivets
securing reinforcement
plates and
body
to
chassis, using a 6·35mm
(0·25in)
dia. drill.
Tap
out
the rivet shafts and remove
reinforcement
plates.
22
Lift the
body
from the chassis.
23
Replace in reverse order securing
body
to
chassis
with
reinforcement plates and
4·76
x 16·51 mm
(0·188
x
0·65in)
rivets.
Tread plate (side
door)
To
remove
(see
Figure
6)
1 Using a
3·175mm
(1Jin)
dia. drill remove the
heads from
the eight rivets securing tread plate
to
body.
2 Tap
out
the rivet shafts and remove tread
plate.
3 Replace in reverse order
with
eig~t
3·97 x 9·40mm
(0·150
x
0·37in)
rivets.
Kick plate, van (rear
door)
To
remove
(see
Figure
7)
1 Drill the heads
off
the six retaining rivets,
using a 5·56mm (
3
7
2
in) dia. drill, tap out the
rivet shafts and remove kick
plate.
2 Replace in reverse order securing plate
to
body
with
six
4·76
x
101·60mm
(0·181 x
4·0in)
rivets and plain washers.
Front grille
Three No. 8 countersunk screws and nylon
Figure
7 Body, Van
Spare wheel retainer
2 Rivet. retainer
to
body
3 Bracket. spare wheel
4
Bolt
5 Washer
6 Radio suppression
shield
7 Heat shield
8 Rivet. shields
to
body
9 Washer, shields
to
body
10
Access panel, door hinge
11
Screw. panel
to
body
12 Nut. panel
to
body
13
Access panel. engine rear
14
Screw, panel
to
body
15
Nut. panel
to
body
16
Grommet
17 'E' mark
approval plate
18
Oil recommendation plate
19
Rivet, plate
to
body
20 Floor panel
21
Rivet, panel
to
body
22
Set screw, panel
to
body
23
Washer, panel
to
body
24 Buffer. panel
to
body
25
Front grille
27 Insert. grille to
body
28 Over-rider
29
Finisher strip
30 Set screw
31
Washer
32 Lockwasher
33 Exterior mirror
34
Insert
35 Screw, mirror
36
Mud
flap, rear
37 Bracket. mud
flap
38 Rivet
39
Washer
40
Mounting
plate.
top
41
Set screw
42
Lockwasher
43
Nut
44
Mud
flap.
front
45
Mounting
plate
46
Rivet
47
Washer
48
Tread plate
49 Rivet. plate
to
body
50
Motif.
robin
51
Motif.
super robin
inserts secure
front
grille
to
the
body
(see
Figure
6 and
Figure
7)
Overriders
8
The overriders are secured
to
the
body
from the
rear
with
a
single~
UNF set screw, plain washer
and
lockwasher (see
Figure
6 and
Figure
7).
Exterior mirror
Two
No. 1 0 countersunk screws and nylon
inserts secure exterior mirror
to
the forward end
of
each door (see
Figure
6 and
Figure
7).
Mud
flap, rear
To
remove
and
replace
(see
Figure
6 and
Figure
7)
1 Remove
two
set screws, nuts and
lockwashers from mounting plate and bracket
and detach mud
flap from rear leaf springs.
2
Drill out six rivets and remove flap from
mounting bracket, complete
with
washers.
3 Position
new
flap on mounting bracket and
secure
with
six
4·76
x
1·25mm
(0·188
x
0·49in)
rivets and washers.
4 Refit
mud
ilap
to
leaf spring and secure
with
mounting plate,
two
No.
10
UNF set
screws,
lockwashers and nuts.
Mud
flap,
front
To
remove
and
replace
(see
Figure
6 and
Figure
7)
53
Grommet, carburettor access
54
Striker plate,
bonnet
55
Rivet
56
Plate. bon net
pivot
57 Rivet
58
Bolt, bonnet
pivot
59 SpacinG washer
60
Mounting
plate. solenoid
61
Rivet
62
Mounting
plate. coil
63 Rivet
64
Backing
plate, backboard
65 Rivet
66
Drain
plug
67
Kick-plate. rear door
68 Rivet
69
Washer
70
Hinge support plate
71
Set screw. plate to body
72
Coachwasher. plate
to
body
73 Lockwasher, plate
to
body
74
Set screw. plate
to
hinge
75
Coachwasher. plate
to
hinge
76 Lockwasher,
plate
to
hinge
77 Nut.
plate
to
hinge
