Electrics Section T
Stop tail, rear indicator lamps
Access
to
the bulbs
of
the rear lamp cluster is
obtained by removing
two
cross head screws
and
li
ft
ing
off
the lens assembly from the lamp
body.
To
remove
(see
Figure
15
)
1 From underneath the
vehicle disconnect the
rear
lamp leads from the
wiring
harness.
2 Remove
lens and release indicator and
stop/ tail bulbs to prevent possible damage
during next operation.
3 Unscrew four tapp
it
fixings and remove rear
lamp
unit
from the
body
.
4
Replace in reverse order. Note: Before
refitting the
unit
it will be necessary to pu
sh
the
nylon inserts back
into
the base
of
the lamp
body
to close
up
the claws
of
the inserts.
Number plate lamp
Access
to
the bulb is gained by removing
two
cross head screws, securing the chrome bezel

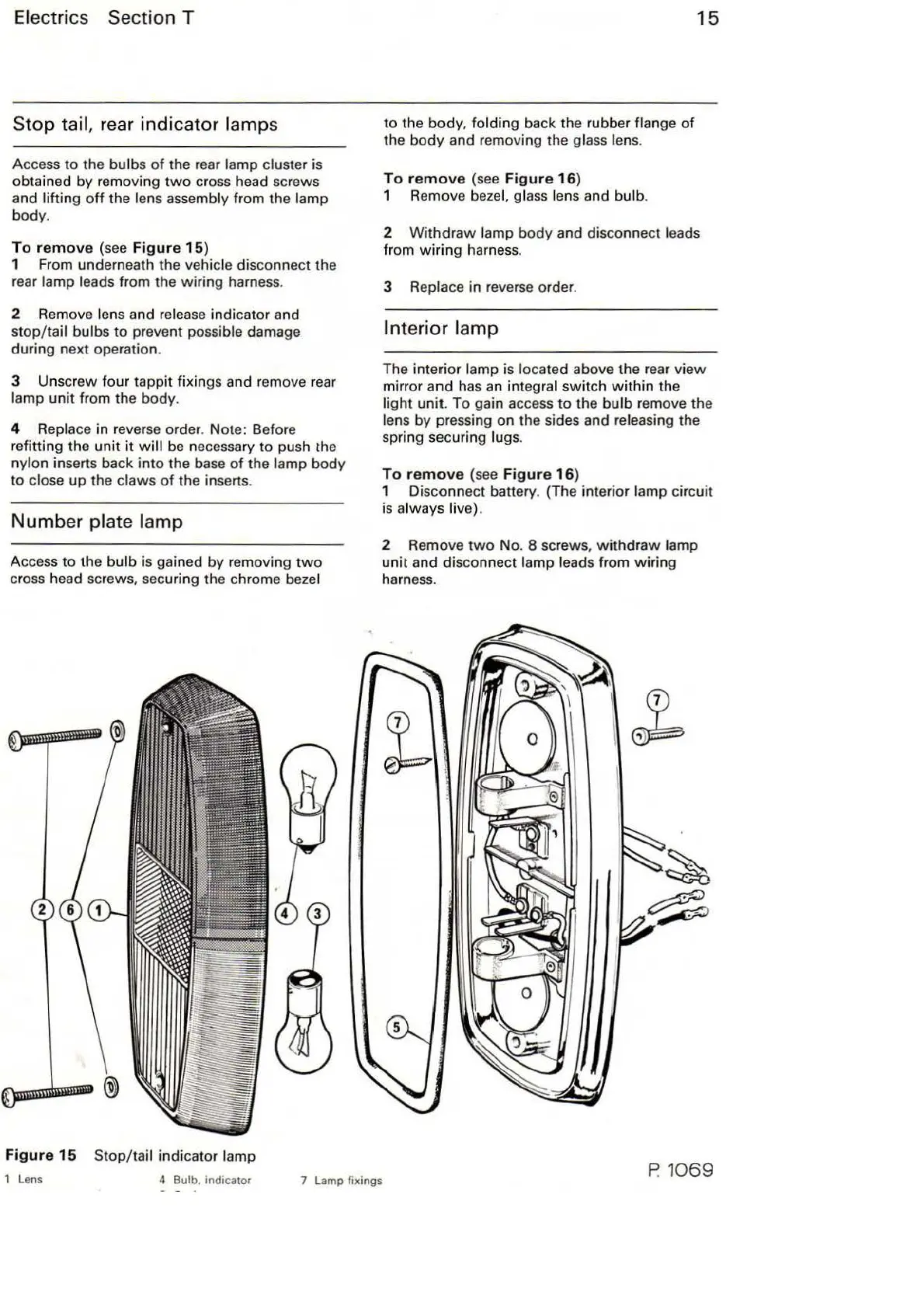

Figure
15
Stop/ta
il
indicator lamp
to
the body, folding back the rubber flange
of
the
body
and removing the glass lens.
To
remov
e (see
Figure
16
)
1 Remove
bezel, glass lens and bulb.
15
2
Withdraw
lamp
body
and disconnect leads
from
wiring
harness.
3
Replace in reverse order.
Interior lamp
The interior lamp is located above the rear
view
mirror and has an integral switch
within
the
light unit.
To
gain access
to
the
bulb
remove the
lens by pressing
on
the sides and
re
leasing the
spring securing
lugs.
To
remove
(see
Figure
16
)
1 Disconnect battery. (The interior
lamp circu
it
is a
lw
ays live).
2 Remove
two
No. 8 screws, withd
ra
w lamp
unit
and
di
scon
ne
ct
lamp leads from wiring
harness.
1 Lens 4 Bulb. indtcator
7 Lamp ftxings
P1069
