The
interior
Section R
Front seats
Seat
adjustment
Both front
sea
ts are ad
jus
table
for
reach. Raise
the
lever, located on the inside
of
the seat and
hold the lever in the raised position
while
the
seat is readjusted to one
of
the
four
available
positions. The lever is spring loaded and
will
automatically re-lock when released.
To
remove
front
seats
(see
Figure
1)
1 Remove
two?.
UNF set screws, lockwashers,
coachwashers and nuts and remove inner and
outer saddle clips securing seat front
leg and
mounting plate
to
body
.
2 Unhook adjuster lever return spring.
F
igure

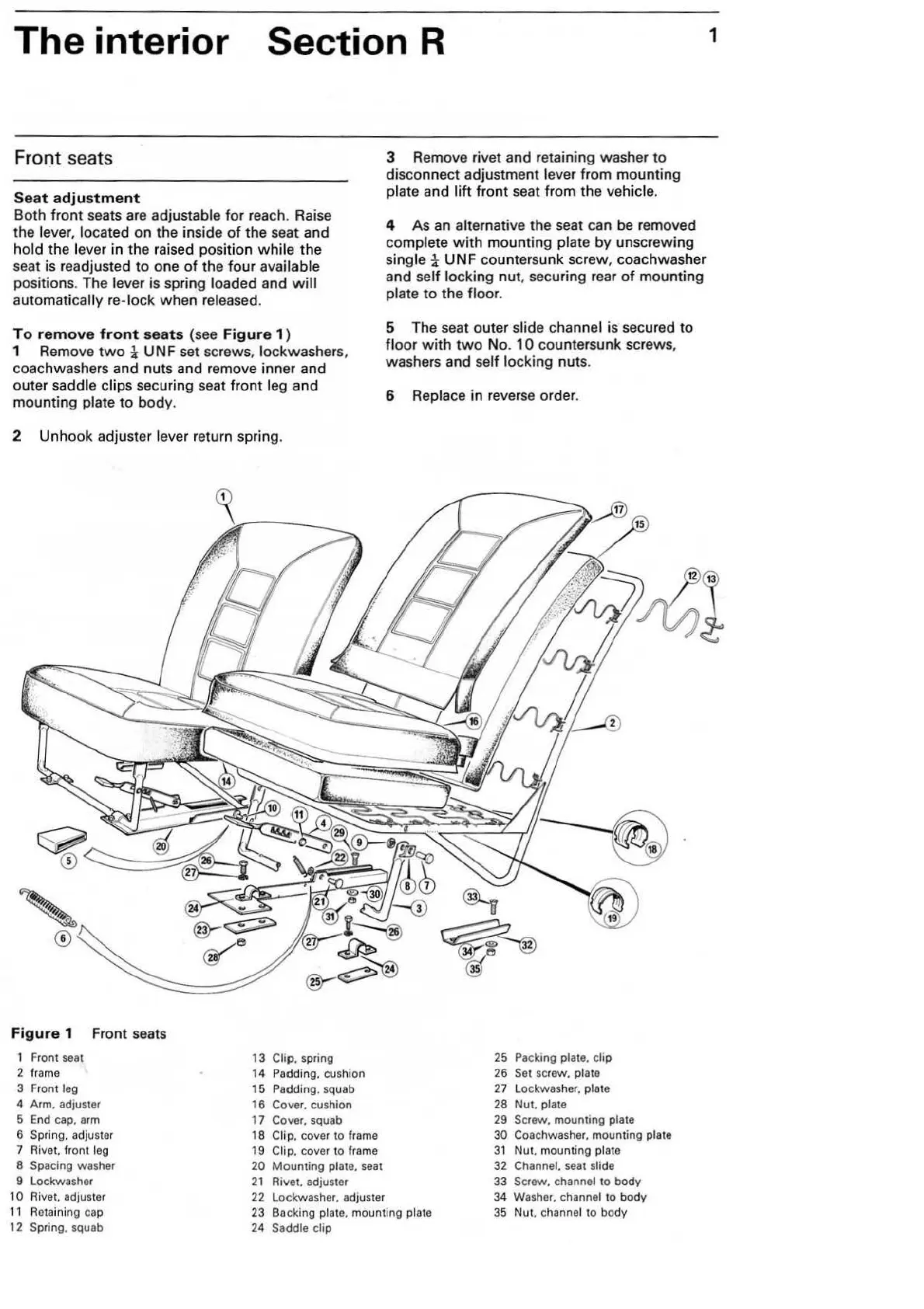

1 Front seats
Front seat
2 frame
3 Fr
ont
l
eg
4 Arm. adjuster
5
End
cap.
arm
6 Sprin
g.
adjuster
7 Rivet. front leg
8 Spacing washer
9 Lockwasher
13
Ch
p. spring
14
Paddin
g.
cushion
15
Padding. squab
16
Cover. cushion
17
Cover. squab
18
Clip. cover to frame
19
Clip. cover to frame
20
Mounting plate. seat
21
Rivet. adjuster
22 Lockwasher. adjuster
3 Remove rivet and retaining washer
to
disconnect adjustment lever from mounting
plate and
l
ift
front seat from the vehicle.
4
As
an alternative the seat can
be
removed
complete
with
mounting plate by unscrewing
single?.
UNF
countersunk screw, coachwasher
and
self locking
nut
, securing rear
of
mounting
plate to the floor.
5 The seat outer slide channel is secured to
floor
with
two
No. 1 0 countersunk screws,
washers and
sel
f locking nuts.
6 Replace
in
rever
se
order.
25 Packing plate. clip
26
Se
t screw. pl
ate
27
Lockwash
er.
plate
28 Nut. plate
29
Screw. mounting plate
30
Coachwasher. mounting plate
31 Nut. mounting plate
32
Channel. seat slide
10
Rivet. adjuster
11
Retaining cap
12
Spring. squab
23 Backing plate. mounting plate
24
Saddle clip
33 Screw. channel
to
body
34 Washer. channel to body
35 Nut. channel to body
