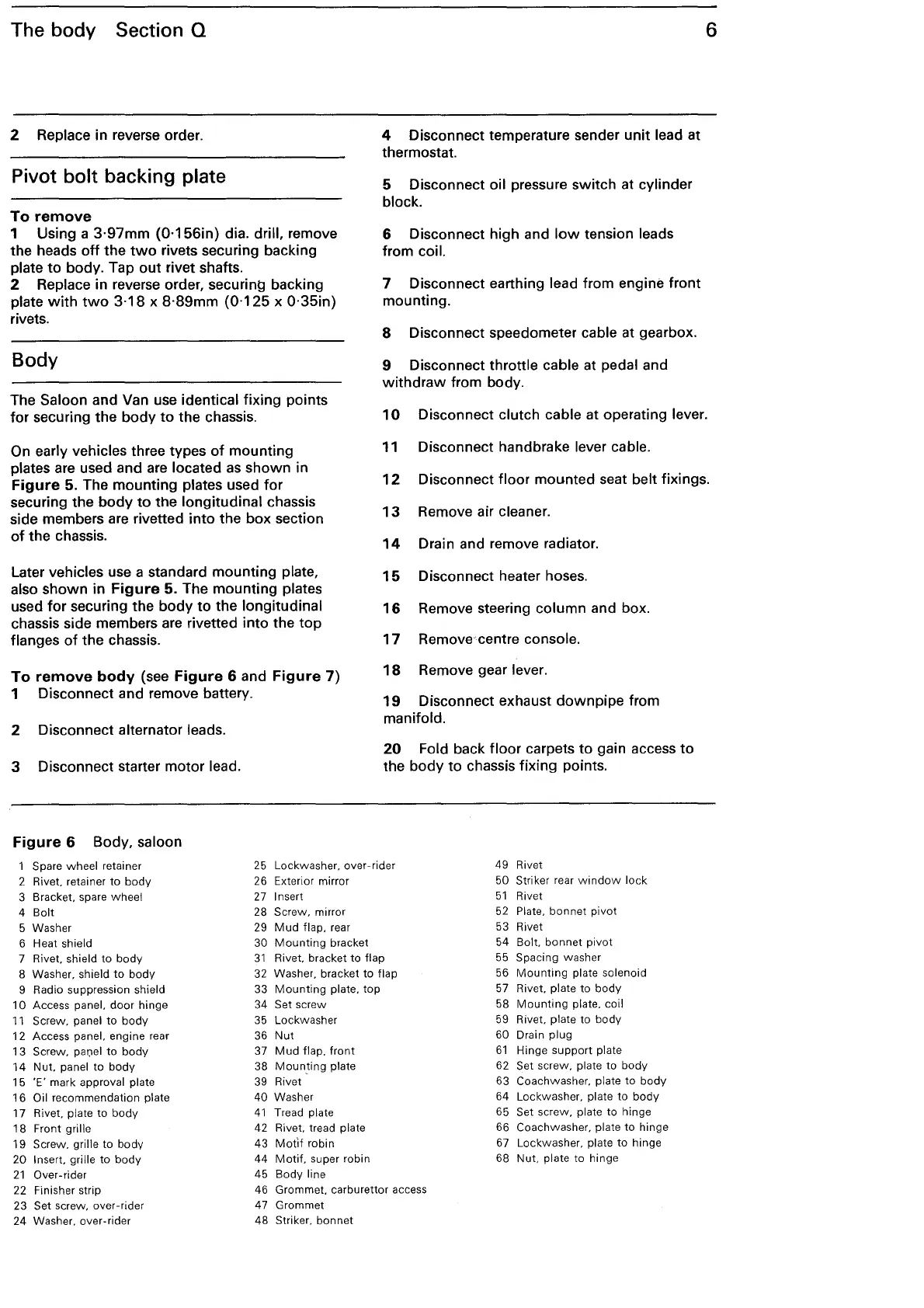

The body Section 0
2 Replace in reverse order.
Pivot
bolt
backing plate
To
remove
1 Using a 3·97mm
(0·156in)
dia. drill, remove
the heads
off
the
two
rivets securing backing
plate
to
body. Tap
out
rivet shafts.
2 Replace in reverse order, securing backing
plate
with
two
3·18
x 8·89mm
(0·125
x
0·35in)
rivets.
Body
4 Disconnect temperature sender
unit
lead at
thermostat.
5 Disconnect oil pressure switch at cylinder
block.
6 Disconnect high and
low
tension leads
from coil.
7 Disconnect earthing lead from engine front
mounting.
8 Disconnect speedometer cable at gearbox.
9 Disconnect throttle cable at pedal and
withdraw
from body.
6
The Saloon and Van use identical fixing points
for securing
the
body
to
the chassis.
10
Disconnect clutch cable at operating lever.
On early vehicles three types
of
mounting
plates are used and are located
as
shown
in
Figure
5. The mounting plates used
for
securing
the
body
to
the longitudinal chassis
side members are rivetted
into
the box section
of
the
chassis.
Later vehicles use a standard mounting
plate,
also
shown
in
Figure
5. The mounting plates
used
for
securing the
body
to
the longitudinal
chassis side members are rivetted
into
the
top
flanges
of
the
chassis.
To
remove
body
(see
Figure
6 and
Figure
7)
1 Disconnect and remove battery.
2 Disconnect alternator leads.
3 Disconnect starter motor lead.
Figure
6 Body, saloon
11
Disconnect handbrake lever cable.
12
Disconnect floor mounted seat belt fixings.
13
Remove air cleaner.
14
Drain and remove radiator.
15
Disconnect heater hoses.
16
Remove steering column and box.
17
Remove centre console.
18
Remove gear lever.
19
Disconnect exhaust
downpipe
from
manifold.
20
Fold back floor carpets
to
gain access
to
the
body
to
chassis fixing points.
1 Spare wheel retainer
25
Lockwasher. over-rider
49 Rivet
2 Rivet. retainer
to
body
3 Bracket. spare wheel
4 Bolt
5 Washer
6 Heat shield
7 Rivet. shield
to
body
8 Washer. shield
to
body
9 Radio suppression shield
1
0 Access panel.
door
hinge
11
Screw. panel
to
body
12 Access panel. engine rear
13
Screw. pa!)el
to
body
14
Nut. panel
to
body
15 'E' mark approval plate
16
Oil recommendation plate
17 Rivet. plate to
body
18
Front grille
19 Screw. grille to body
20 Insert. grille
to
body
21
Over-rider
22 Finisher strip
23
Set screw. over-rider
24 Washer. over-rider
26
Exterior mirror
27
Insert
28
Screw. mirror
29
Mud
flap. rear
30
Mounting
bracket
31
Rivet. bracket
to
flap
32
Washer. bracket
to
flap
33
Mounting
plate.
top
34 Set screw
35
Lockwasher
36
Nut
37
Mud
flap.
front
38
Mounting
plate
39
Rivet
40
Washer
41
Tread plate
42 Rivet. tread plate
43
Mot.if robin
44
Motif.
super robin
45
Body
line
46
Grommet. carburettor access
47 Grommet
48
Striker, bonnet
50 Striker rear
window
lock
51
Rivet
52
Plate.
bonnet
pivot
53
Rivet
54 Bolt.
bonnet
pivot
55
Spacing washer
56
Mounting
plate solenoid
57
Rivet. plate
to
body
58
Mounting
plate. coil
59
Rivet. plate
to
body
60 Drain plug
61
Hinge support plate
62
Set screw. plate
to
body
63 Coachwasher. plate
to
body
64 Lockwasher. plate
to
body
65
Set screw. plate to hinge
66
Coachwasher. plate
to
hinge
67
Lockwasher. plate
to
hinge
68
Nut, plate to hinge
