Reliant SUPER ROBIN - Bonnet

The body Section Q
I
I

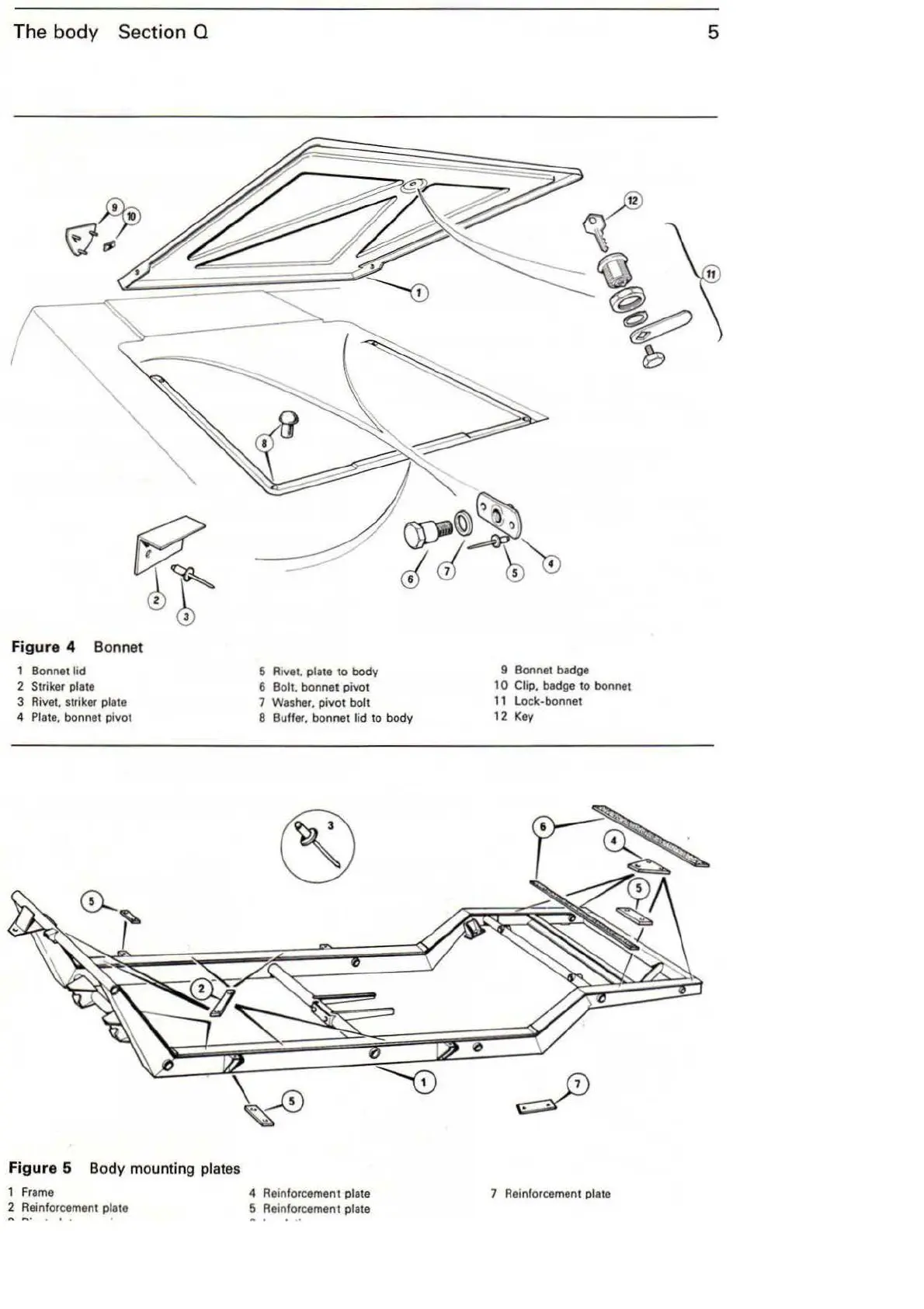

F igu re 4 Bonnet
1 Bonnet hd
2 Striker plate
3 Rivet. striker plate
4 Plate. bonnet pivot
Fig ur e 5 Body mounting plates
Frame
2 Reinforcement plate
6 RIYel. plate to body
6 Bolt. bonnet pivot
7 Washer. pi vot bolt
8 Bu ff er. bonnet lid to body
4
Re.nforcement plate
6 Reinforcement plate
9 Bonnet badge
10 Clip. badge to bonnet
11 Lock-bonnet
12 Key
7 Rein forcement plate
5
