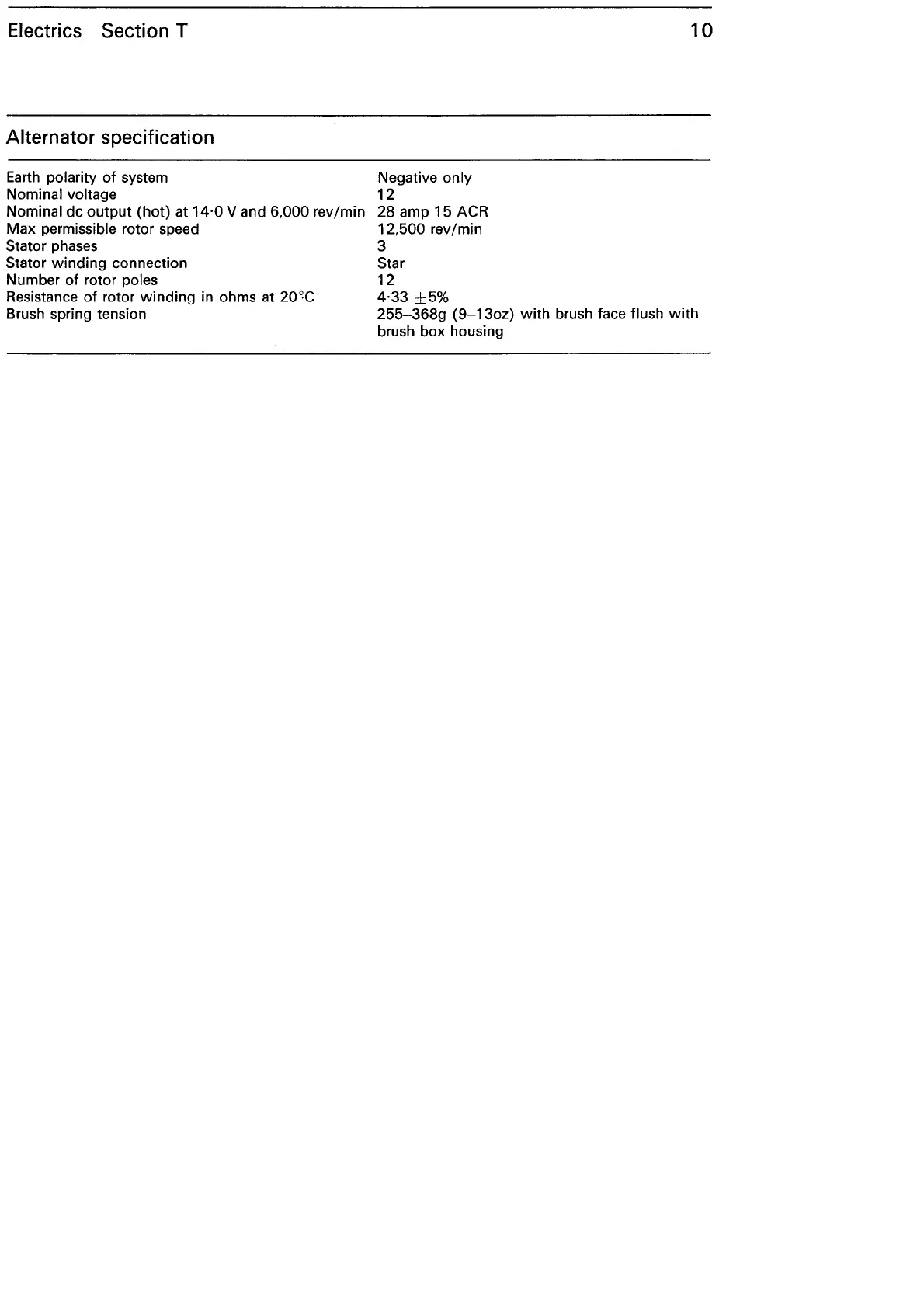

Electrics Section T
Alternator specification
Earth polarity
of
system
Nominal voltage
Nominal
de
output
(hot) at
14·0
V and 6,000 rev/min
Max
permissible rotor speed
Stator phases
Stator
winding
connection
Number
of
rotor poles
Resistance
of
rotor
winding
in ohms at
20~C
Brush spring tension
Negative
only
12
28 amp 15 ACR
12,500
rev/min
3
Star
12
4·33
±5%
10
255-368g
(9-13oz)
with
brush face flush
with
brush box housing
