4

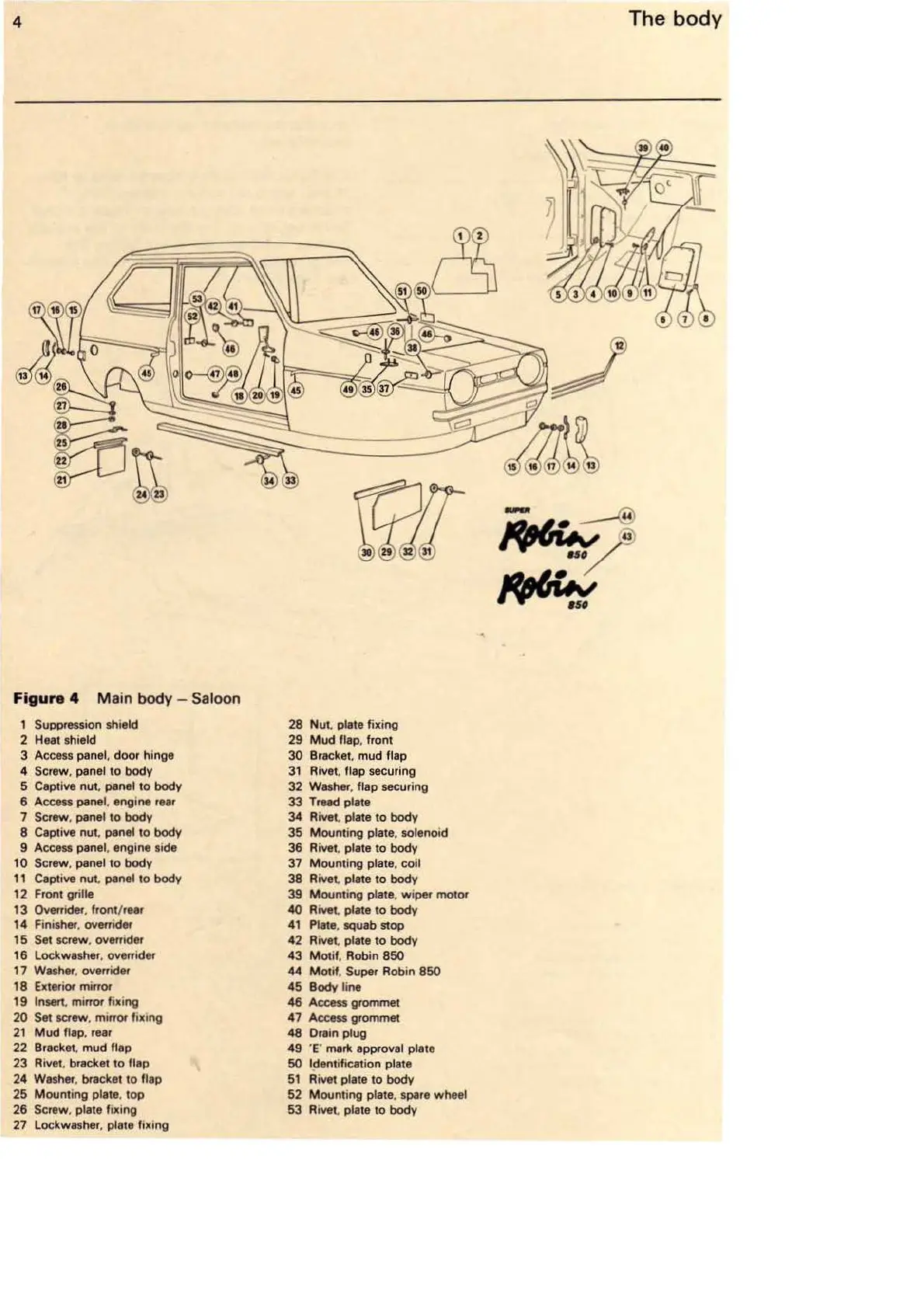

Figure
4 Main
body
-
Sa
loon
1 Suppression shield
2 Heat shield
3 Access panel, door hinge
4 Screw, panel to body
5 Captive
nut
panel
to
body
6 Access panel. engine
rear
7 Screw. panel
to
body
8 Captive
nut
panel to body
9 Access panel, engine side
10 Screw, panel
to
body
11
Captive
nut
. panel to body
12
Front grille
13
Overrlder. front/rear
14
Finisher.
overr1der
15
Set
screw. ovemder
16
Lockwasher. ovemder
17 Washer. overrider
18 Exterior mirror
19
Insert. mirror fuung
20
Set screw.
m1rror
fuung
21
Mud
flap,
rear
22 Bracket mud flap
23 Rivet. bracket to flap
24 Washer. bracket to flap
25 Mounting plate. top
26 Screw. plate fixing
27 Lockwasher, plate fixing
rf?l!
28
Nut
. plate fixing
29
Mud
flap. front
30
Bracket. mud flap
31 Rivet. flap securing
32 Washer, flap securing
33
Tread plate
34
Rivet
plate
to
body
35
Mounting plate. solenoid
36 Rivet. plate
to
body
37 Mounting plate. coil
38
Rivet plate
to
body
39
Mounting plate. wiper motor
40
R
ivet
plate
to
body
41
Plate, squab
stop
42
R
ivet
plate
to
body
43 Motif. Robin 850
44 Motif. Super Robin 850
45
Body line
46
Access grommet
47 Access grommet
48
Drain plug
49
'E' mark approval plate
50 Identificat
io
n plate
51
Rivet plate
to
body
52
Mounting plate. spare wheel
53
Rivet. plate to body
The body
