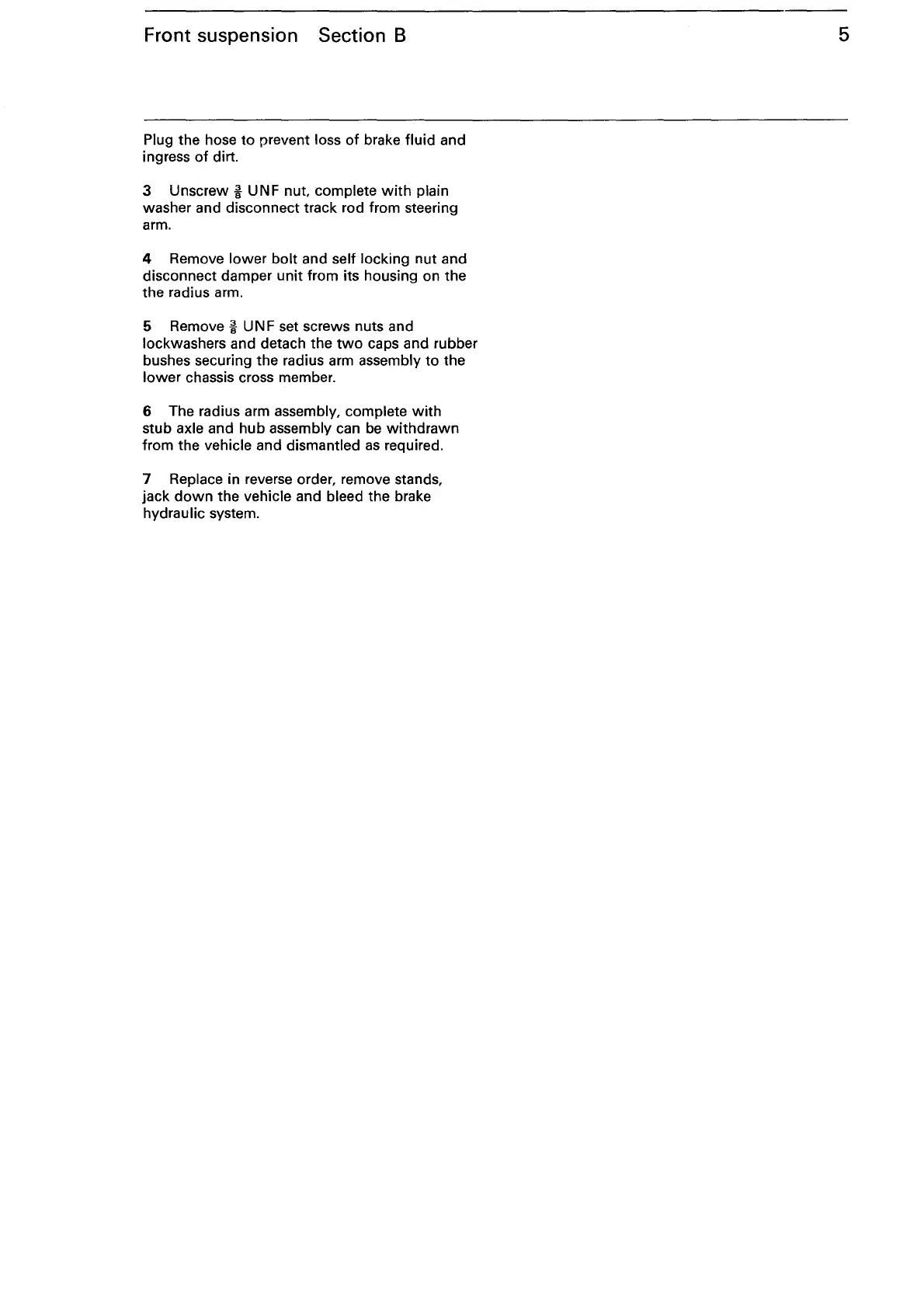

Front suspension Section B
Plug the hose
to
prevent loss
of
brake fluid and
ingress
of
dirt.
3 Unscrew
i UNF nut, complete
with
plain
washer and disconnect track rod from steering
arm.
4 Remove lower bolt and self locking nut and
disconnect damper unit from its housing on the
the radius arm.
5 Remove
i UN F set screws nuts and
lockwashers and detach the
two
caps and rubber
bushes securing the radius arm assembly
to
the
lower
chassis cross member.
6 The radius arm assembly, complete
with
stub axle and hub assembly can
be
withdrawn
from the vehicle and dismantled
as
required.
7 Replace in reverse order, remove stands,
jack
down
the vehicle and bleed the brake
hydraulic system.
5
