Reliant SUPER ROBIN - Page 186

Electrics Section T
~
, ~~~\:)
. 2
9

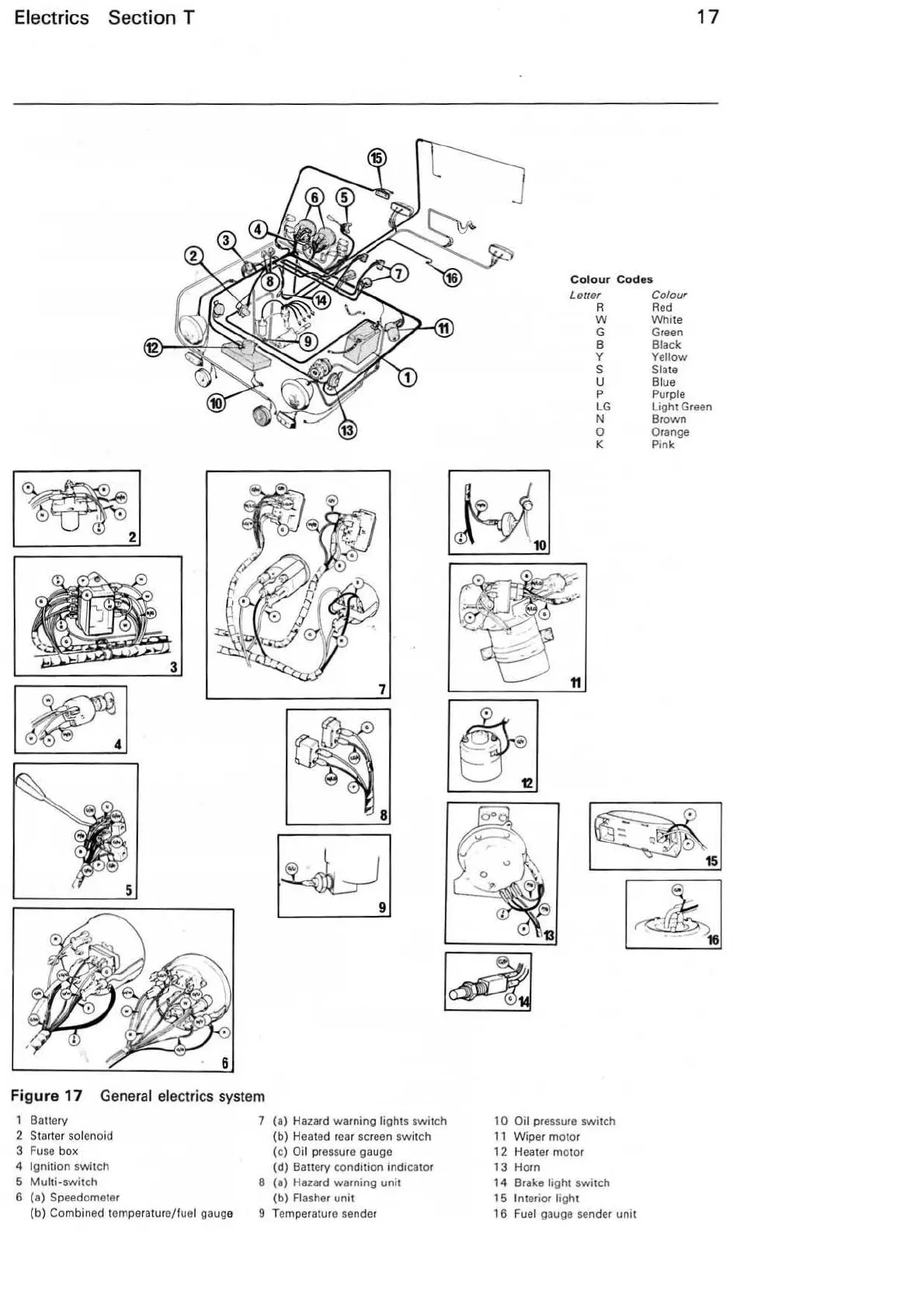

Fig ur e 17
1 Battery
General electrics system
7 (a) Hazard warning lights SWitCh
(b) Heated roar screen switch
(c)
Oil pressure gauge
2
Starter solenoid
3
Fuse box
4
Ignition switch
5
Multi-switch
6 (a) Speedometer
(b) Combined temperature/fuel gauge
(d) Battery condition indicator
8 (a) Hazard warning
unit
(b) Flasher unit
9 Temperature sender
17
Colour Codes
Letter
R
w
G
B
y
s
u
p
LG
N
0
K
Colour
Red
White
Green
Black
Yellow
Sla te
Blue
Purple
Light Green
Brown
Orange
Pmk
~
15
1 0 Oil pressure switch
11 Wiper motor
12 Heater motor
13 Horn
14 Brake hght switch
15
lntenor light
16 Fuel gauge sender unit
