Reliant SUPER ROBIN - Cylinder Head Removal

The engine Section F 8
P1016

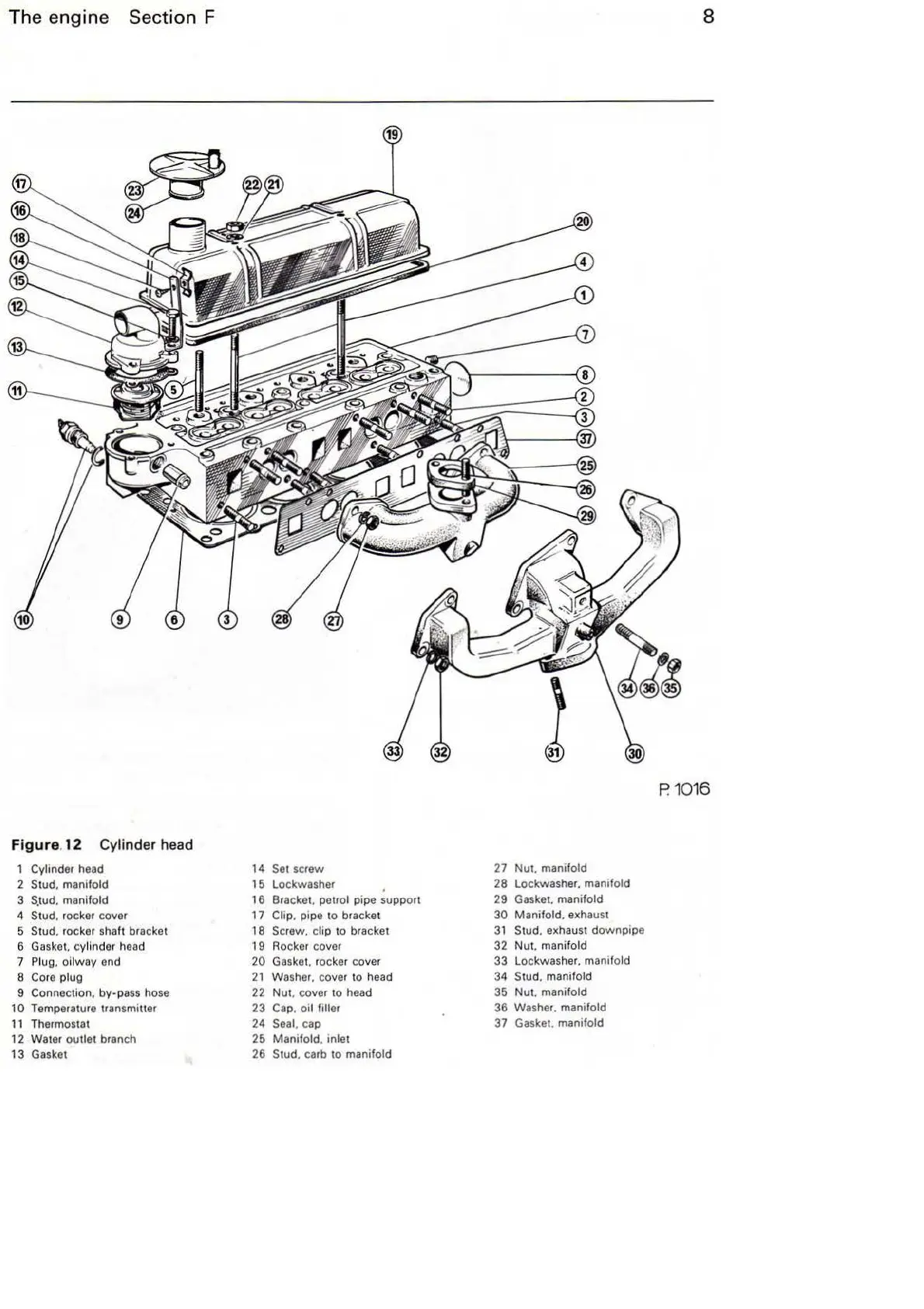

Figure .12 Cylinder head
1
Cylinder head 14 Set screw
27 Nut.
manifold
2
Stud. manifold 15 Lockwasher
28 Lockwasher. mamfold
3
S.tud. manifold 16 Bracket. petrol pipe support 29
Gasket.
manifold
4 Stud. rocker cover
17 Clip. pipe to bracket 30 Manifold. exhaust
5
Stud. rocker sha ft bracket 18 Screw. clip to bracket
31
Stud. exhaust downpipe
6
Gasket.
cylinder h ead 19 Rocker cover
32 Nut. manifold
7
Plu g, ollway end 20 Gasket. rocker co ve r 33
Lockwasher. manifold
8 Core plug
21 Washer. cover to h ead
34 Stud. manifold
9 Connection. by-p ass hose
22
Nut. cover to head
36 Nut.
manifold
10 Temperature transmitter 23 Cap. oi l filler
36 Washer. manifold
1 1 Th ermostat 24 Seal. cap
37 Gasket. manifold
12 Water outlet branch 26 Manifold. inlet
13 Gasket 26 Stud. carb to manifold
