RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 194

Sep 22, 2011

For example, figures 4-20 to 4-26 show block diagrams of port 4 for 128-pin products when PIOR = 00H.

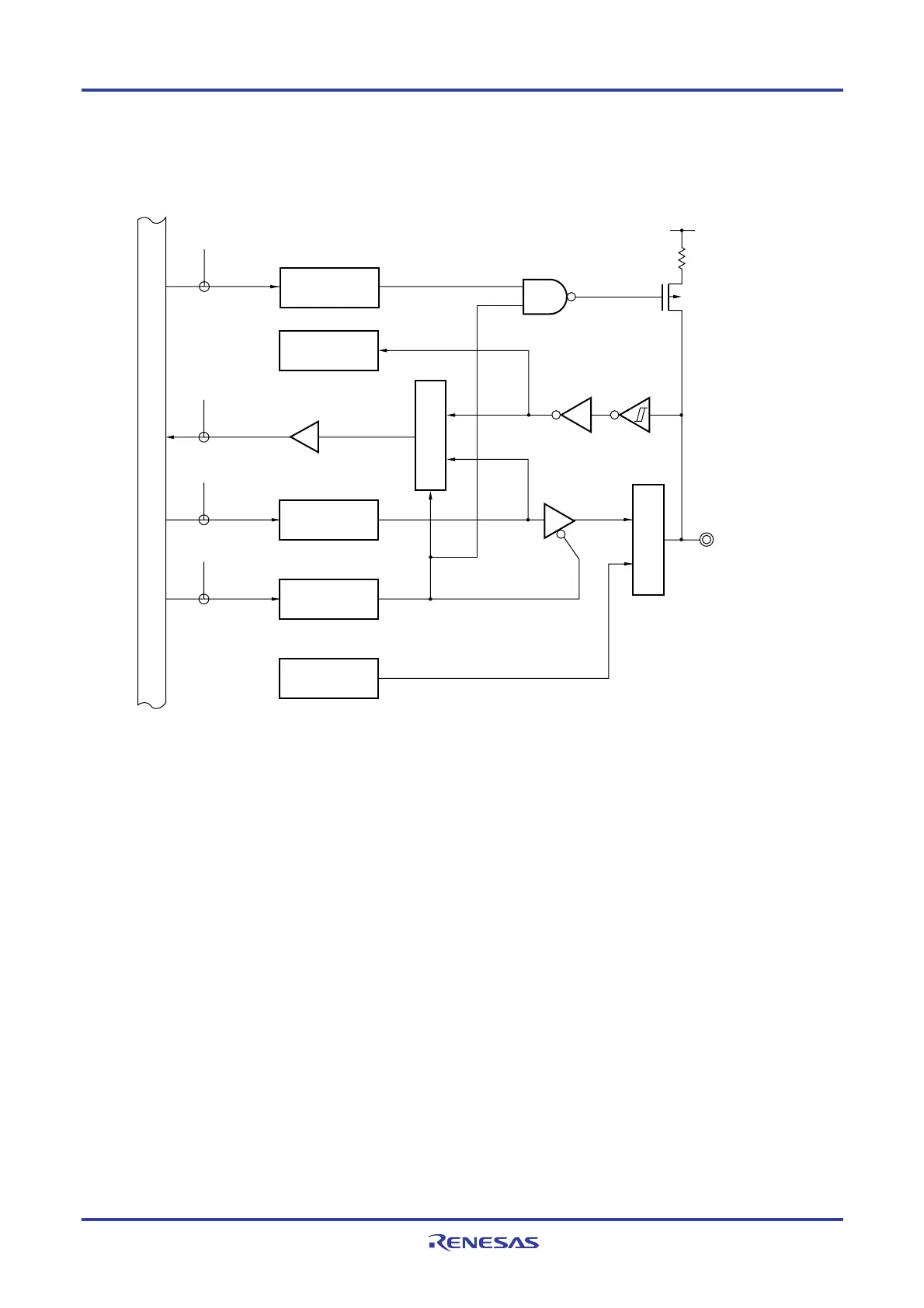

Figure 4-20. Block Diagram of P40

P40/TOOL0

PORT

PM4

P-ch

PU4

PM40

PU40

Output latch

(P40)

Selector

Alternate

function

Alternate

function

Internal bus

P4: Port register 4

PU4: Pull-up resistor option register 4

PM4: Port mode register 4

RD: Read signal

WR××: Write signal
